Toyota Truck
>>
2008
>>
Sienna AWD V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Service and Repair
>>
Removal and Replacement
>>
Direct Clutch
Direct Clutch

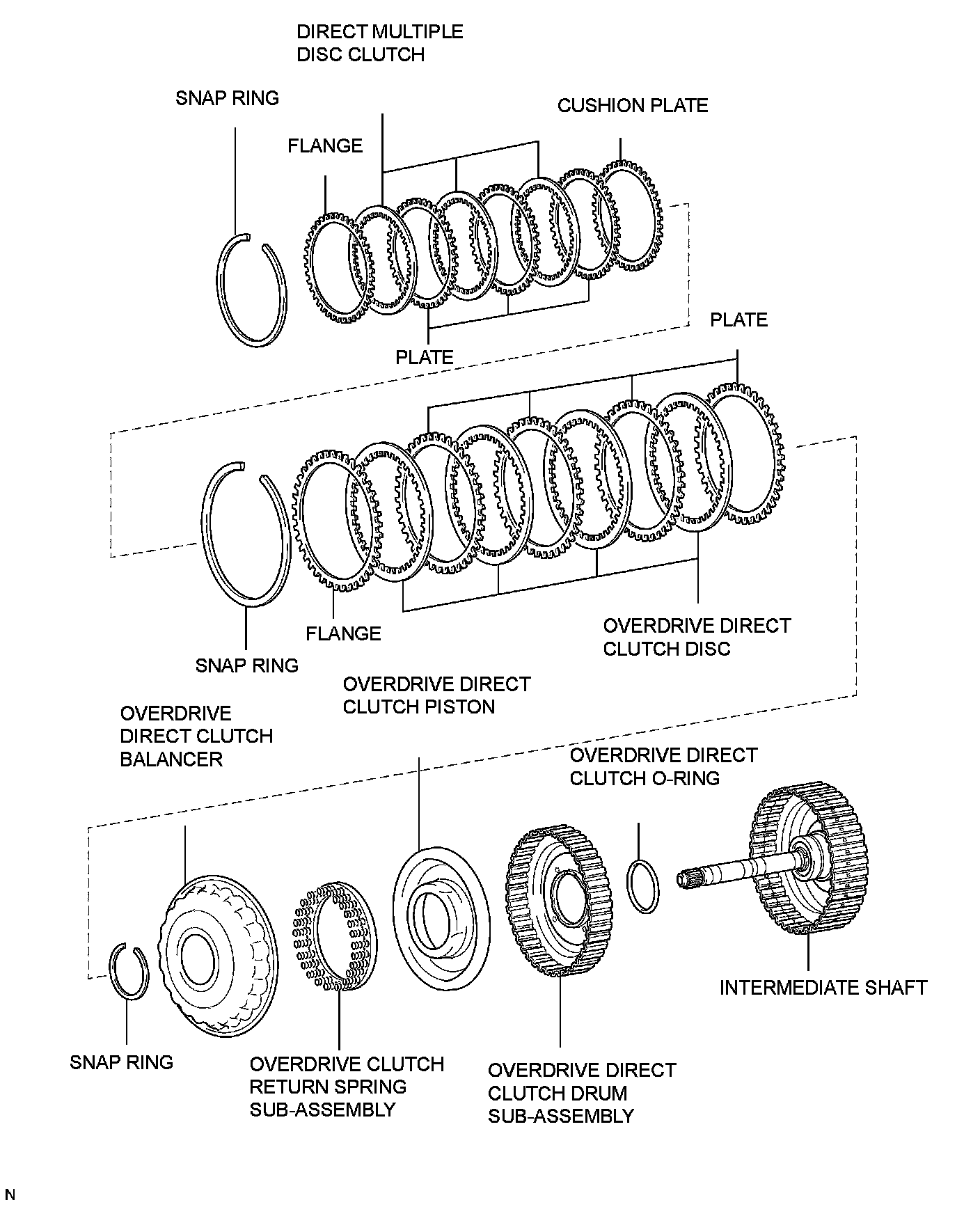

U151F AUTOMATIC TRANSAXLE: DIRECT CLUTCH: COMPONENTS
COMPONENTS
ILLUSTRATION
