Part 3

U151F AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE UNIT: REASSEMBLY

REASSEMBLY - Continued

71. INSTALL TRANSAXLE CASE NO.1 PLUG

(a) Coat 4 new O-rings with ATF, and install them to the 4 transaxle case No.1 plugs.
(b) Install the 4 transaxle case No.1 plugs to the transaxle case.
Torque: 7.4 Nm (75 kgf-cm, 65 in-lbf)

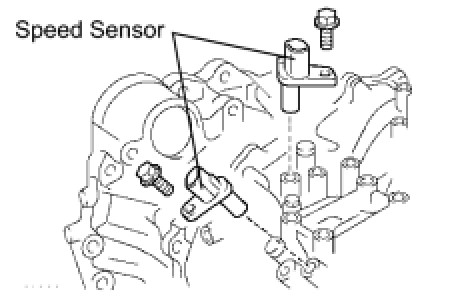

72. INSTALL SPEED SENSOR

(a) Coat 2 new O-rings with ATF and install them to the 2 sensors.
(b) Install the 2 sensors to the transaxle case with the 2 bolts.
Torque: 11.0 Nm (115 kgf-cm, 8 ft-lbf)
73. INSTALL OIL COOLER TUBE UNION (OUTLET OIL COOLER UNION)

(a) Coat a new O-ring with ATF, and install it to the elbow.
(b) Install the elbow to the transaxle case.
Torque: 27 Nm (276 kgf-cm, 20 ft-lbf)
74. INSTALL OIL COOLER TUBE UNION (INLET OIL COOLER UNION)

(a) Coat a new O-ring with ATF, and install it to the union.
(b) Install the union to the transaxle case.
Torque: 25 Nm (255 kgf-cm, 18 ft-lbf)
75. INSTALL BREATHER PLUG HOSE
(a) Install the breather plug hose to the transaxle case firmly.
76. INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY

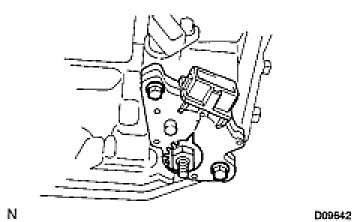

(a) Install the park/neutral position switch onto the manual valve lever shaft, and temporarily install the 2 adjusting bolts.
(b) Install a new nut stopper and nut.
Torque: 6.9 Nm (70 kgf-cm, 61 in-lbf)

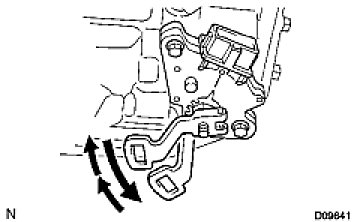

(d) Turn the lever counterclockwise until it stops, and then turn it clockwise 2 notches.

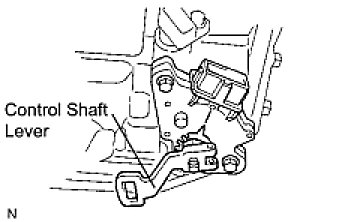

(e) Remove the control shaft lever.

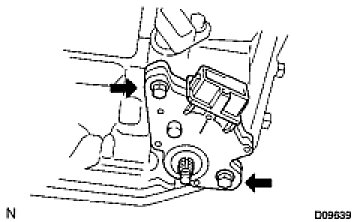

(f) Align the groove with the neutral basic line.
(g) Tighten the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)

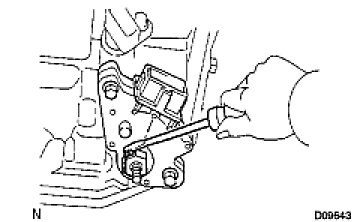

(h) Using a screwdriver, stake the nut with the nut stopper.

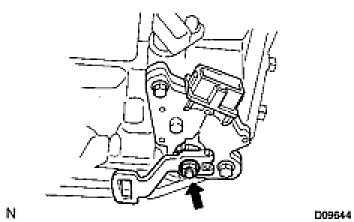

(i) Install the control shaft lever, washer and nut.
Torque: 13 Nm (130 kgf-cm, 9 ft-lbf)
77. INSTALL SPEEDOMETER DRIVEN HOLE (ATM) COVER SUB-ASSEMBLY
(a) Coat a new O-ring with ATF and install it to the speedometer driven hole cover.
(b) Install the bolt and speedometer driven hole cover sub assembly to the transaxle assembly.
Torque: 6.9 Nm (70 kgf-cm, 61 in-lbf)
