Fuse: Application and ID

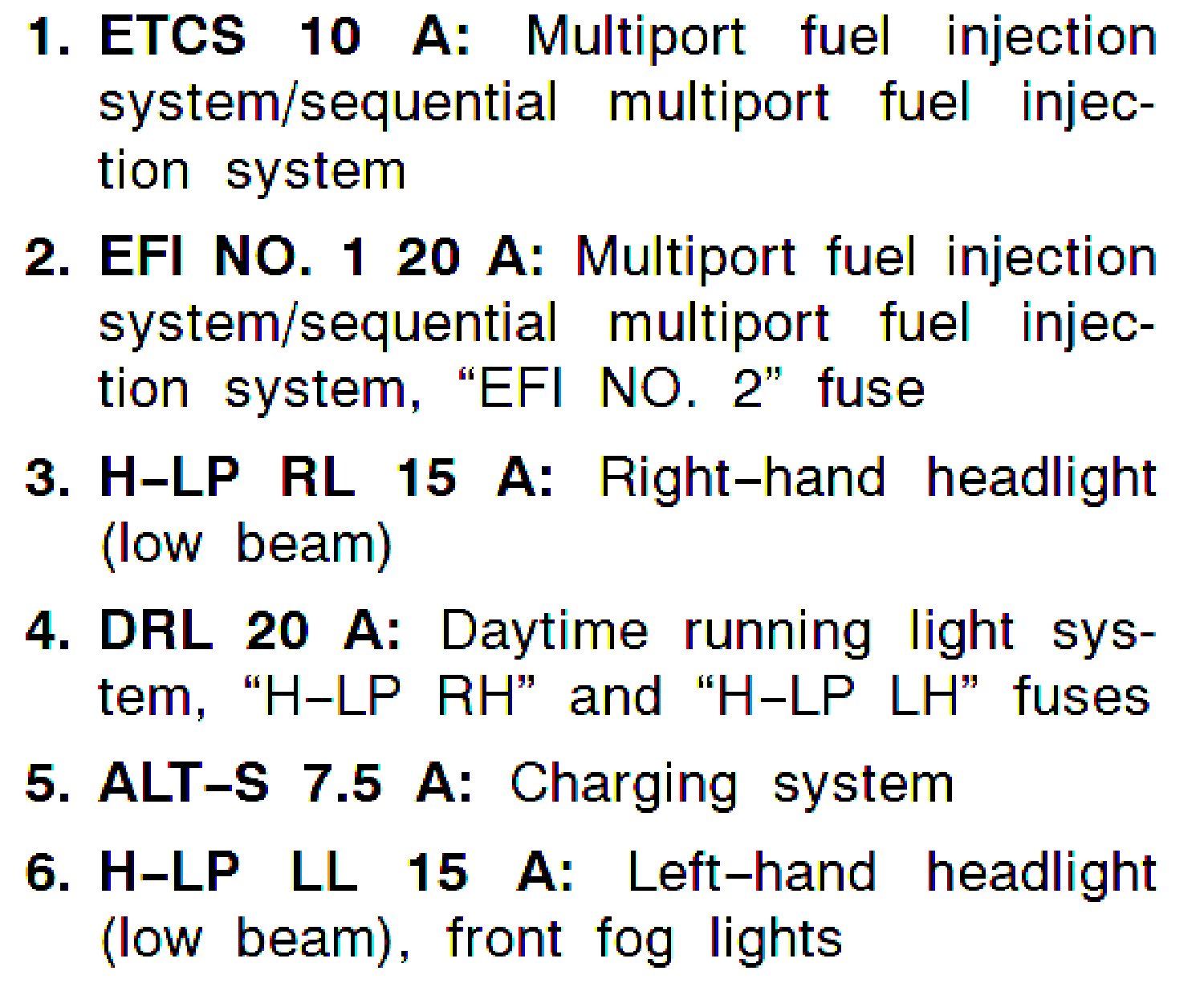

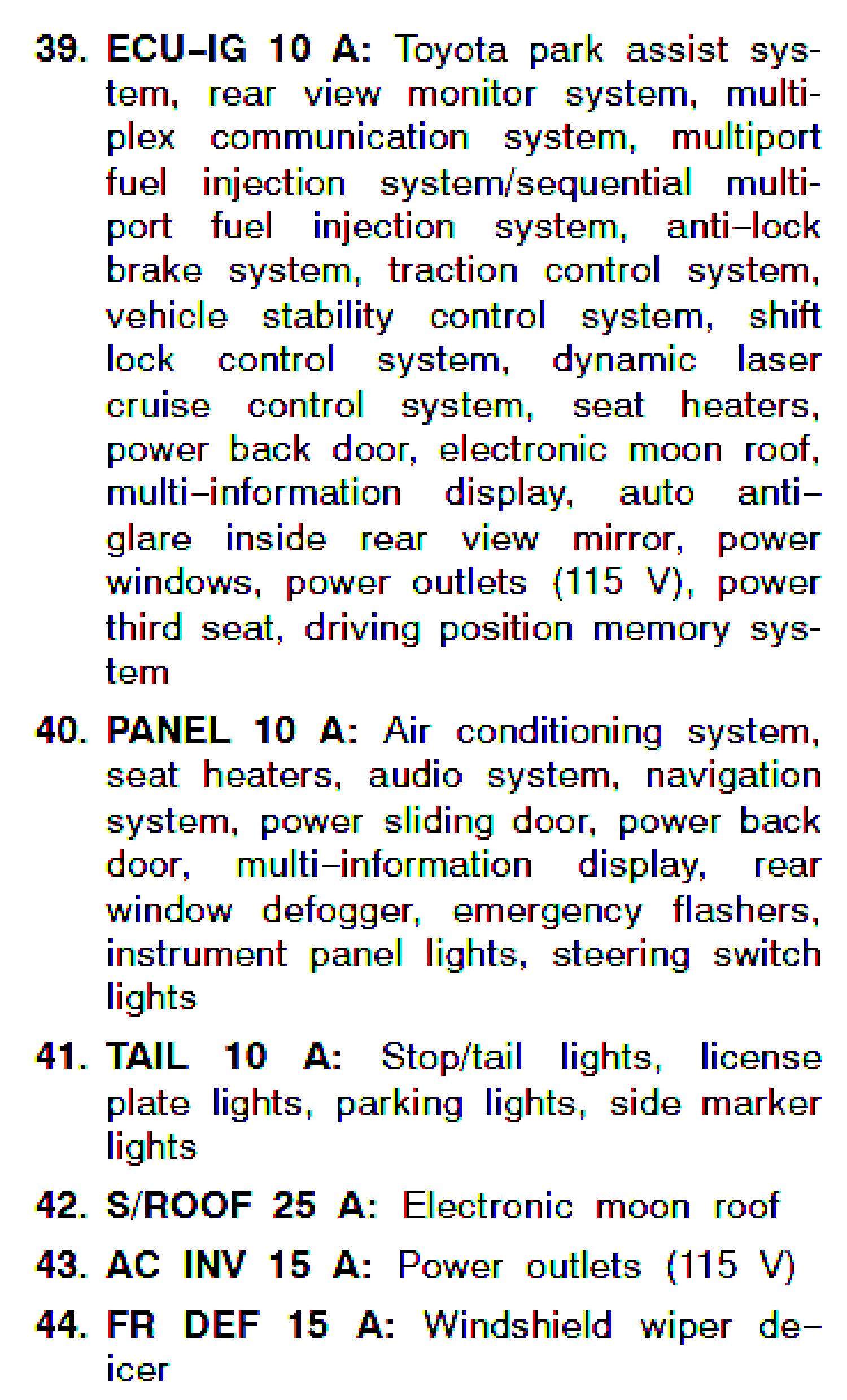

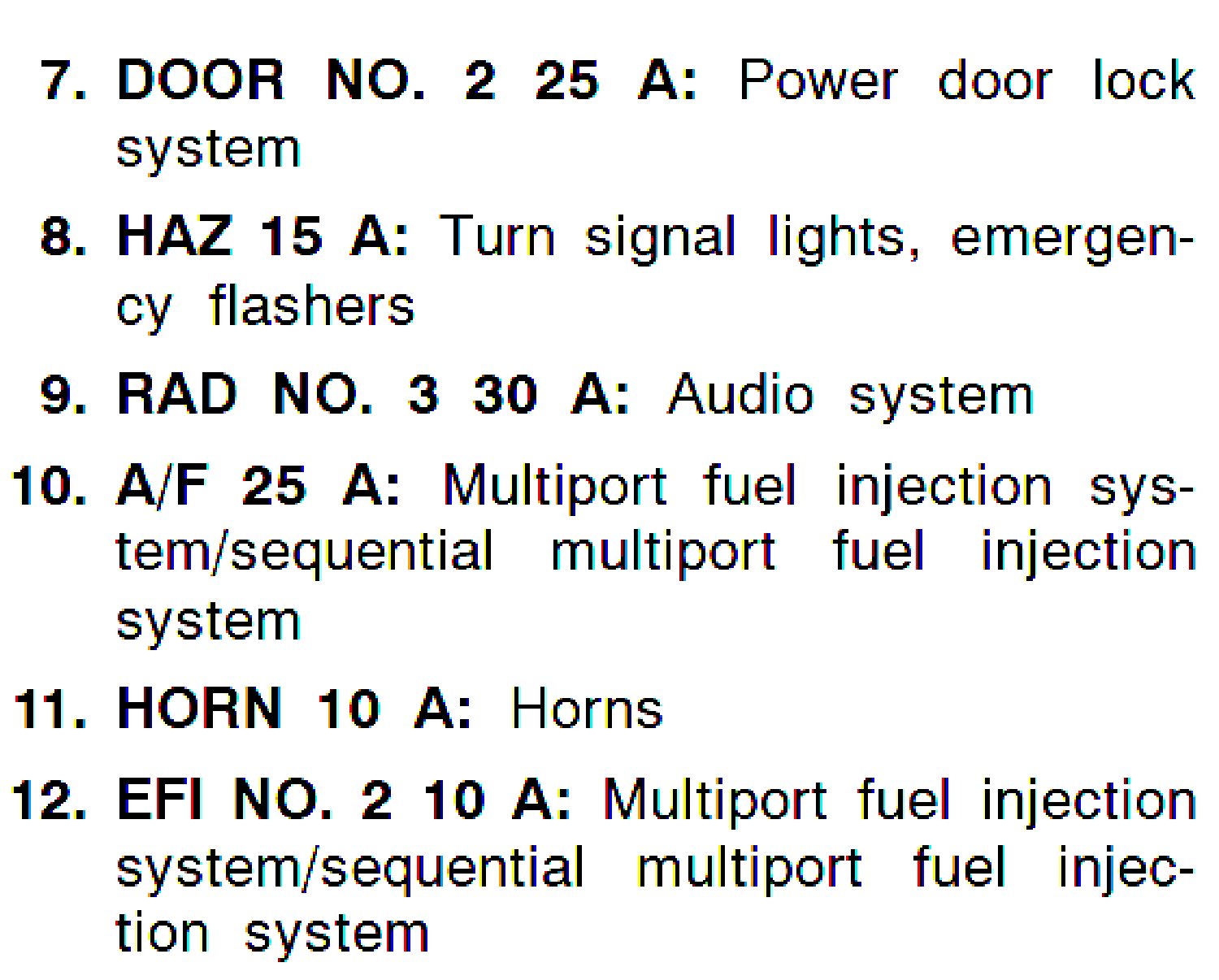

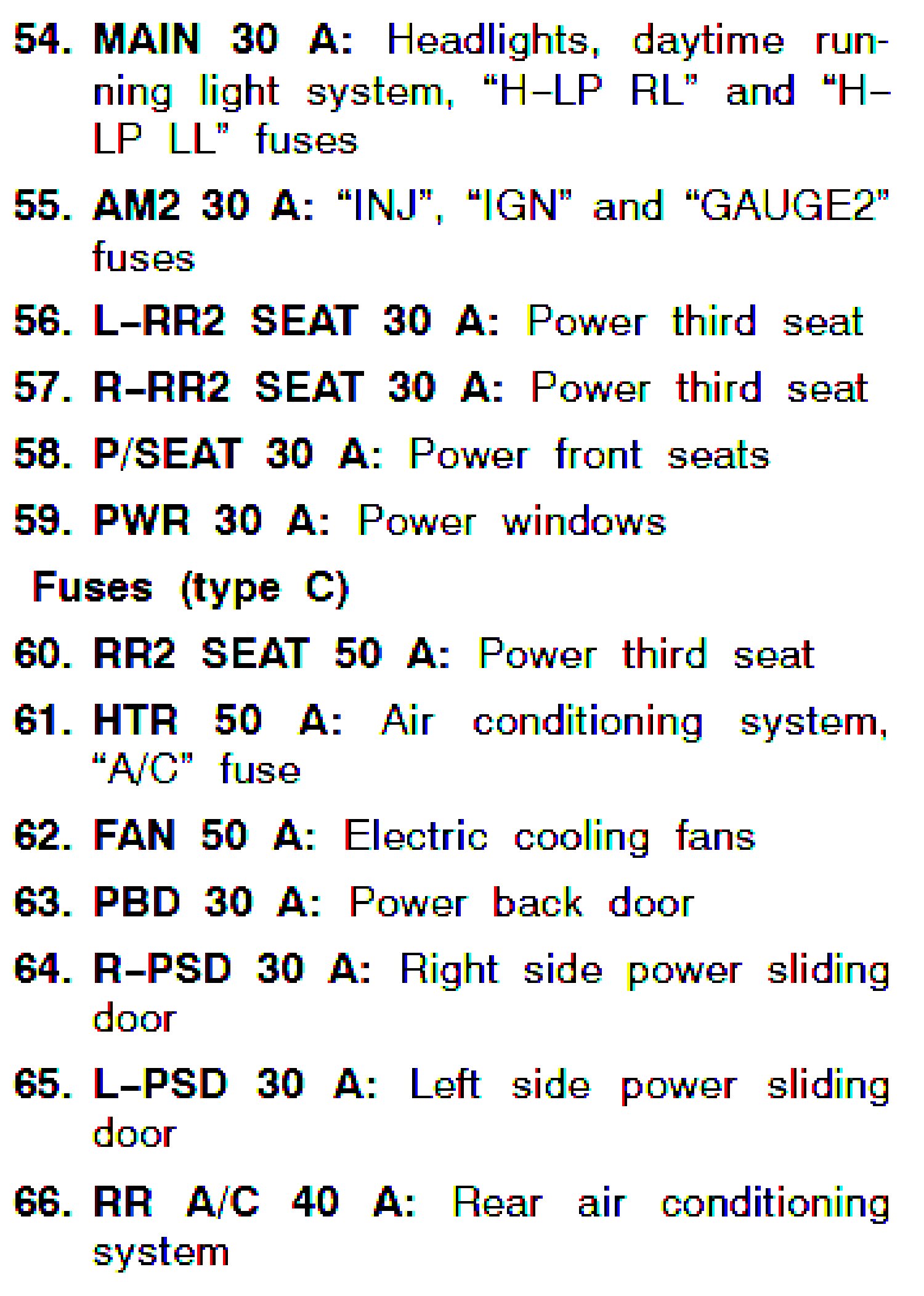

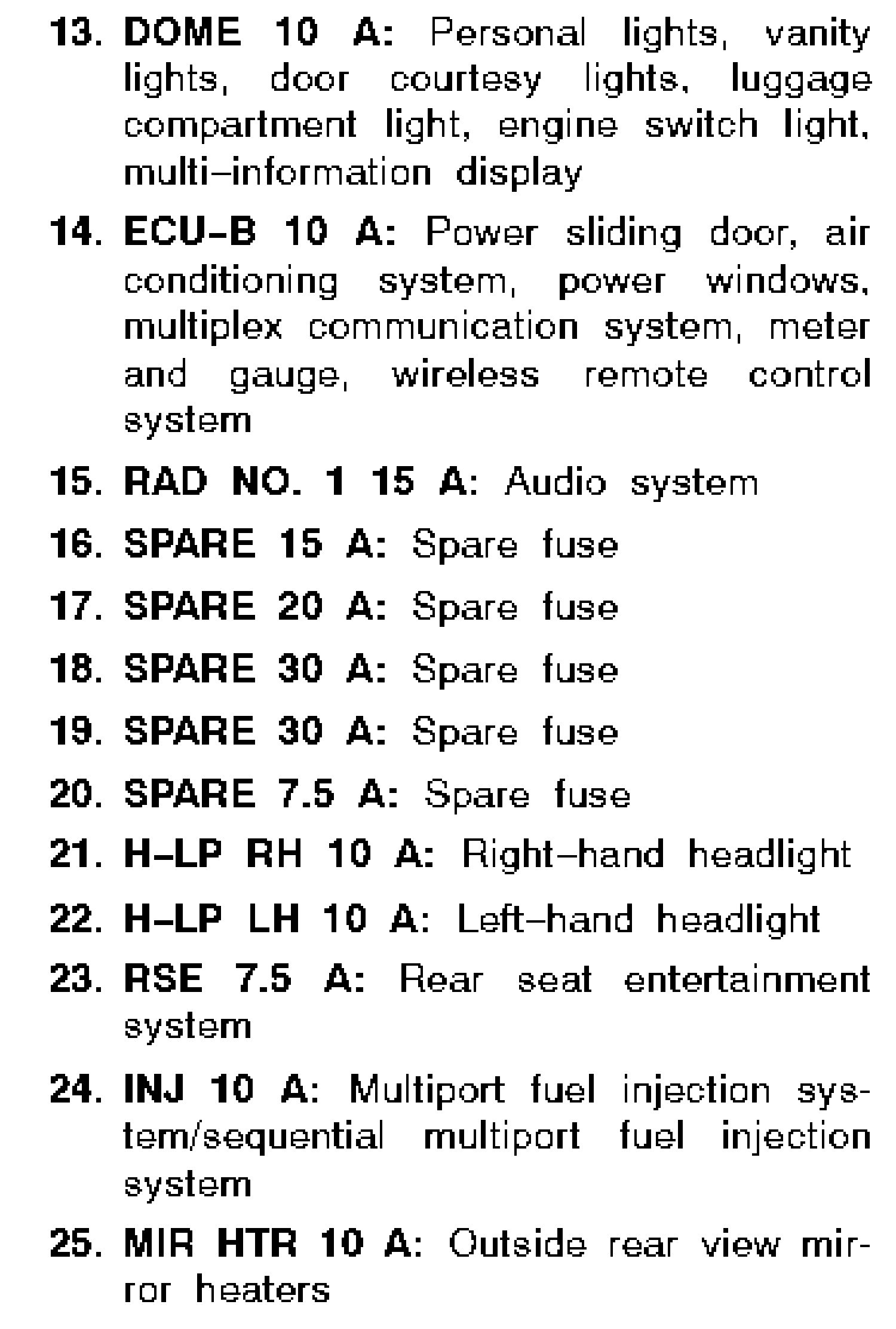

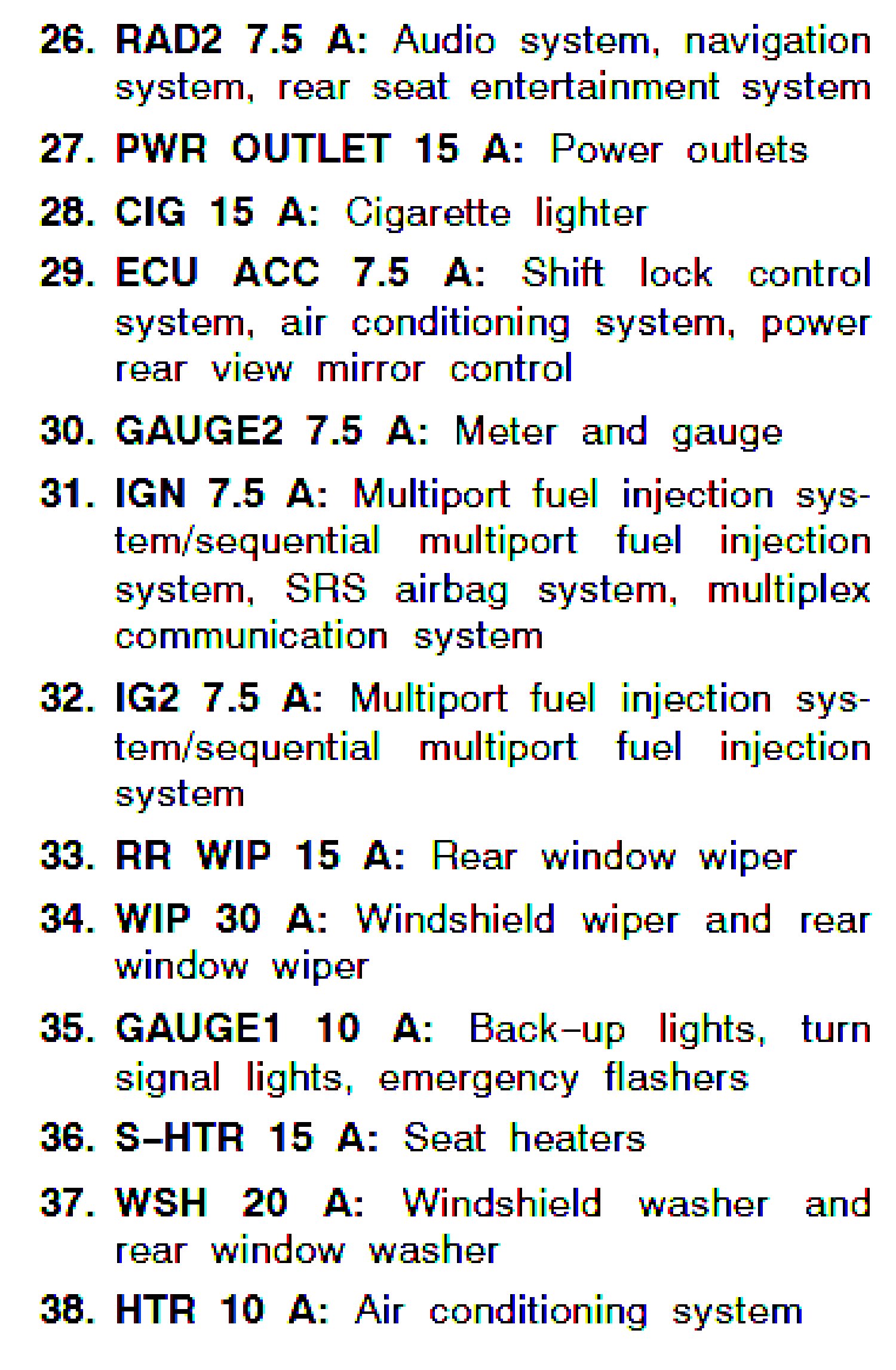

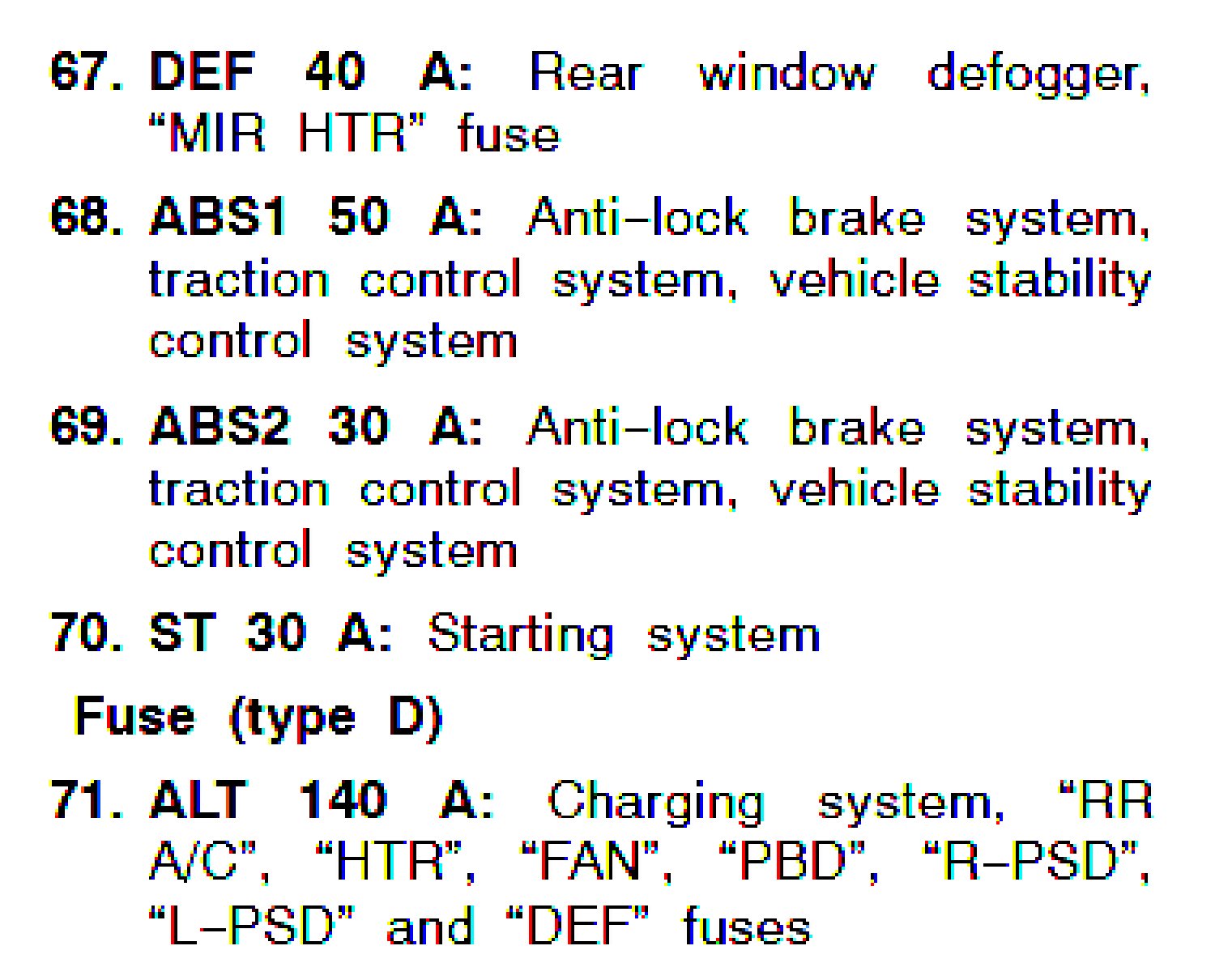

Fuse Layout and Amperage Ratings

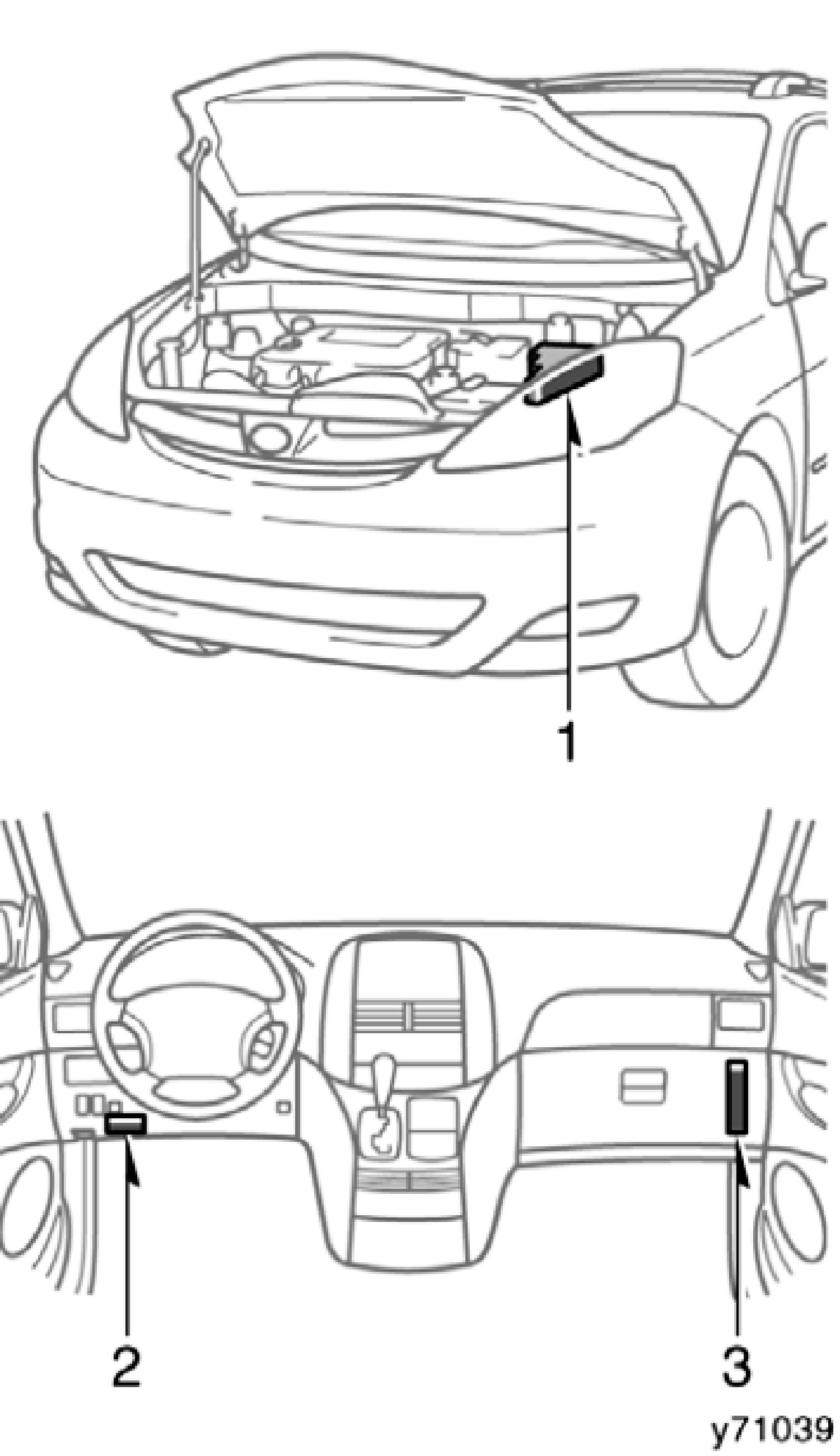

Fuse Block Locations:





Engine Compartment:





Instrument Panel (Driver's Side):





Instrument Pane (Passenger's Side):

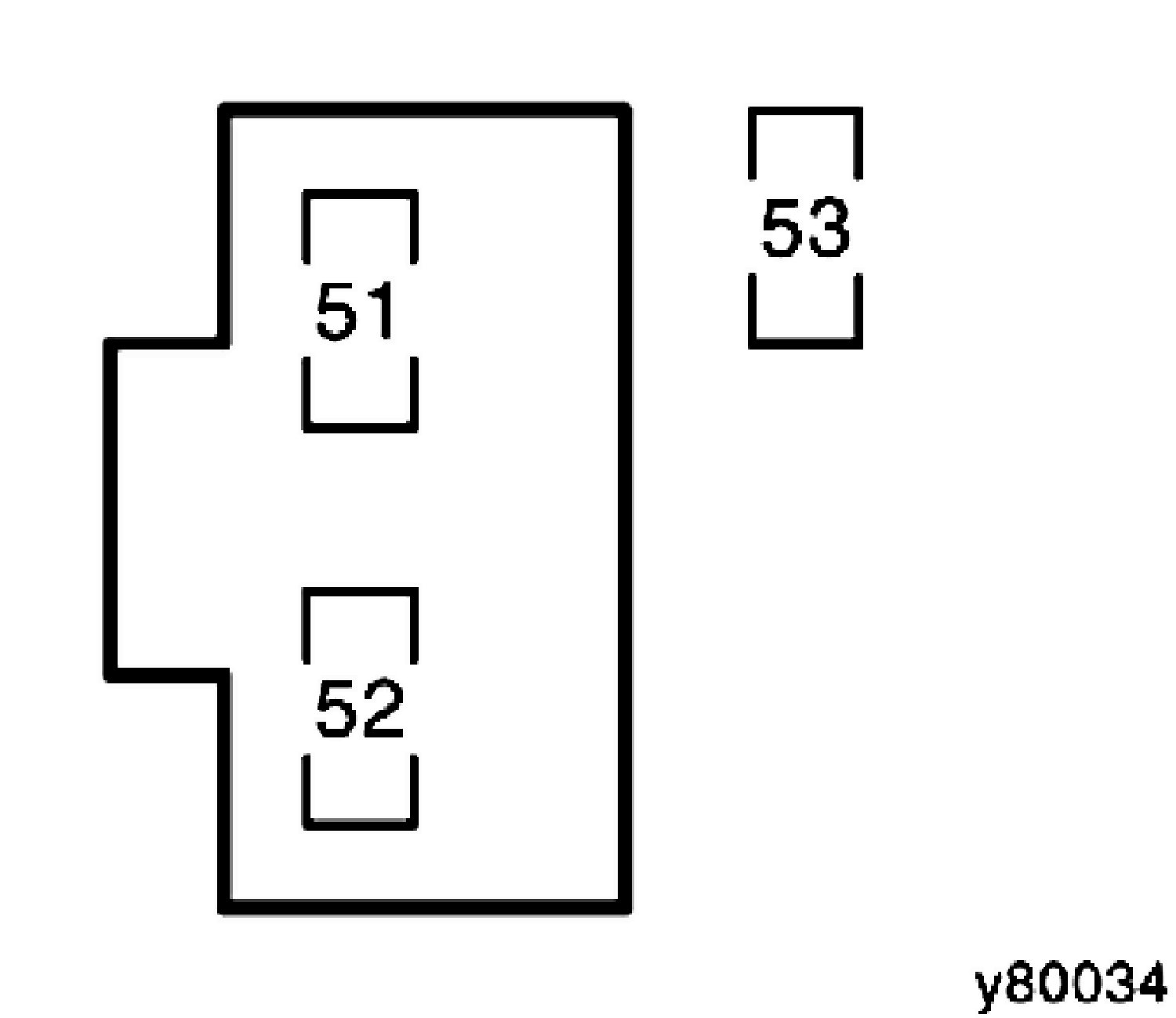

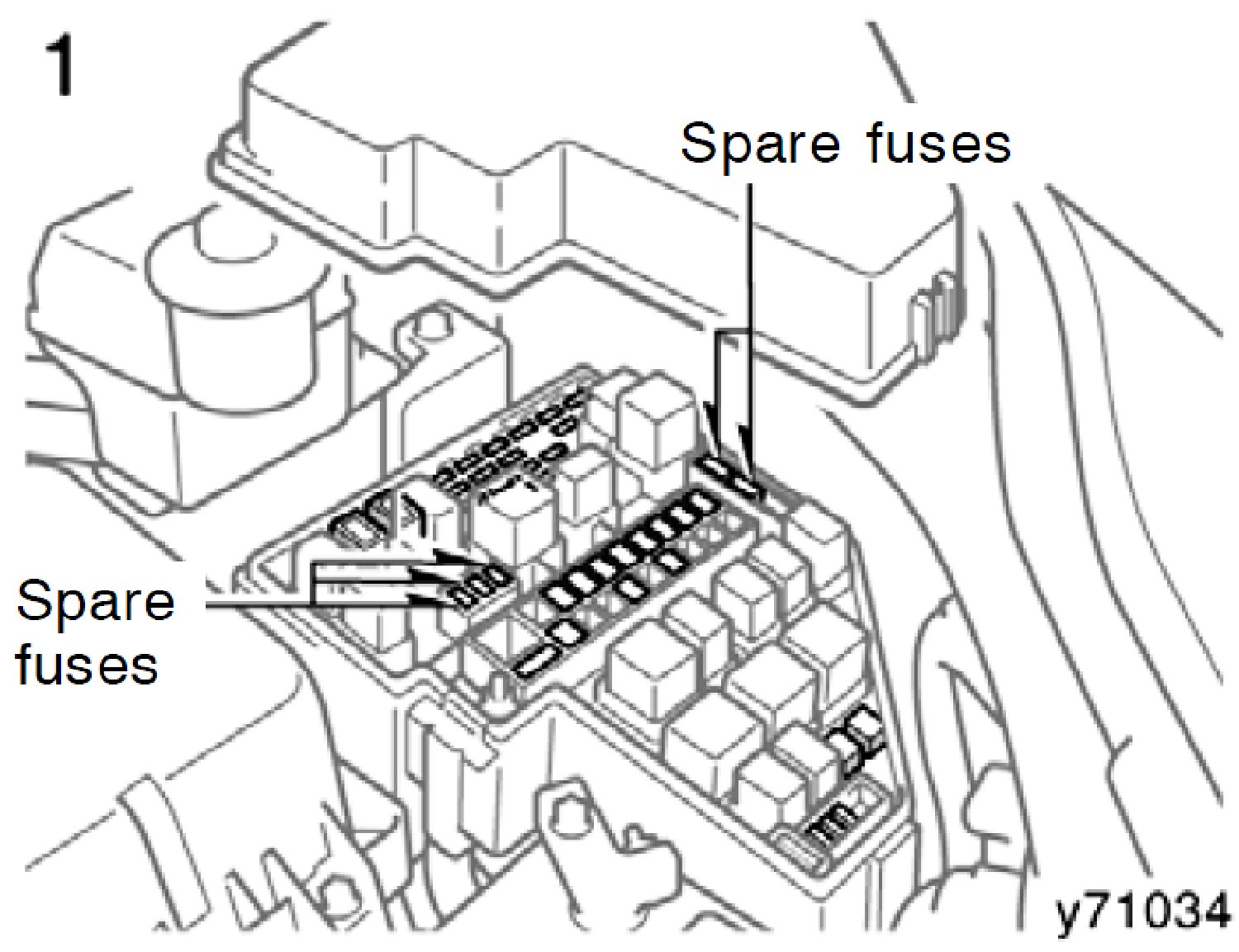

Fuse Location - Engine Compartment:

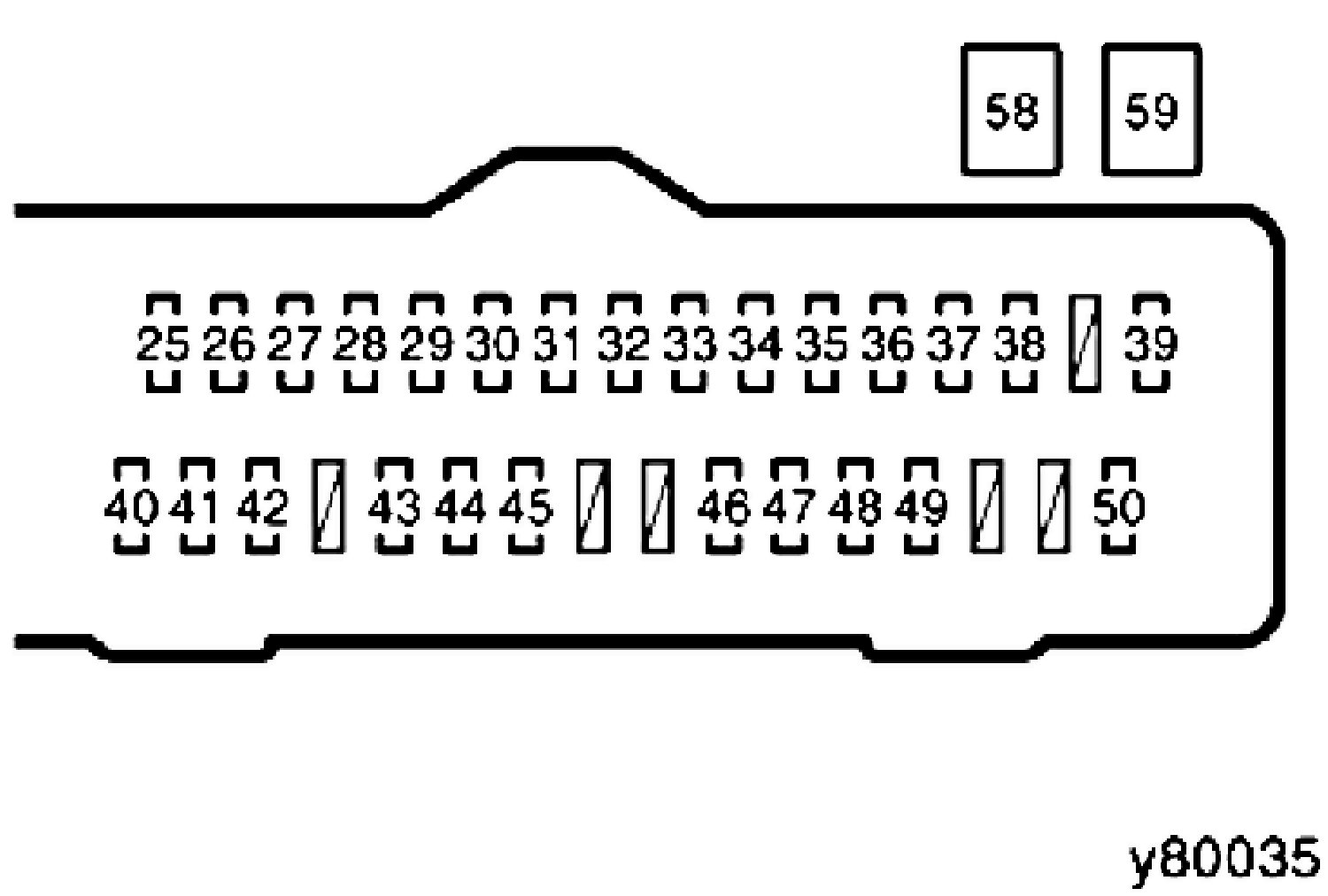

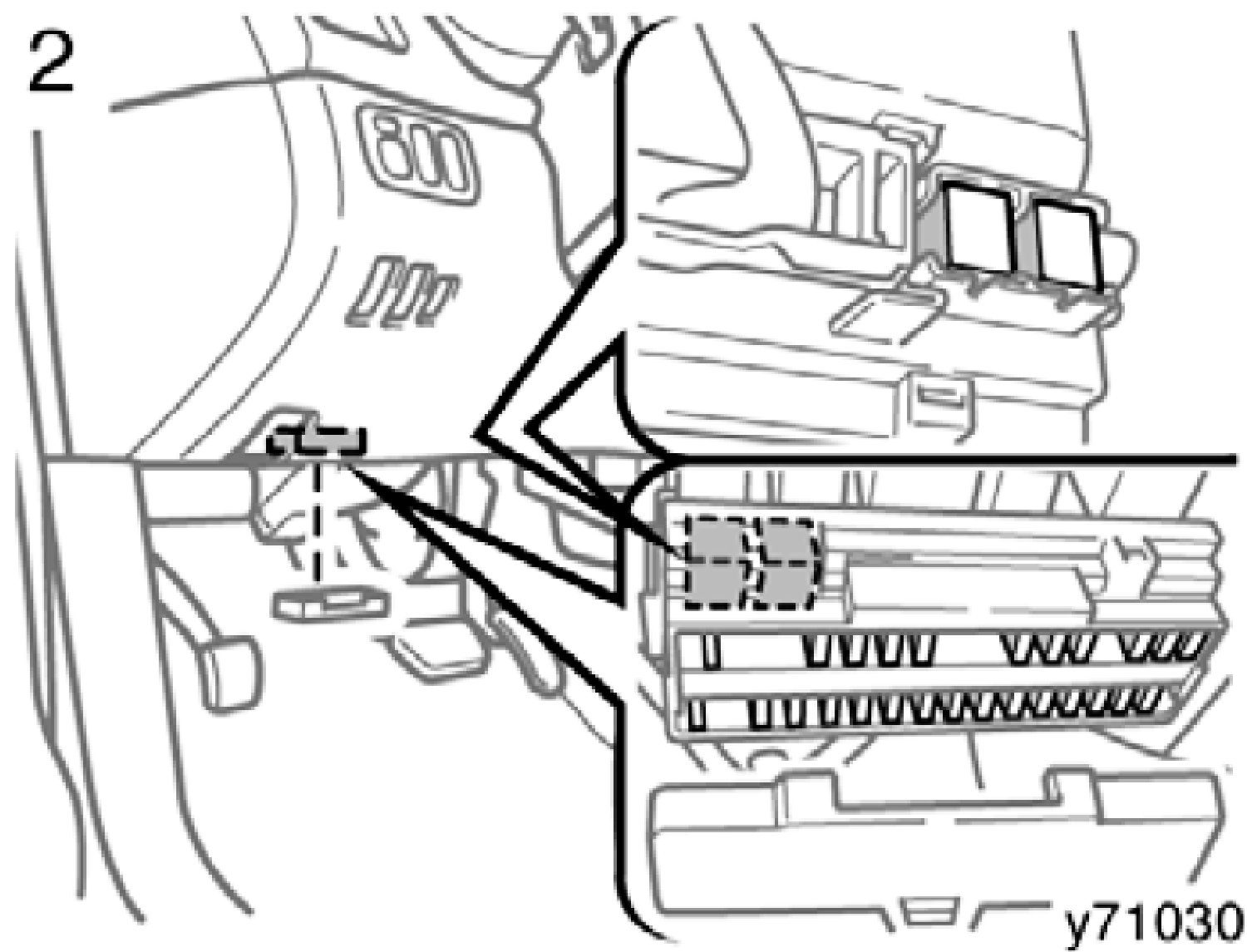

Fuse Location - Instrument Panel (Driver's Side):

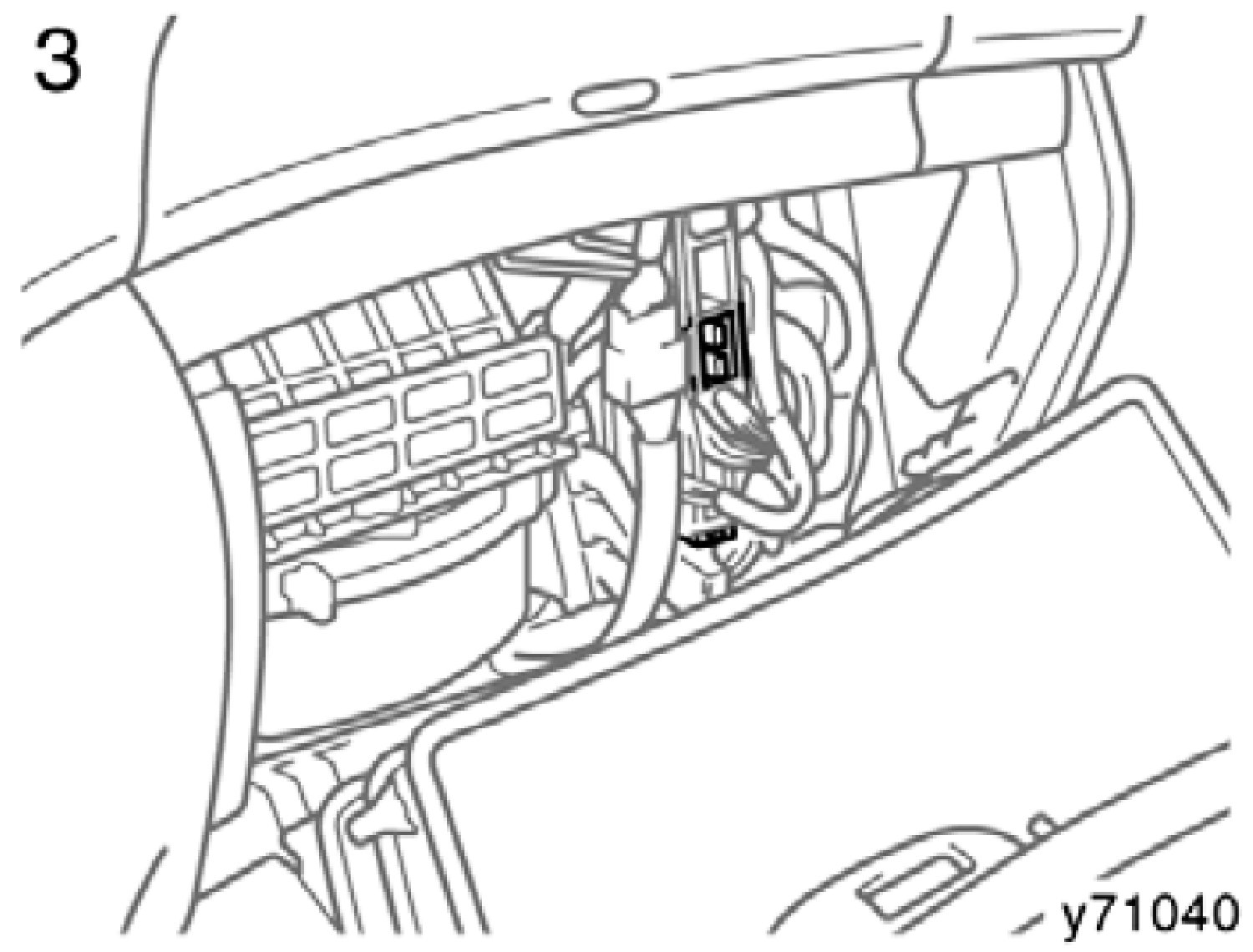

Fuse Location - Instrument Panel (Passenger's Side):
