2GR-FE EMISSION CONTROL: PURGE VALVE: INSTALLATION

INSTALLATION

1. INSTALL PURGE VSV

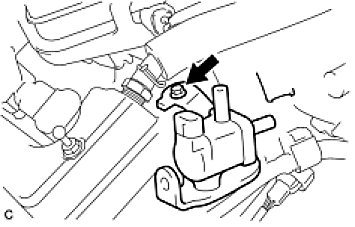

(a) Install the Purge VSV with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)

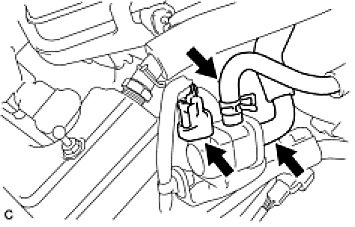

(b) Connect the 2 vacuum hoses and No. 1 vacuum switching valve connector.
2. INSTALL V-BANK COVER SUB-ASSEMBLY Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
