Fluid - Differential: Adjustments

DIFFERENTIAL: DIFFERENTIAL OIL: ADJUSTMENT

ADJUSTMENT

1. INSPECT DIFFERENTIAL OIL






(a) Stop the vehicle on the level place.
(b) Remove the differential filler plug and gasket.

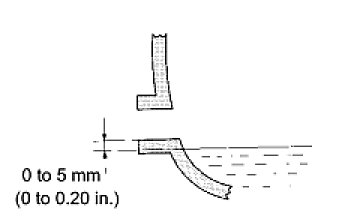

(c) Check that the oil surface is within 5 mm (0.20 in.) from the lowest position of the inner surface of the differential filler plug opening.
NOTICE:
- Excessively large or small amount of oil may cause troubles.
- After replacing oil, drive the vehicle and check the oil level.

(d) Check for oil leakage when the oil level is low.
(e) Install the differential filler plug and a new gasket.
Torque: 49 Nm (500 kgf-cm, 36 ft-lbf)
