Installation

LIGHTING: FOG LIGHT ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL FOG LIGHT ASSEMBLY

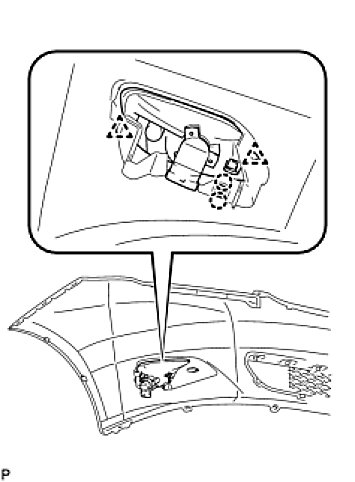

(a) Install the fog light assembly with the 2 claws and 2 pins.
2. INSTALL FRONT BUMPER ASSEMBLY Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. VEHICLE PREPARATION FOR FOG LIGHT AIMING
5. PREPARATION FOR FOG LIGHT AIMING
6. FOG LIGHT AIMING INSPECTION
7. FOG LIGHT AIMING ADJUSTMENT
