Room Temperature Sensor (For Rear Air Conditioning)

AIR CONDITIONING: ROOM TEMPERATURE SENSOR (for Rear Air Conditioning System): ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT REAR A/C ROOM TEMPERATURE SENSOR
(a) Remove the rear A/C room temperature sensor.






(b) Disconnect the connector from the rear A/C room temperature sensor.

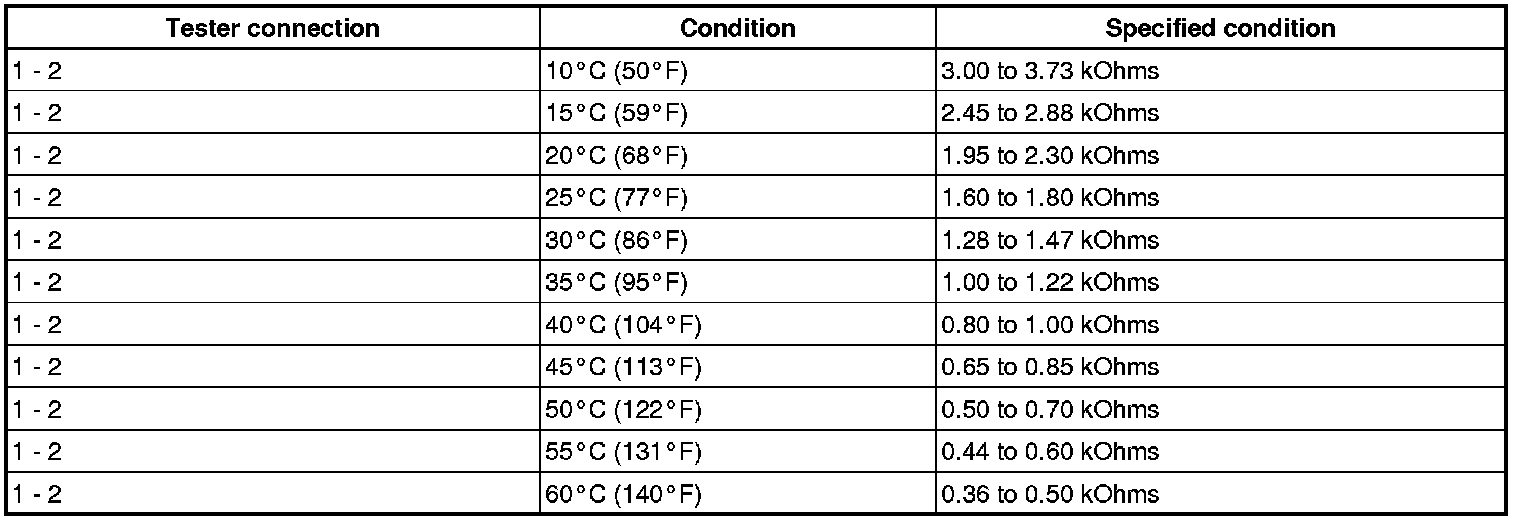

(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:





NOTICE:
- Even slightly touching the sensor may change the resistance value. Be sure to hold the connector of the sensor.
- When measuring, the sensor temperature must be the same as the ambient temperature.

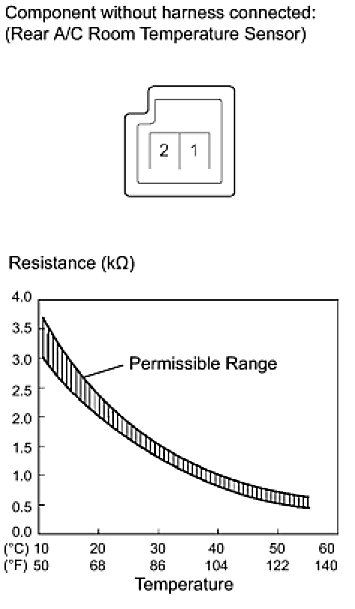

HINT: As the temperature increases, the resistance decreases (see the graph).
If the resistance is not as specified, replace the rear A/C room temperature sensor.
