Removal

AIR CONDITIONING: BLOWER UNIT: REMOVAL

REMOVAL

1. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY WITH PASSENGER AIRBAG ASSEMBLY
HINT: Refer to the instructions for removal of the instrument panel sub-assembly w/ passenger airbag assembly Removal.

2. REMOVE HEATER TO FOOT DUCT NO.1






(a) Remove the clip and the heater to foot duct No. 1.
3. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY (w/ Stereo Compartment Amplifier) Removal

4. REMOVE ECM Removal

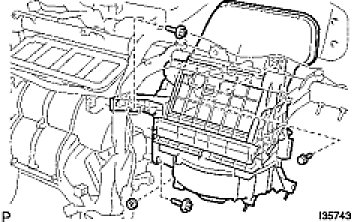

5. REMOVE BLOWER ASSEMBLY






(a) Release the 2 clamps, the 2 nuts and the wire harness.






(b) Remove the bolt, the 2 screws and the nut.
(c) Remove the blower assembly.
