Disassembly

AIR CONDITIONING: BLOWER UNIT: DISASSEMBLY

DISASSEMBLY

1. REMOVE AIR REFINER ELEMENT

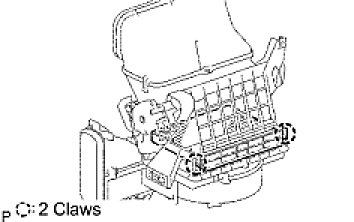

(a) Release the 2 claw fittings and remove the air filter sub-assembly.

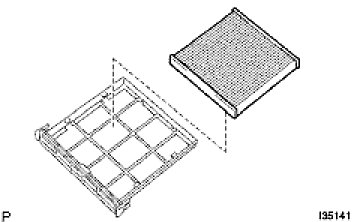

(b) Remove the air refiner element from the air filter cover plate.
2. REMOVE COOLING UNIT DAMPER SERVO SUB-ASSEMBLY

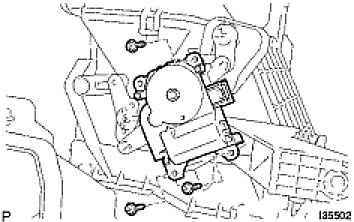

(a) Remove the 3 screws and the cooling unit damper servo sub-assembly.
3. REMOVE BLOWER RESISTOR (for Manual Air Conditioning System)

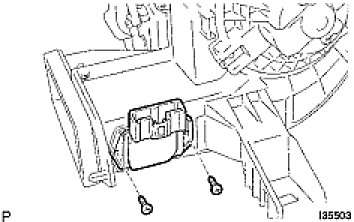

(a) Remove the 2 screws and the blower resistor.
4. REMOVE BLOWER MOTOR CONTROL (for Automatic Air Conditioning System)

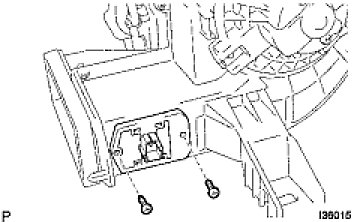

(a) Remove the 2 screws and the blower motor control.
5. REMOVE BLOWER WITH FAN MOTOR SUB-ASSEMBLY






(a) Remove the 3 screws and the blower w/ fan motor sub-assembly.
