Reassembly

AIR CONDITIONING: BLOWER UNIT (for Rear Air Conditioning System): REASSEMBLY

REASSEMBLY

1. INSTALL HEATER RADIATOR UNIT SUB-ASSEMBLY

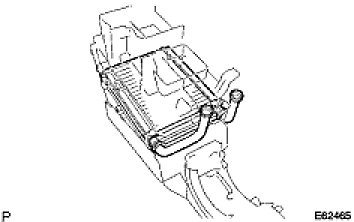

(a) Install the heater radiator unit sub-assembly to the air conditioning blower assembly.
(b) Install the 2 O-rings to the heater water valve assembly.

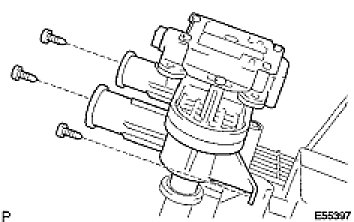

(c) Install the 3 screws and the heater water valve assembly.

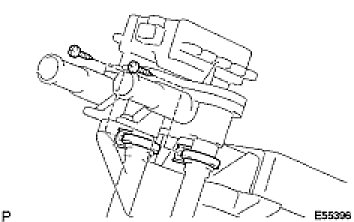

(d) Install the 2 screws and the 2 clamps.

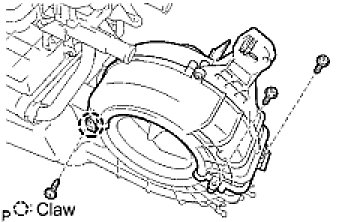

(e) Engage the claw fitting and install the 3 screws and blower case.
2. INSTALL BLOWER RESISTOR TRANSISTOR ASSEMBLY

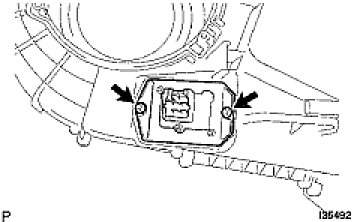

(a) Install the 2 screws and the blower resistor transistor assembly.
3. INSTALL COOLING UNIT MOTOR SUB-ASSEMBLY WITH FAN

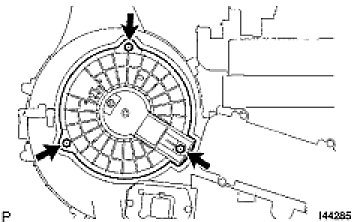

(a) Install the 3 screws and the cooling unit motor sub-assembly w/ fan.
4. INSTALL COOLER THERMISTOR NO.1 (for Automatic Air Conditioning System)

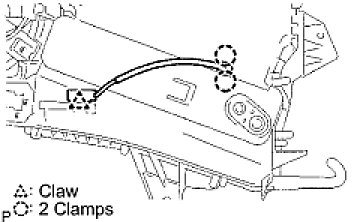

(a) Engage the 2 claw fittings and the clamp and install the cooler thermistor No. 1.
