AIR CONDITIONING: BLOWER UNIT (for Rear Air Conditioning System): INSTALLATION

INSTALLATION

1. INSTALL AIR CONDITIONING BLOWER ASSEMBLY






(a) Install the air conditioning blower assembly with the 3 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)

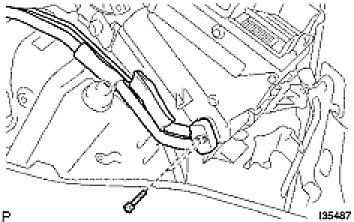

NOTE: Tighten the bolts in the order shown in the illustration to install the air conditioning blower assembly.

2. INSTALL AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY
(a) Sufficiently apply compressor oil to 2 new O-rings and the fitting surface of the air conditioning tube & accessory assembly.
Compressor oil:
ND-OIL 8 or equivalent
(b) Install the 2 O-rings on the air conditioning tube & accessory assembly.






(c) Install the air conditioning tube & accessory assembly with the 2 bolts.
Torque: 3.5 Nm (36 kgf-cm, 31 in-lbf)
3. ADD ENGINE COOLANT Service and Repair.

4. CHARGE REFRIGERANT
SST: 07110-58060
07117-58060
07117-58070
07117-58080
07117-58090
07117-78050
07117-88060
07117-88070
07117-88080
Service and Repair.

5. WARM UP ENGINE
6. INSPECT FOR ENGINE COOLANT LEAK Testing and Inspection.

7. INSPECT REFRIGERANT LEAK Refrigerant.
