Engine Room Main Wire

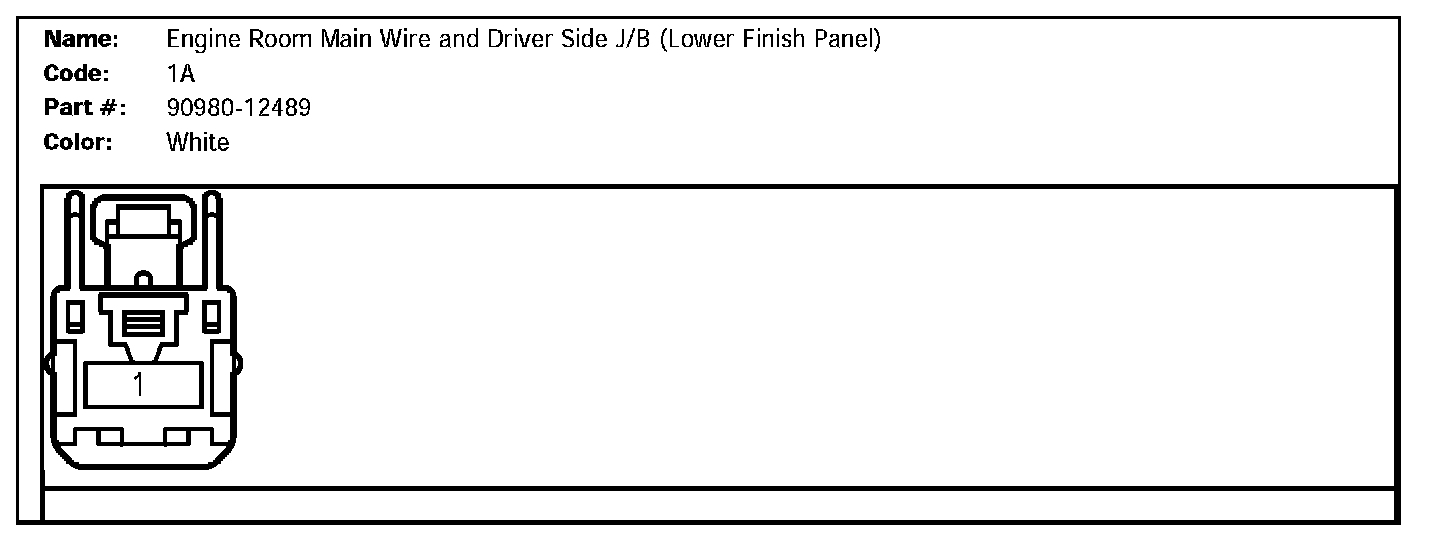

1A (Engine Room Main Wire And Driver Side J/B (Lower Finish Panel)):

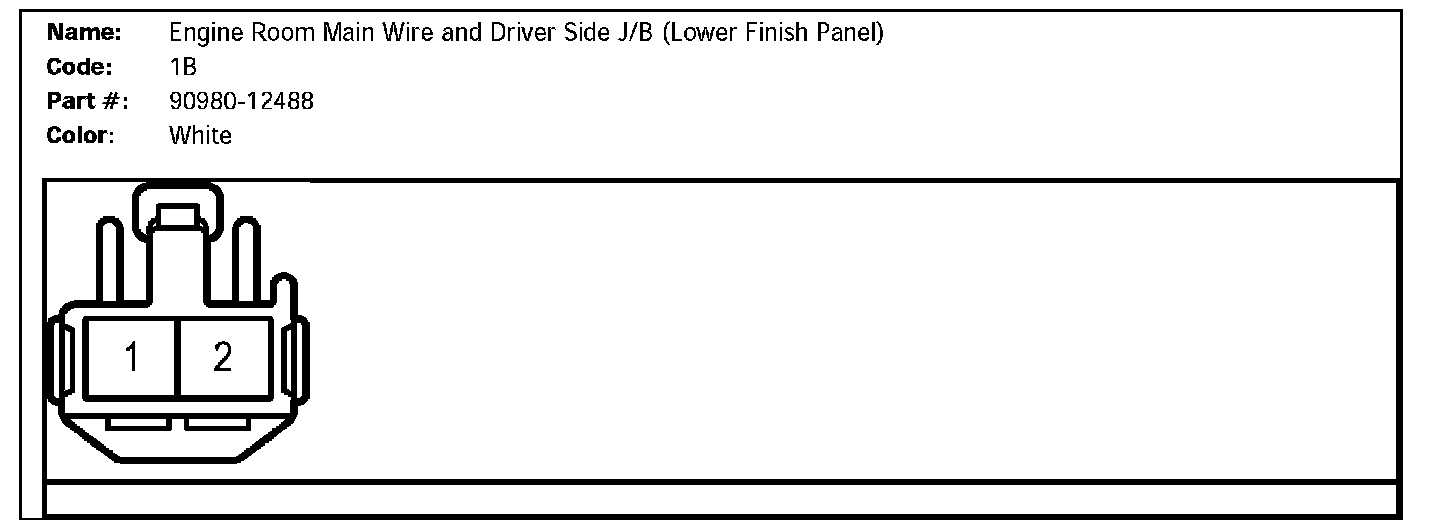

1B (Engine Room Main Wire And Driver Side J/B (Lower Finish Panel)):

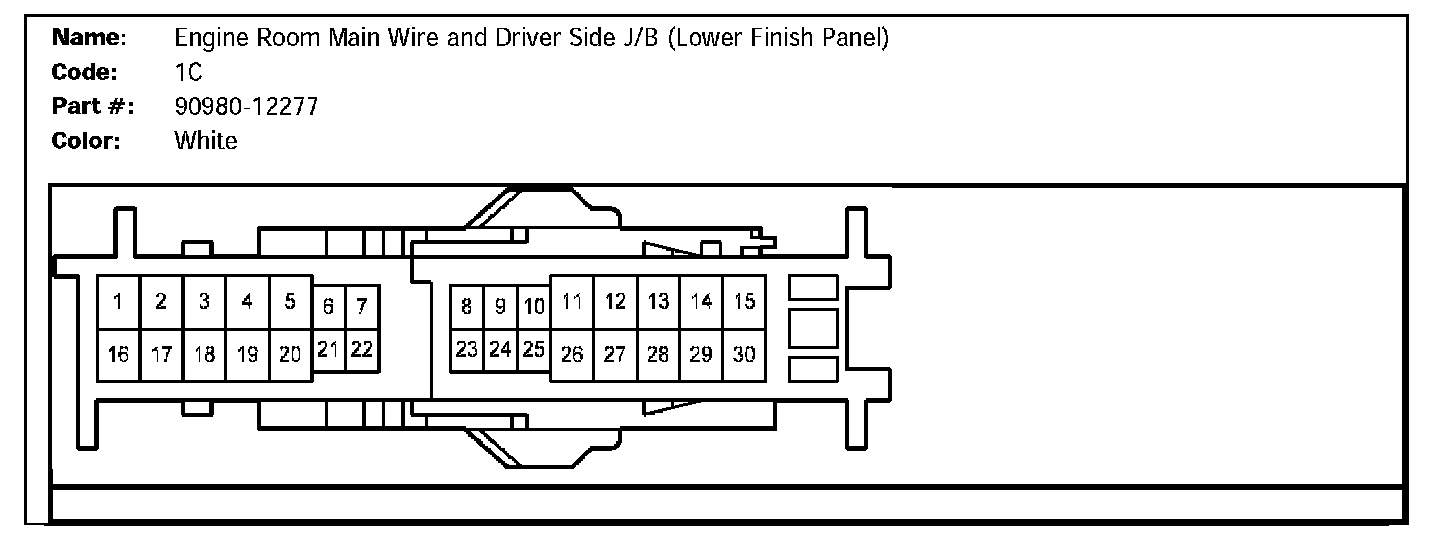

1C (Engine Room Main Wire And Driver Side J/B (Lower Finish Panel)):

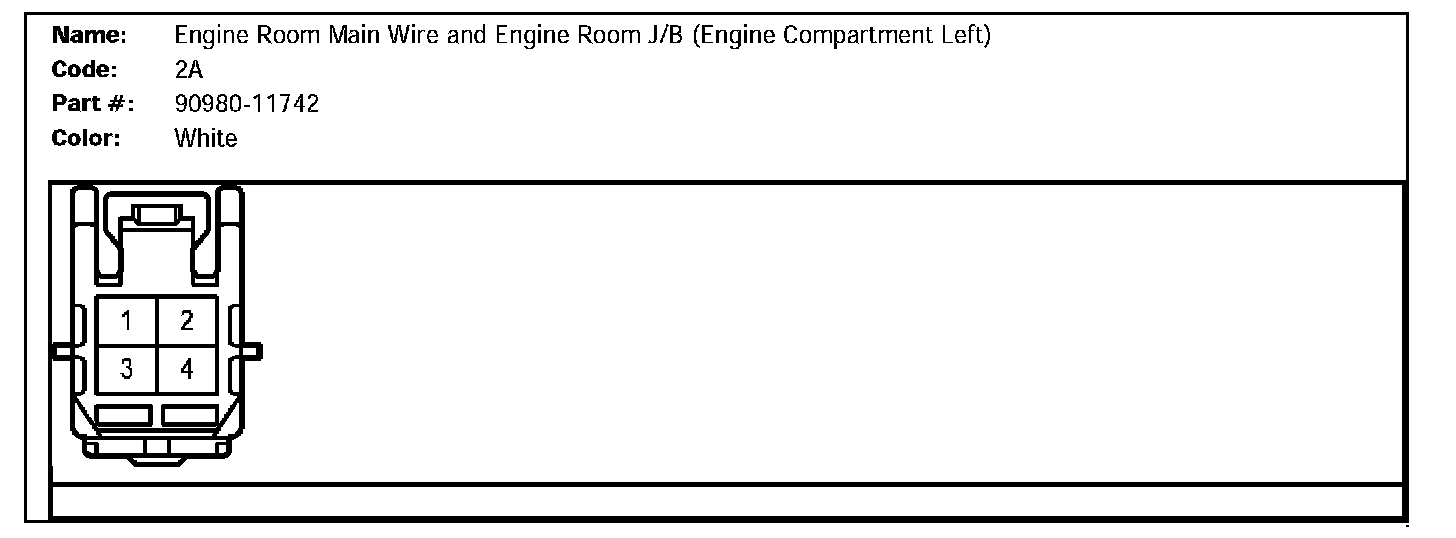

2A (Engine Room Main Wire And Engine Room J/B (Engine Compartment Left)):

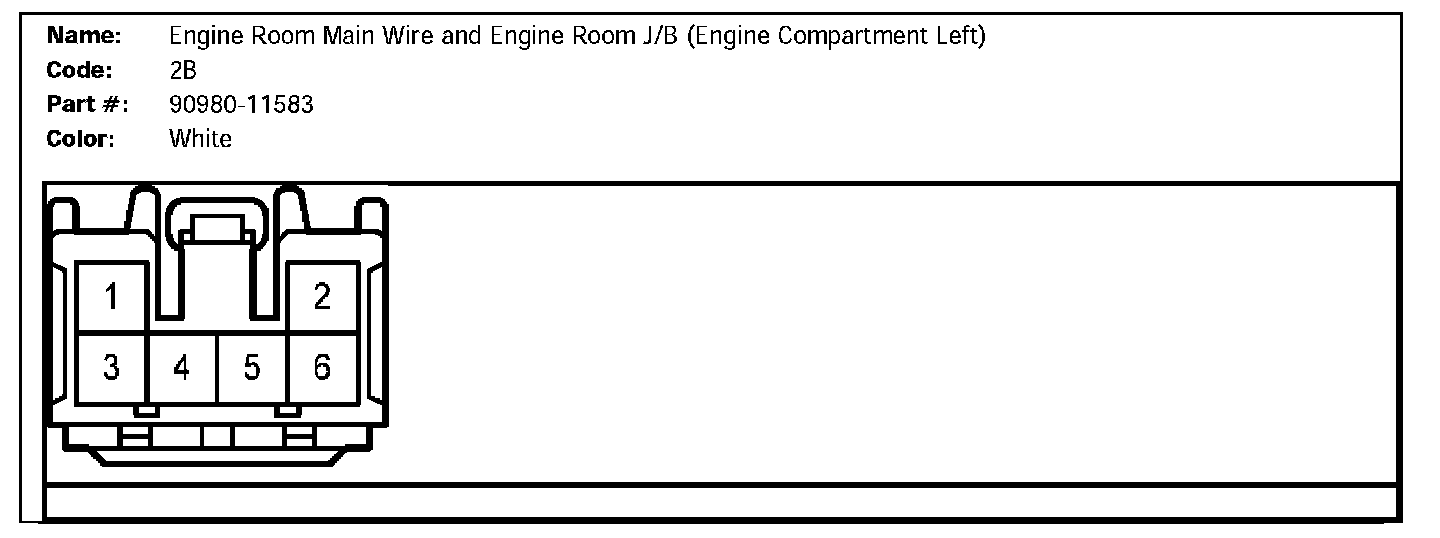

2B (Engine Room Main Wire And Engine Room J/B (Engine Compartment Left)):

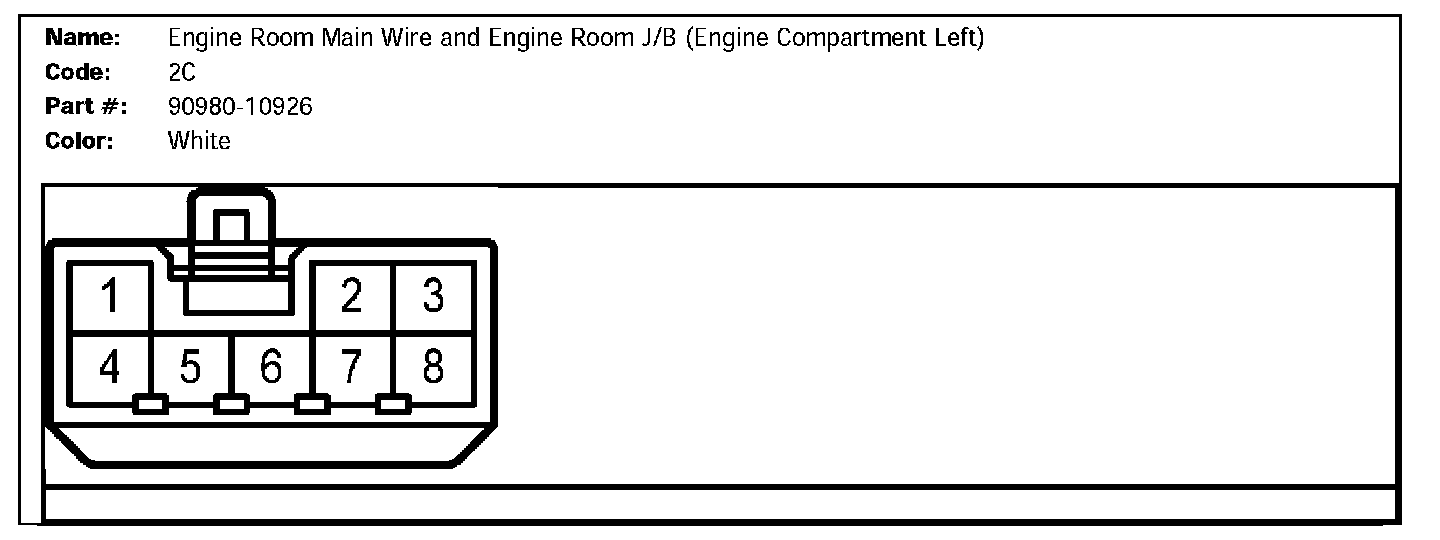

2C (Engine Room Main Wire And Engine Room J/B (Engine Compartment Left)):

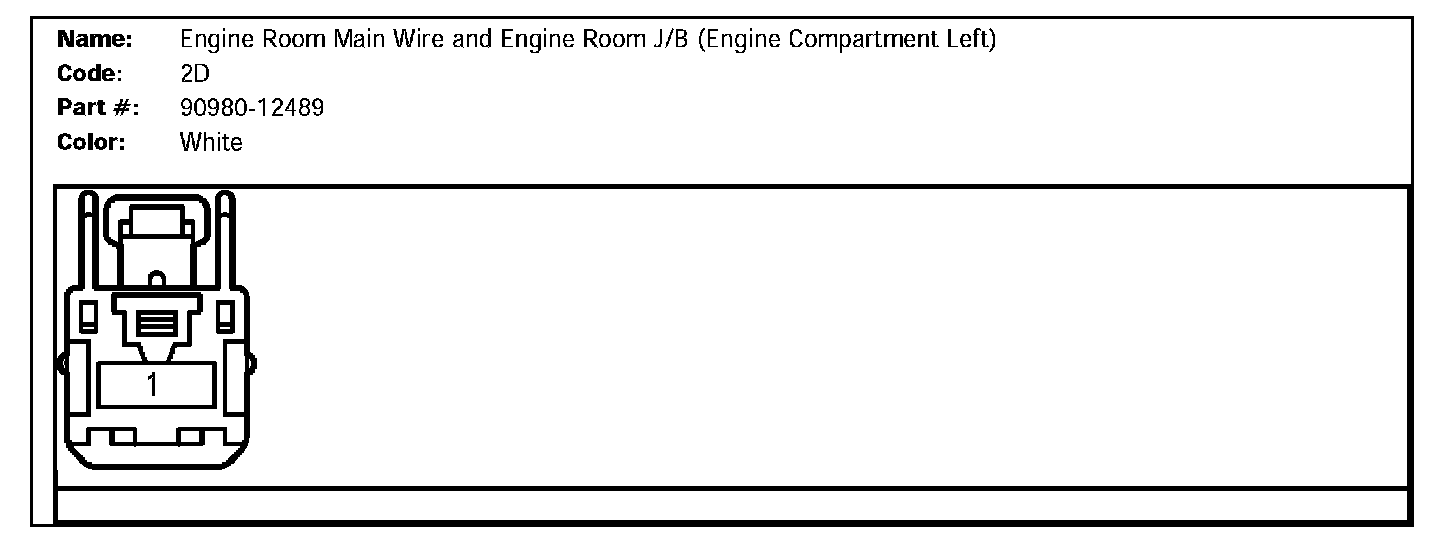

2D (Engine Room Main Wire And Engine Room J/B (Engine Compartment Left)):

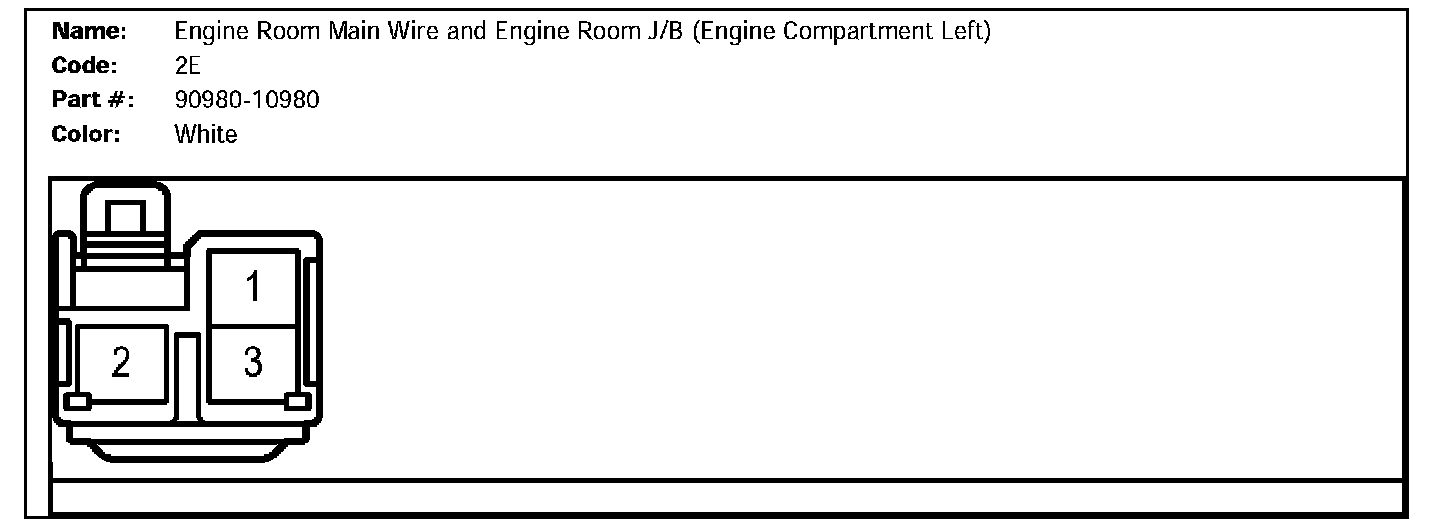

2E (Engine Room Main Wire And Engine Room J/B (Engine Compartment Left)):

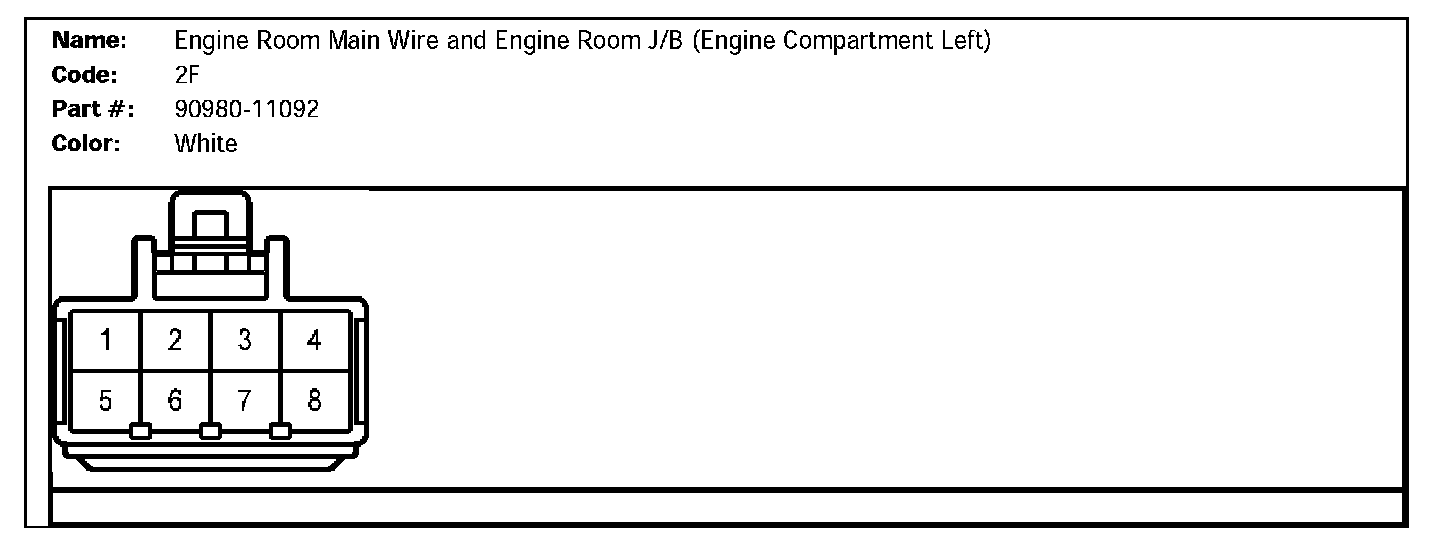

2F (Engine Room Main Wire And Engine Room J/B (Engine Compartment Left)):

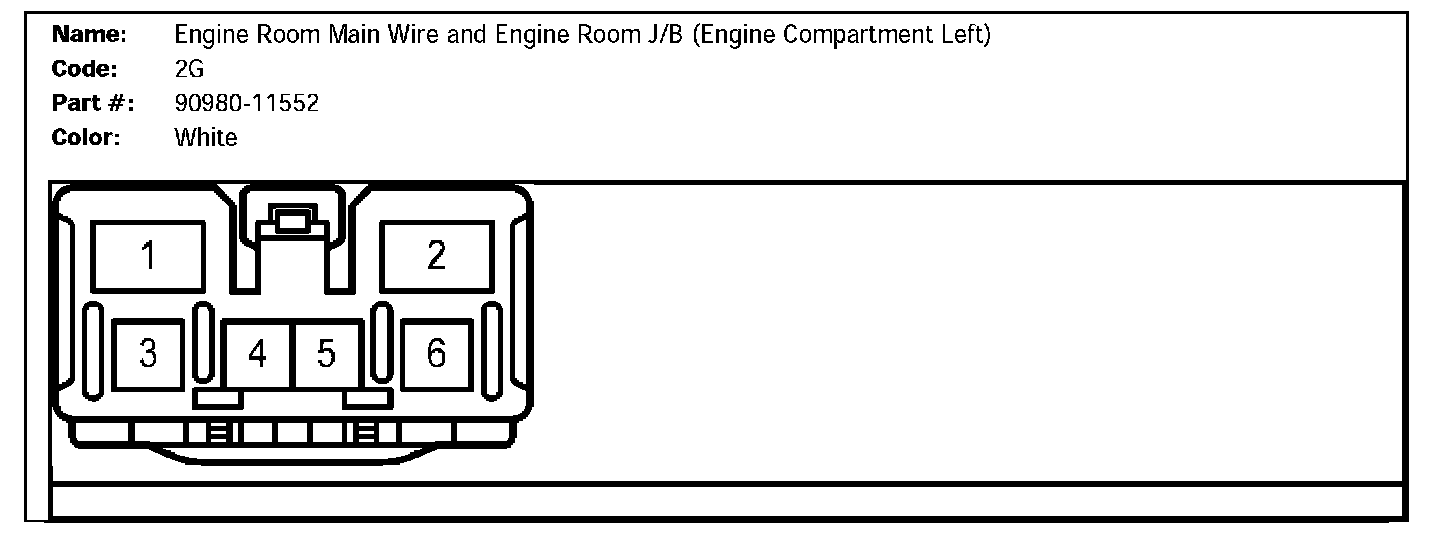

2G (Engine Room Main Wire And Engine Room J/B (Engine Compartment Left)):

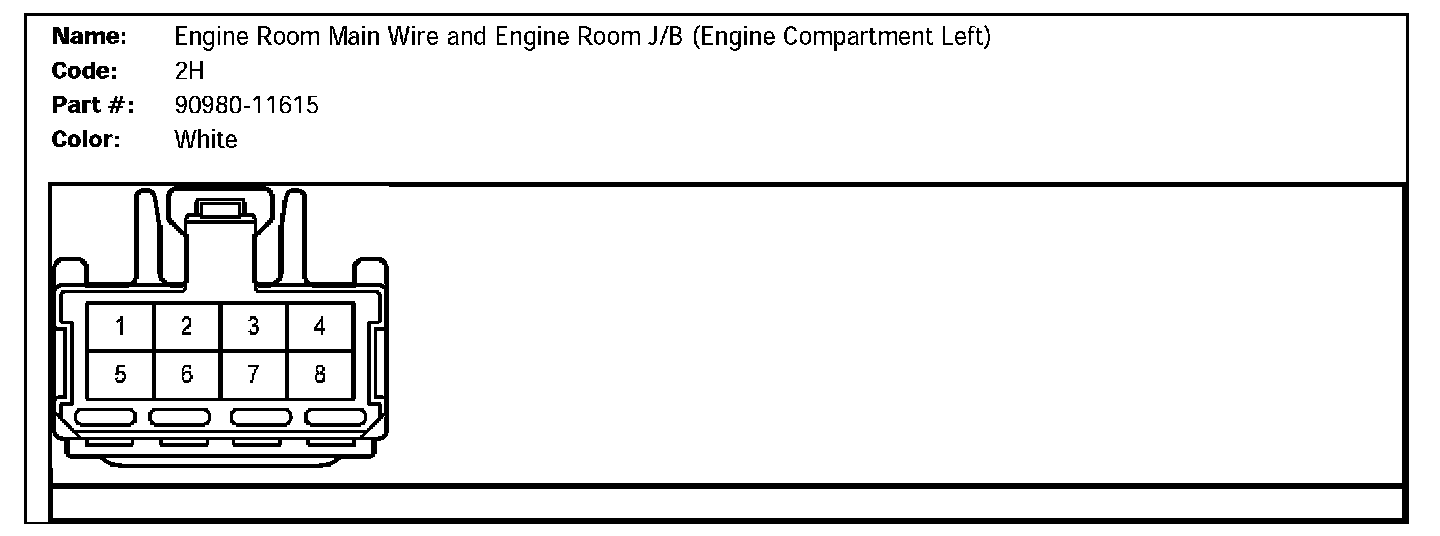

2H (Engine Room Main Wire And Engine Room J/B (Engine Compartment Left)):

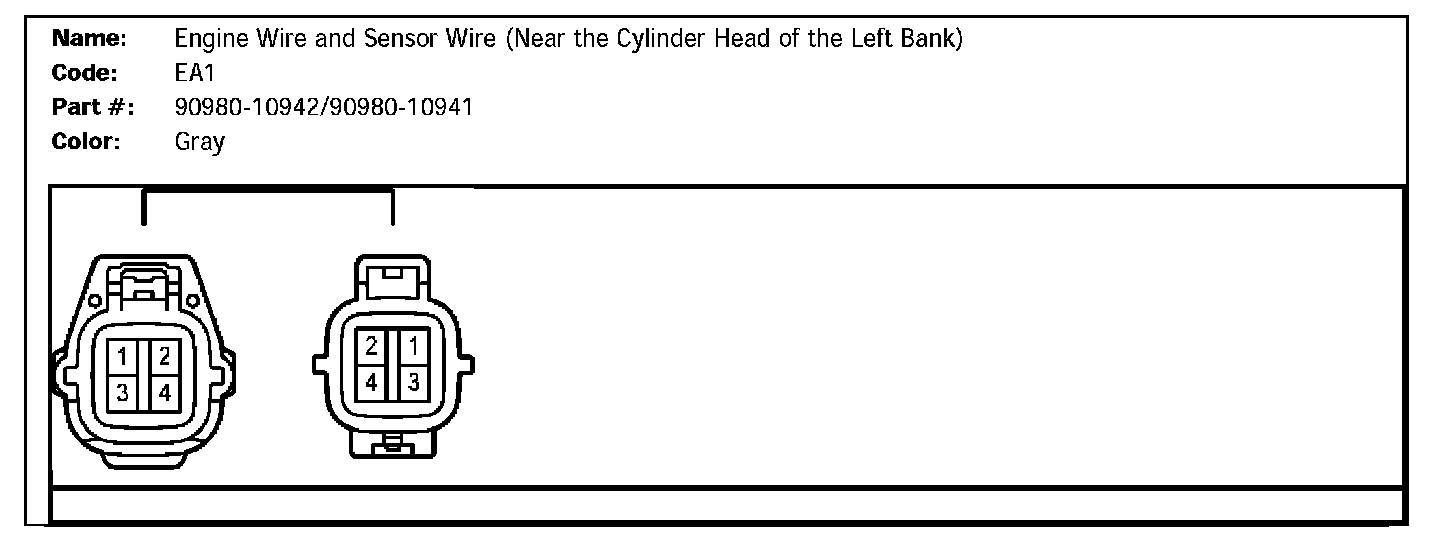

EA1 (Engine Wire And Sensor Wire (Near The Cylinder Head Of The Left Bank)):

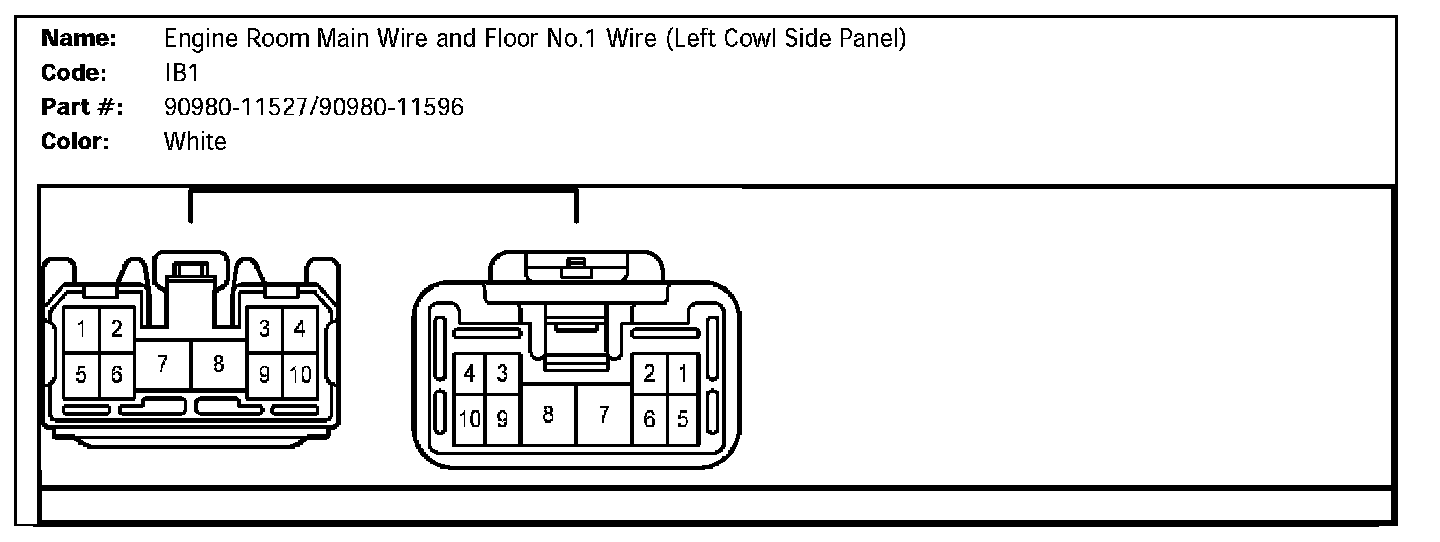

IB1 (Engine Room Main Wire And Floor No.1 Wire (Left Cowl Side Panel)):

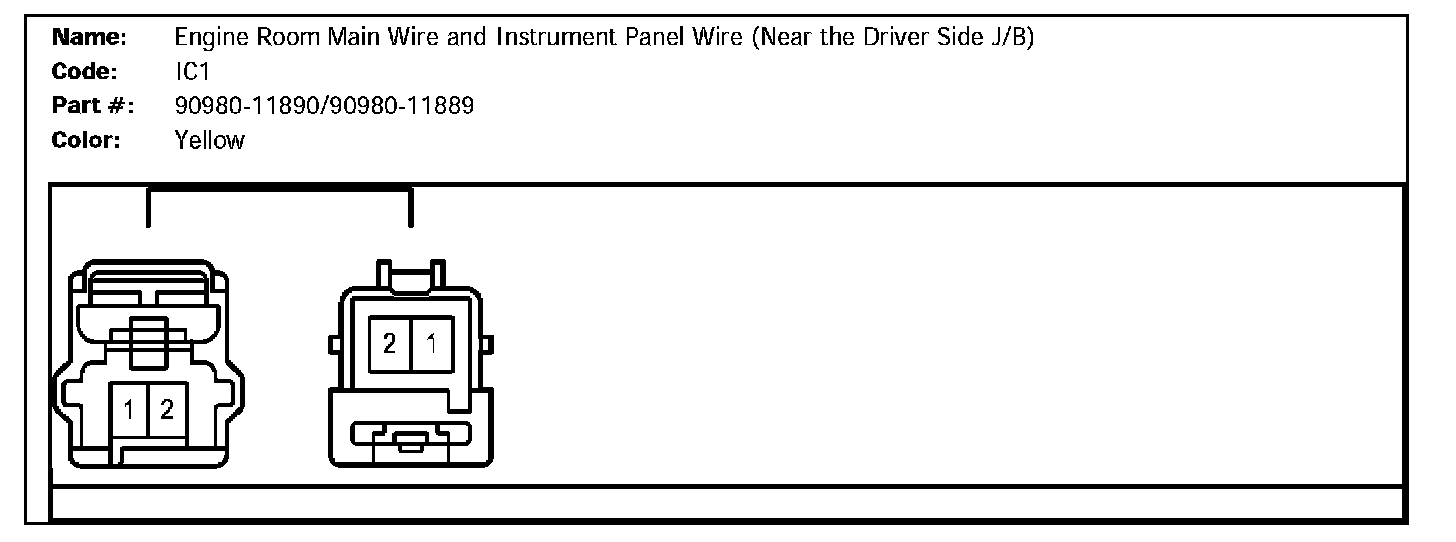

IC1 (Engine Room Main Wire And Instrument Panel Wire (Near The Driver Side J/B)):

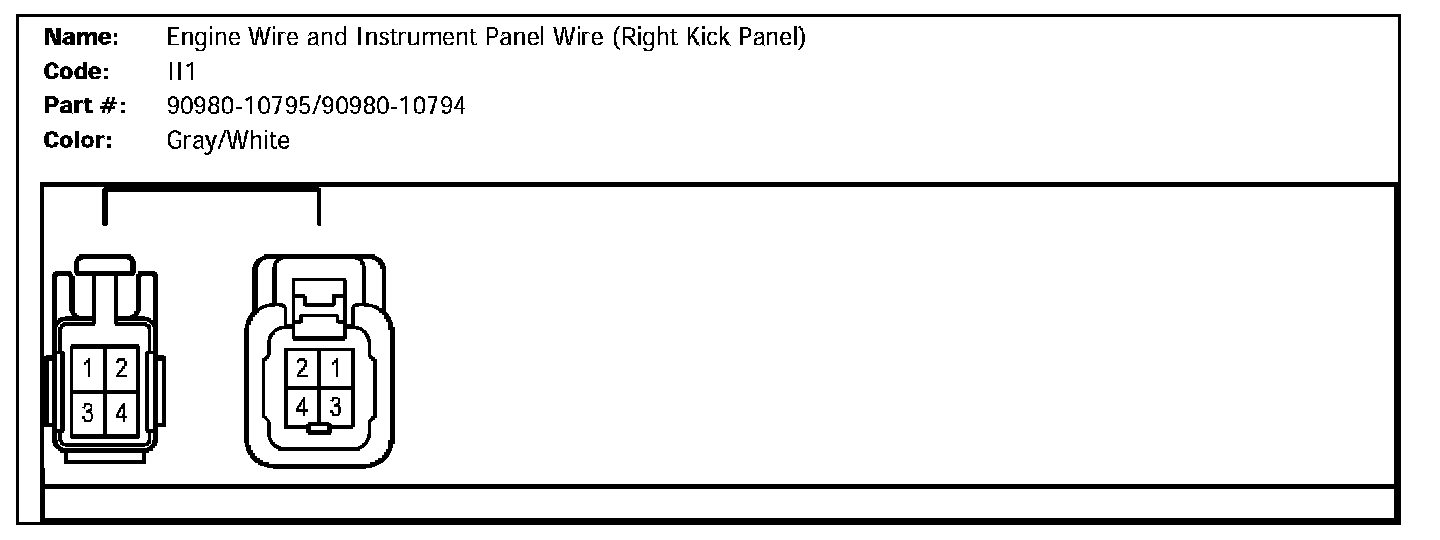

II1 (Engine Wire And Instrument Panel Wire (Right Kick Panel)):

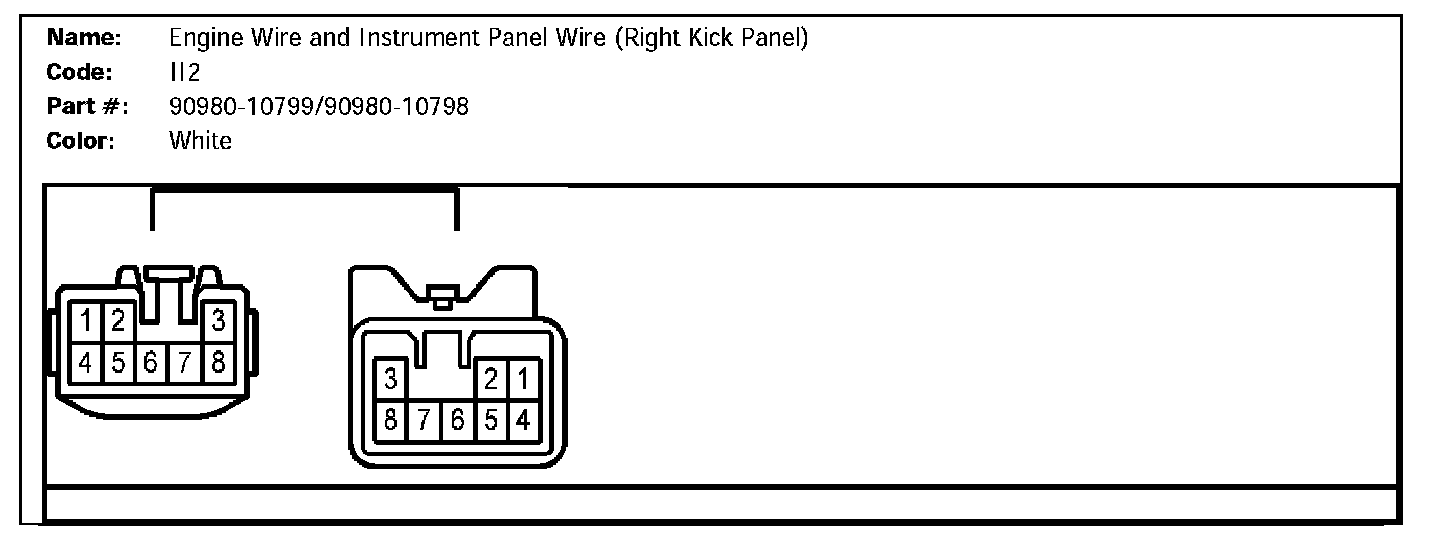

II2 (Engine Wire And Instrument Panel Wire (Right Kick Panel)):

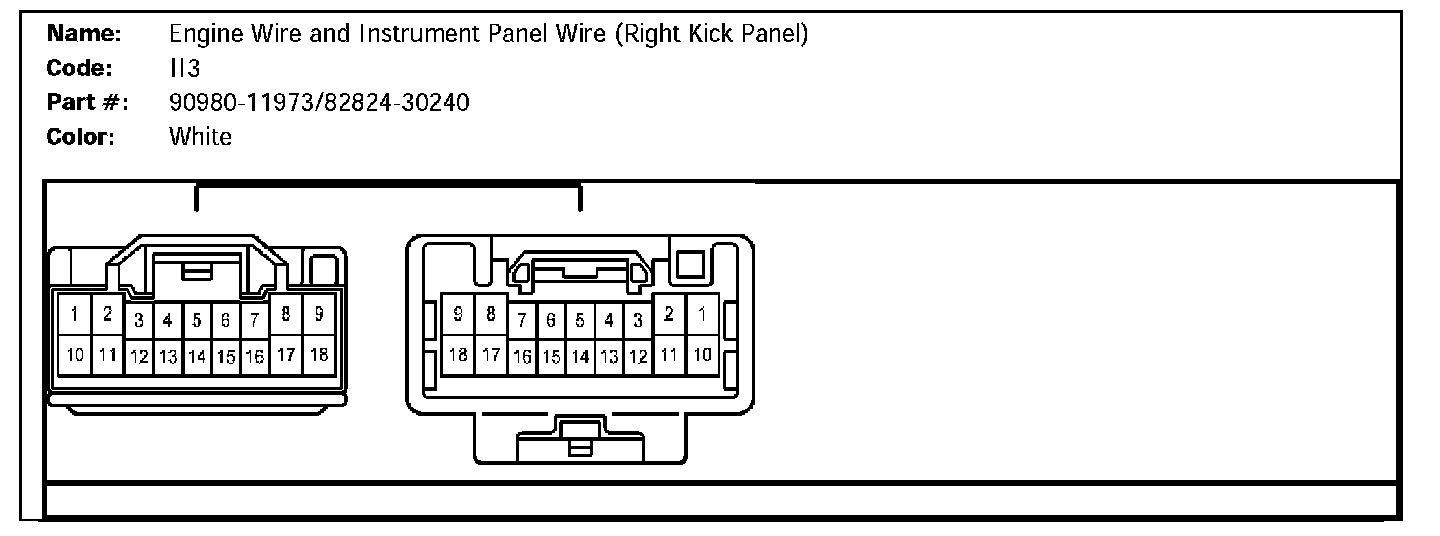

II3 (Engine Wire And Instrument Panel Wire (Right Kick Panel)):

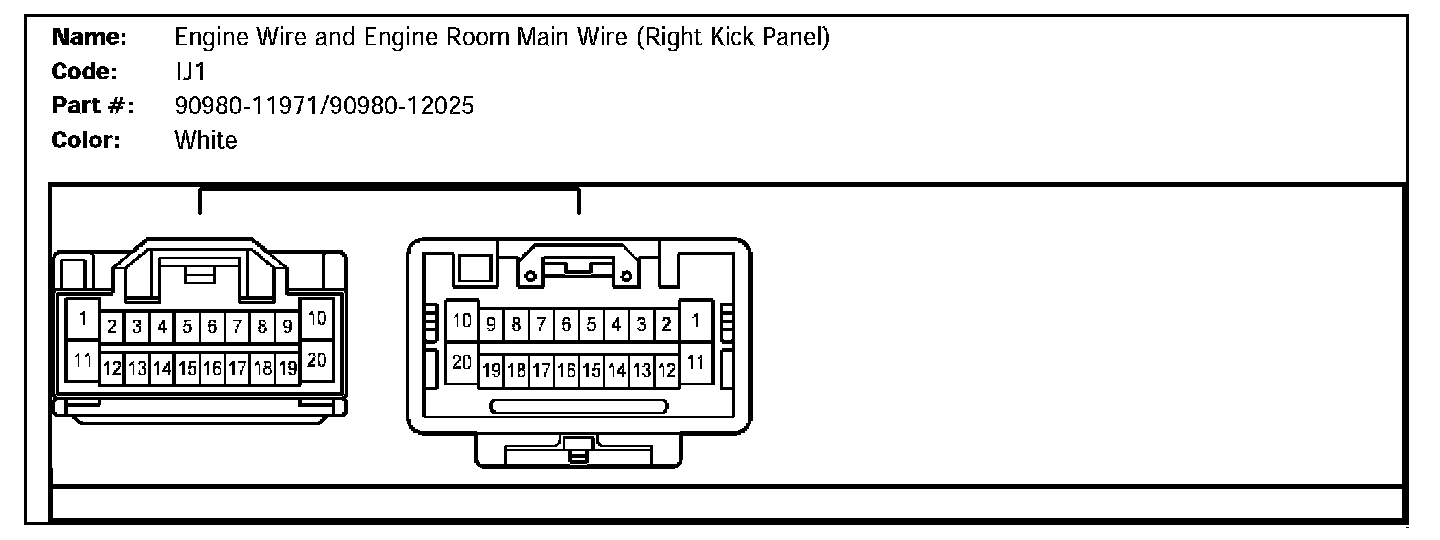

IJ1 (Engine Wire And Engine Room Main Wire (Right Kick Panel)):

IK1 (Engine Room Main Wire And Instrument Panel Wire (Right Kick Panel)):

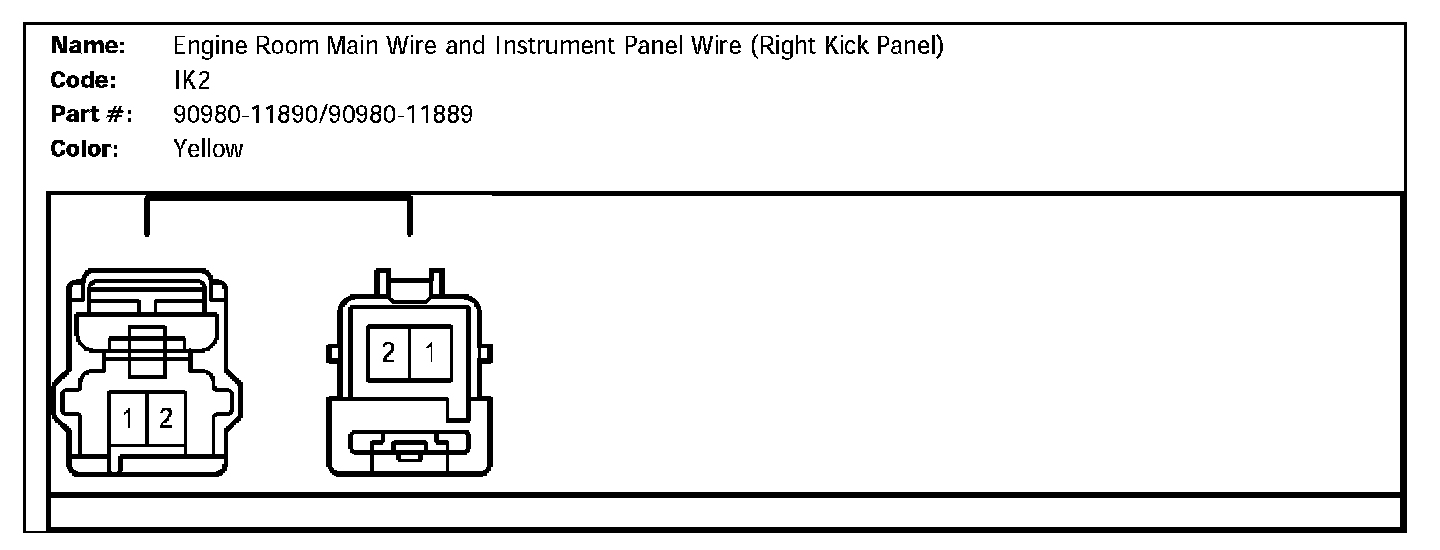

IK2 (Engine Room Main Wire And Instrument Panel Wire (Right Kick Panel)):

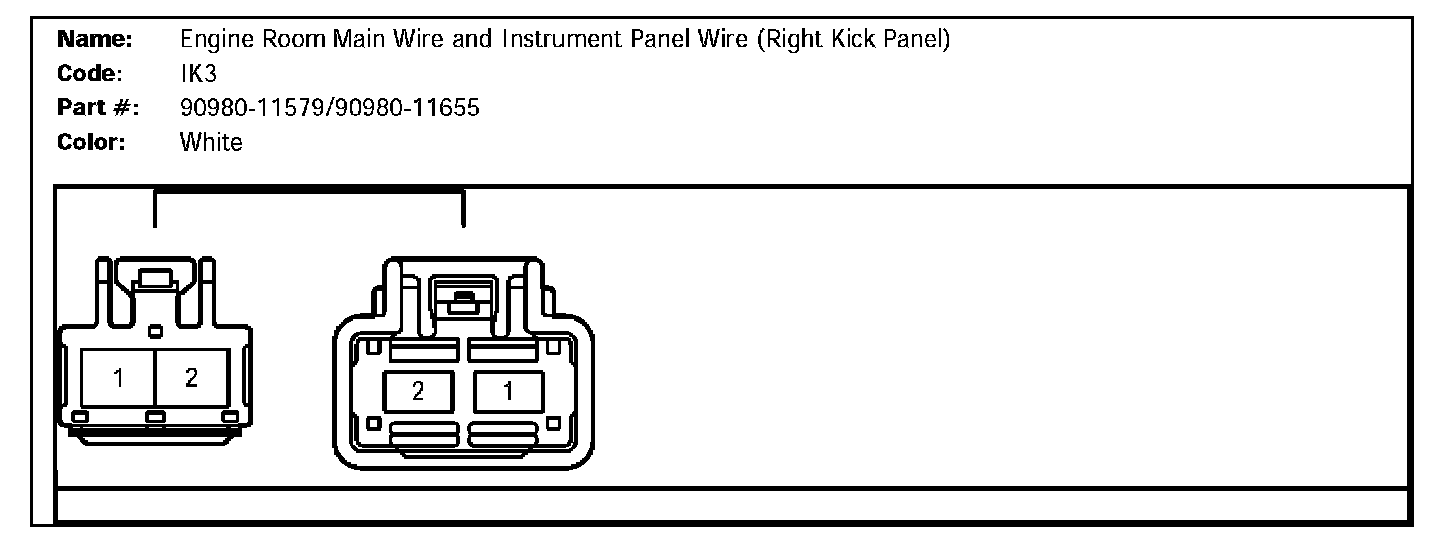

IK3 (Engine Room Main Wire And Instrument Panel Wire (Right Kick Panel)):

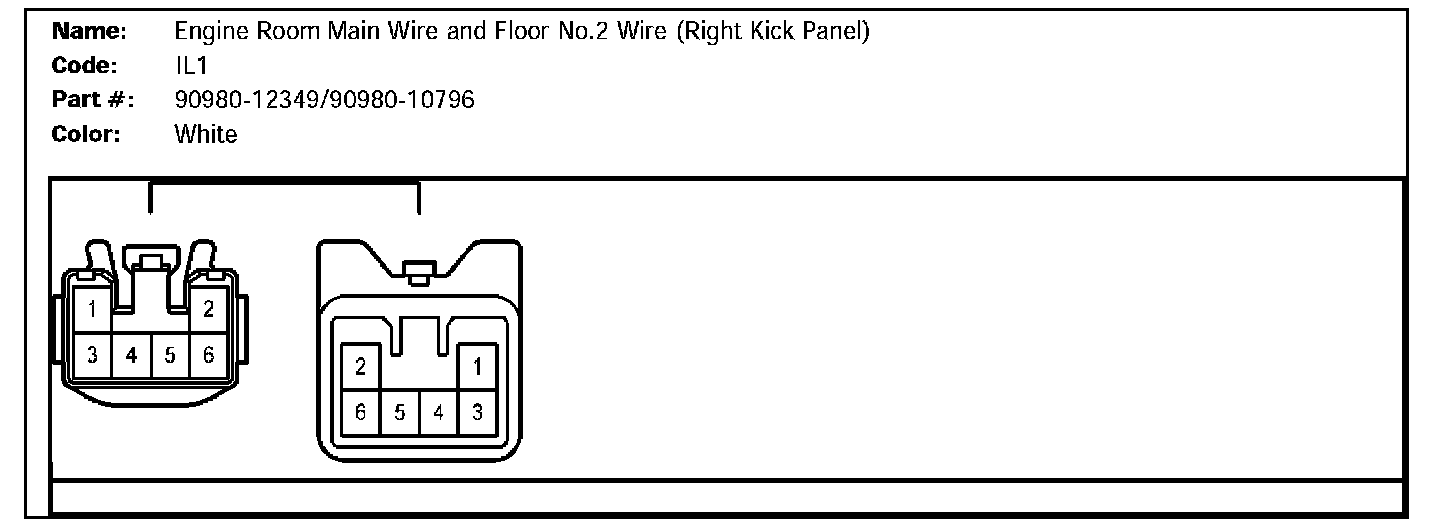

IL1 (Engine Room Main Wire And Floor No.2 Wire (Right Kick Panel)):

IL2 (Engine Room Main Wire And Floor No.2 Wire (Right Kick Panel)):
