Toyota Truck
>>
2008
>>
Sienna AWD V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Marker Lamp
Marker Lamp

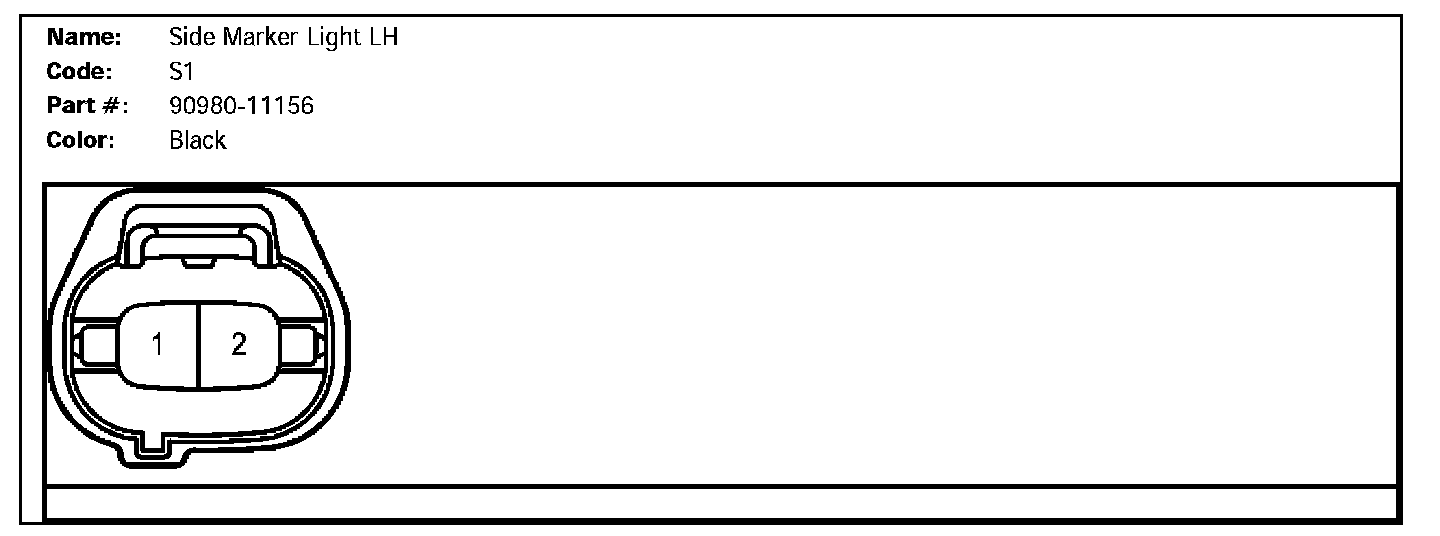

S1 (Side Marker Light LH):

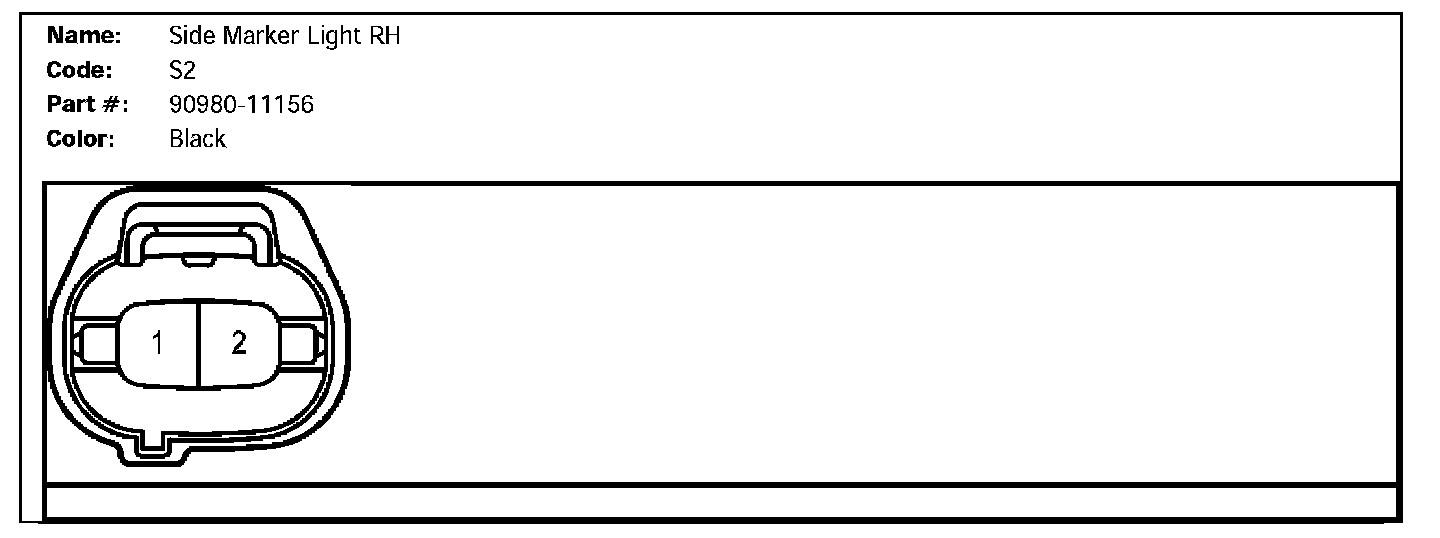

S2 (Side Market Light RH):
