Toyota Truck
>>
2008
>>
Sienna AWD V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Disc Brake System
>>
Service and Repair
>>
Rear Disc Brake
>>
Components
Components

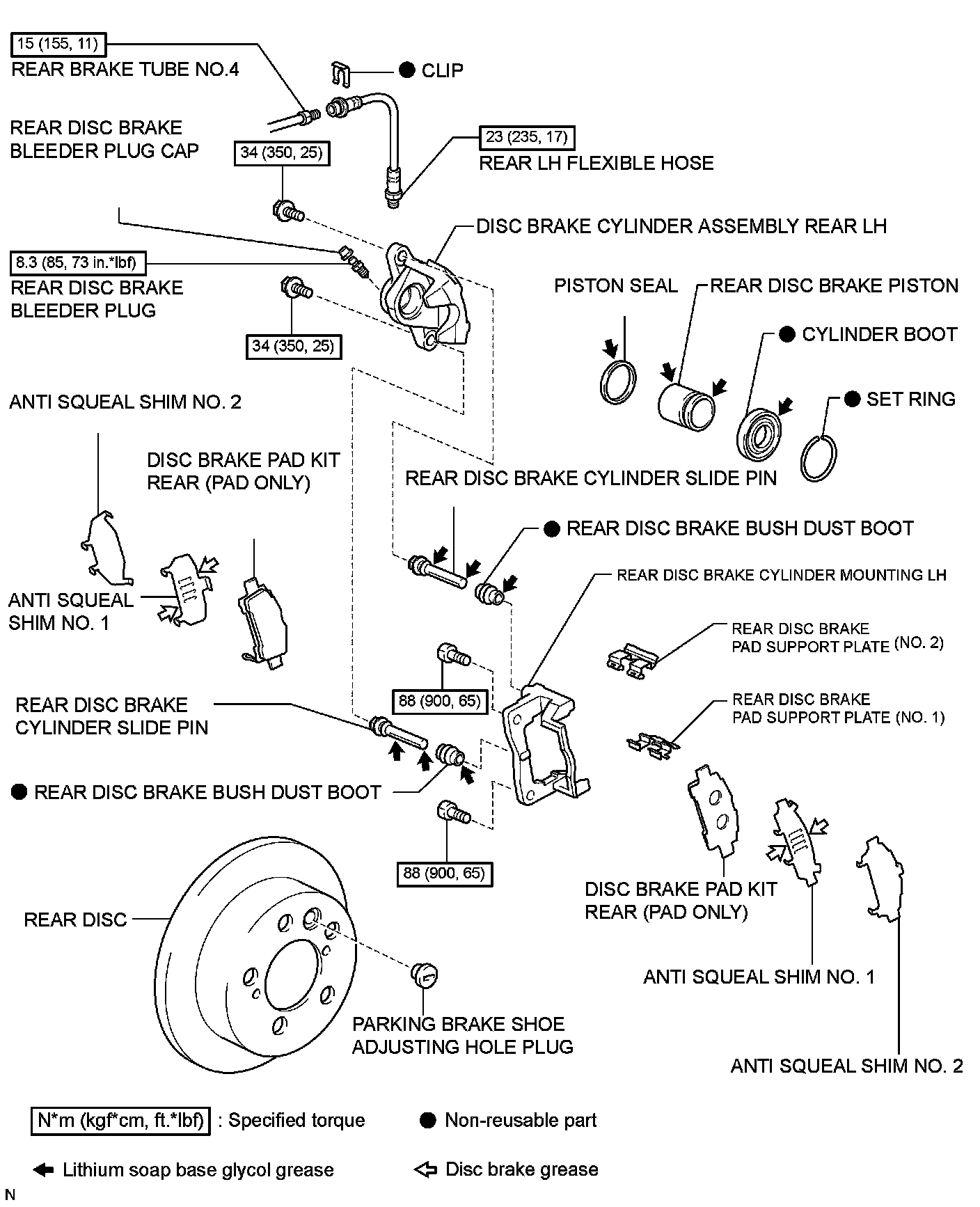

BRAKE: REAR DISC BRAKE: COMPONENTS
COMPONENTS
ILLUSTRATION
