BRAKE CONTROL: FRONT SPEED SENSOR: INSTALLATION

INSTALLATION
HINT: Install the RH side by the same procedures with LH side.

1. INSTALL FRONT SPEED SENSOR LH

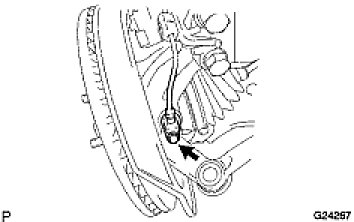

(a) Install the speed sensor front LH with the bolt.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)
NOTE: Keep the tip of the front speed sensor LH.

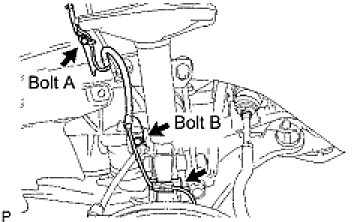

(b) Install the sensor harness clamps with the 2 bolts A and B to the body and shock absorber.
Bolt A - Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)
Bolt B - Torque: 19 Nm (192 kgf-cm, 14 ft-lbf)
NOTE: Do not twist the sensor wire when installing the sensor.

(c) Connect the clamp to the knuckle.

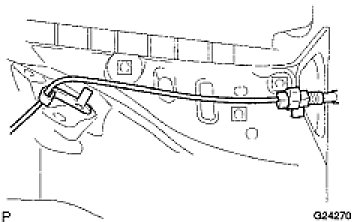

(d) Install the sensor harness and clamp to the body.






(e) Connect the speed sensor connector.
2. INSTALL FRONT FENDER LINER LH
3. REMOVE FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft-lbf)
4. CHECK ABS SPEED SENSOR SIGNAL Test Mode Procedure
