Vehicle Stability Control System

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

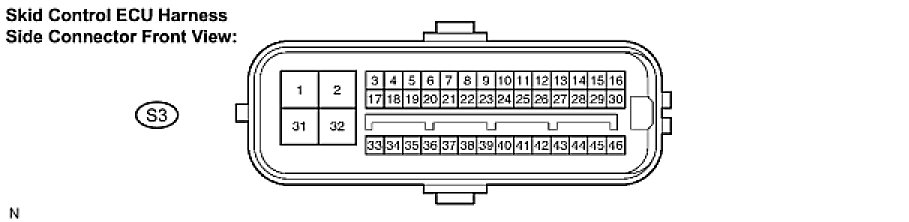

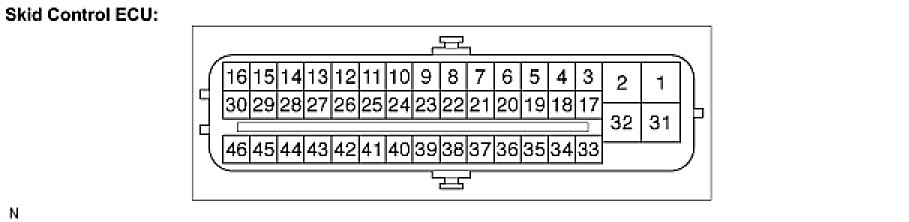

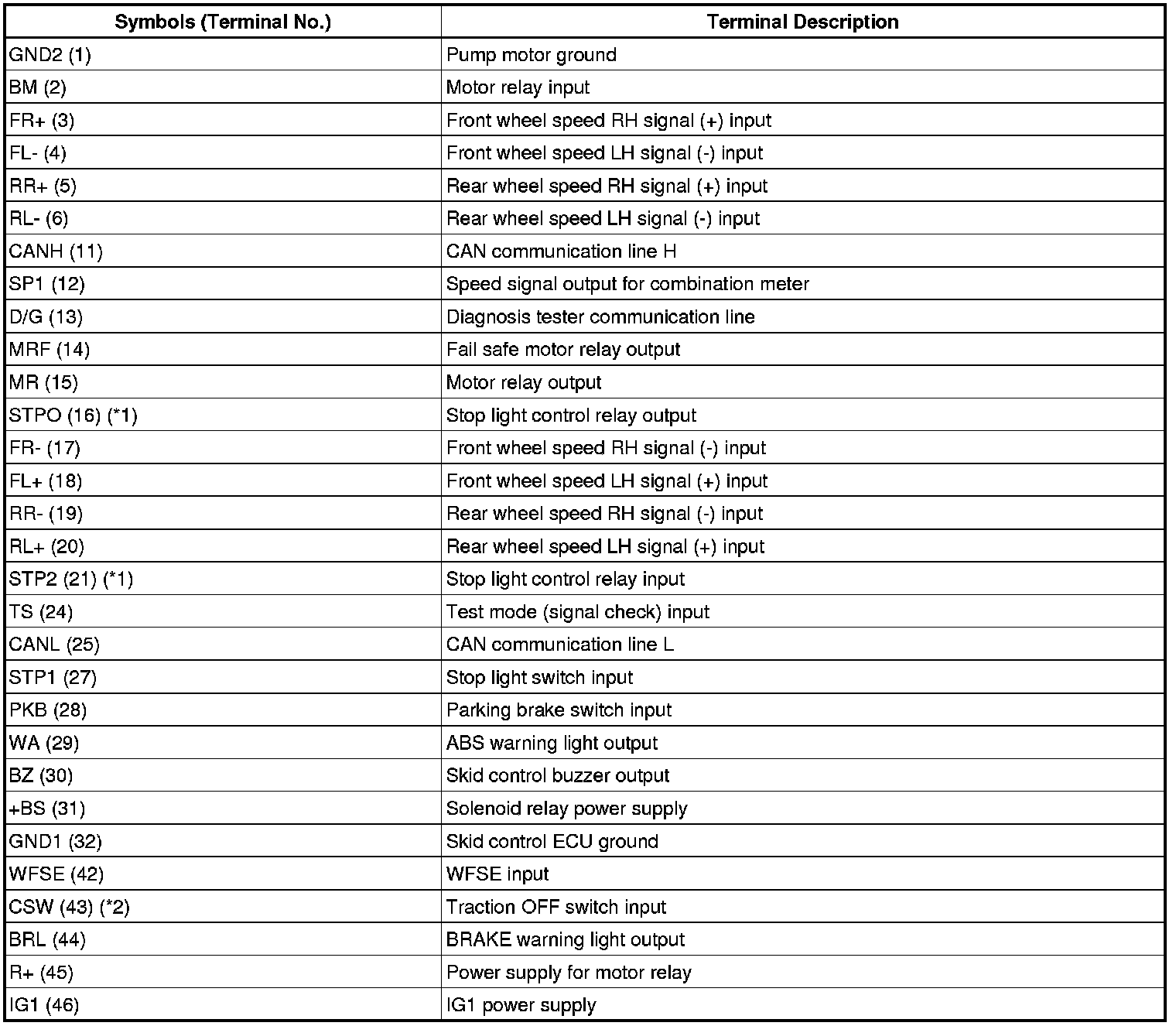

1. Terminal of ECU









(*1): Models with dynamic laser cruise control
(*2): 2WD model
2. Terminal Inspection
(a) Disconnect the connector and measure the voltage or resistance on the wire harness side.





HINT: Voltage cannot be measured with the connector connected to the skid control ECU because the connector is watertight.

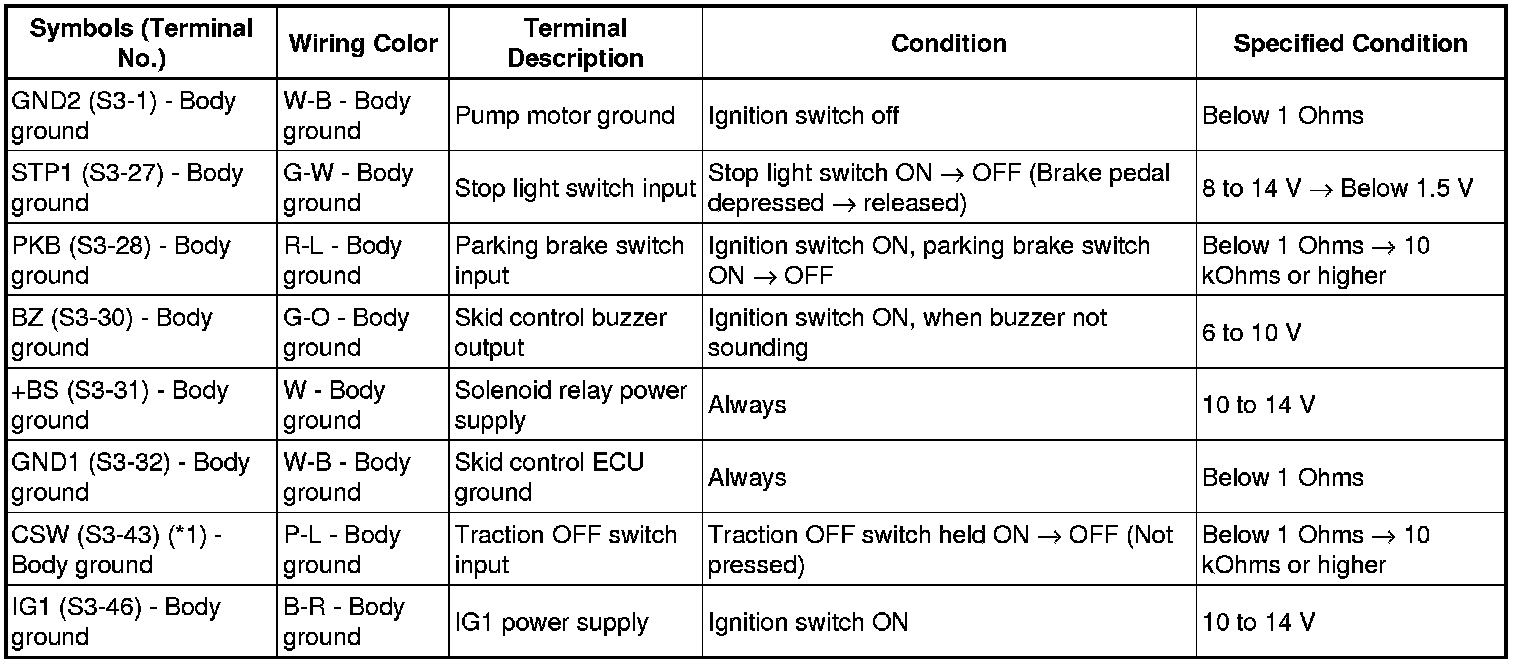

Standard:





(*1): 2WD model
