Removal

BRAKE CONTROL: STEERING ANGLE SENSOR: REMOVAL

REMOVAL

1. PRECAUTION Service Precautions

2. SEPARATE BATTERY NEGATIVE TERMINAL
3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
4. REMOVE HORN BUTTON ASSEMBLY Removal

5. REMOVE STEERING WHEEL ASSEMBLY Removal

6. REMOVE STEERING COLUMN COVER LWR Removal

7. REMOVE SPIRAL CABLE SUB-ASSEMBLY Removal

8. REMOVE STEERING ANGLE SENSOR

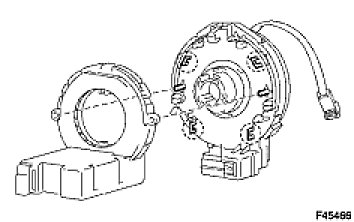

(a) Release the claw fittings and remove the steering sensor from the spiral cable.
