Front Power Seat Control System

SEAT: FRONT POWER SEAT CONTROL SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE
HINT:
- Inspect the fuse and relay before confirming the suspected areas in the table below.
- Inspect each suspected area in numerical order for the corresponding symptom.
HINT: If the malfunction still exists after checking and confirming that all circuits and components are normal, replace the ECU.

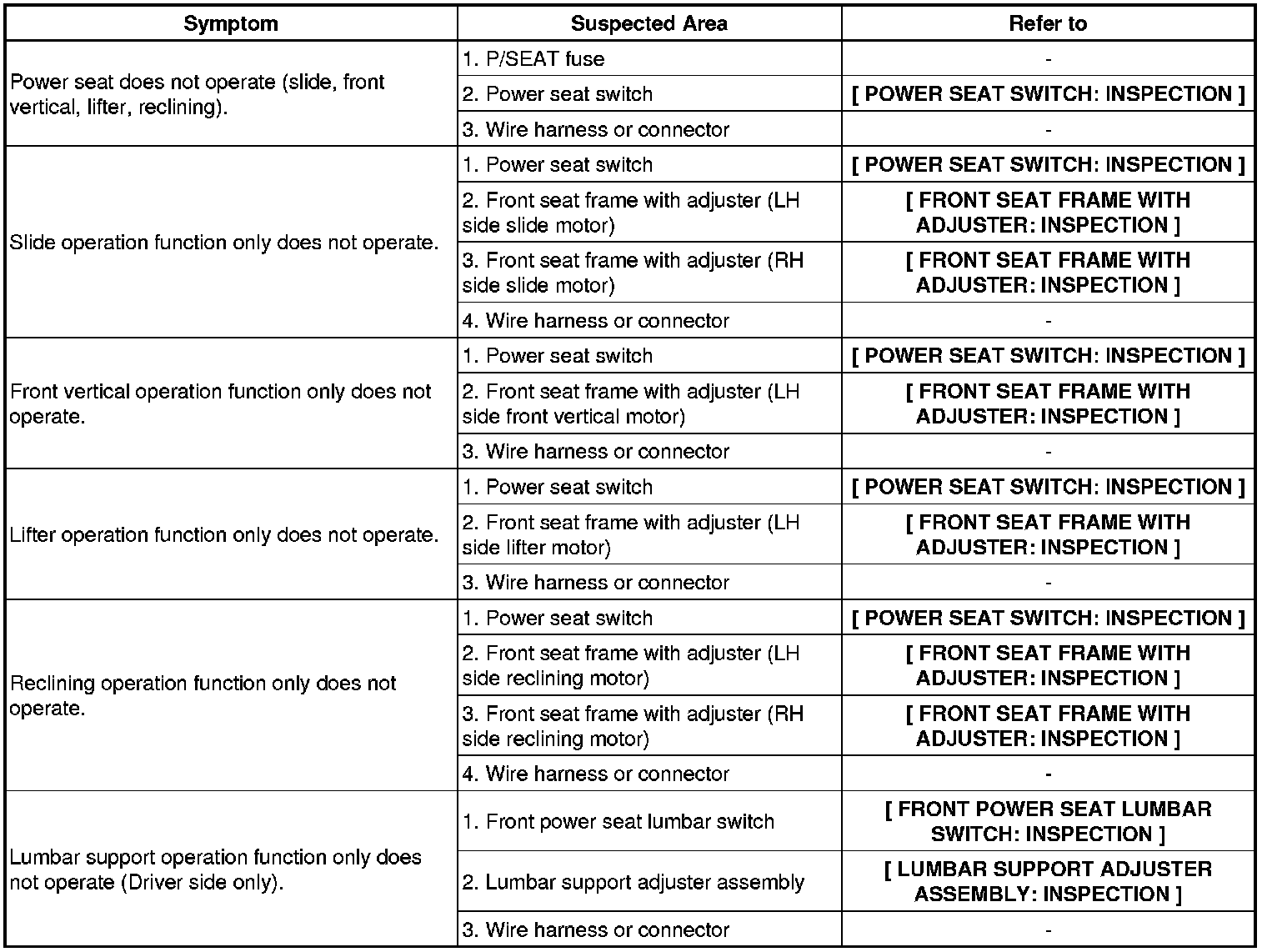

FRONT POWER SEAT CONTROL SYSTEM ( w/o MEMORY)

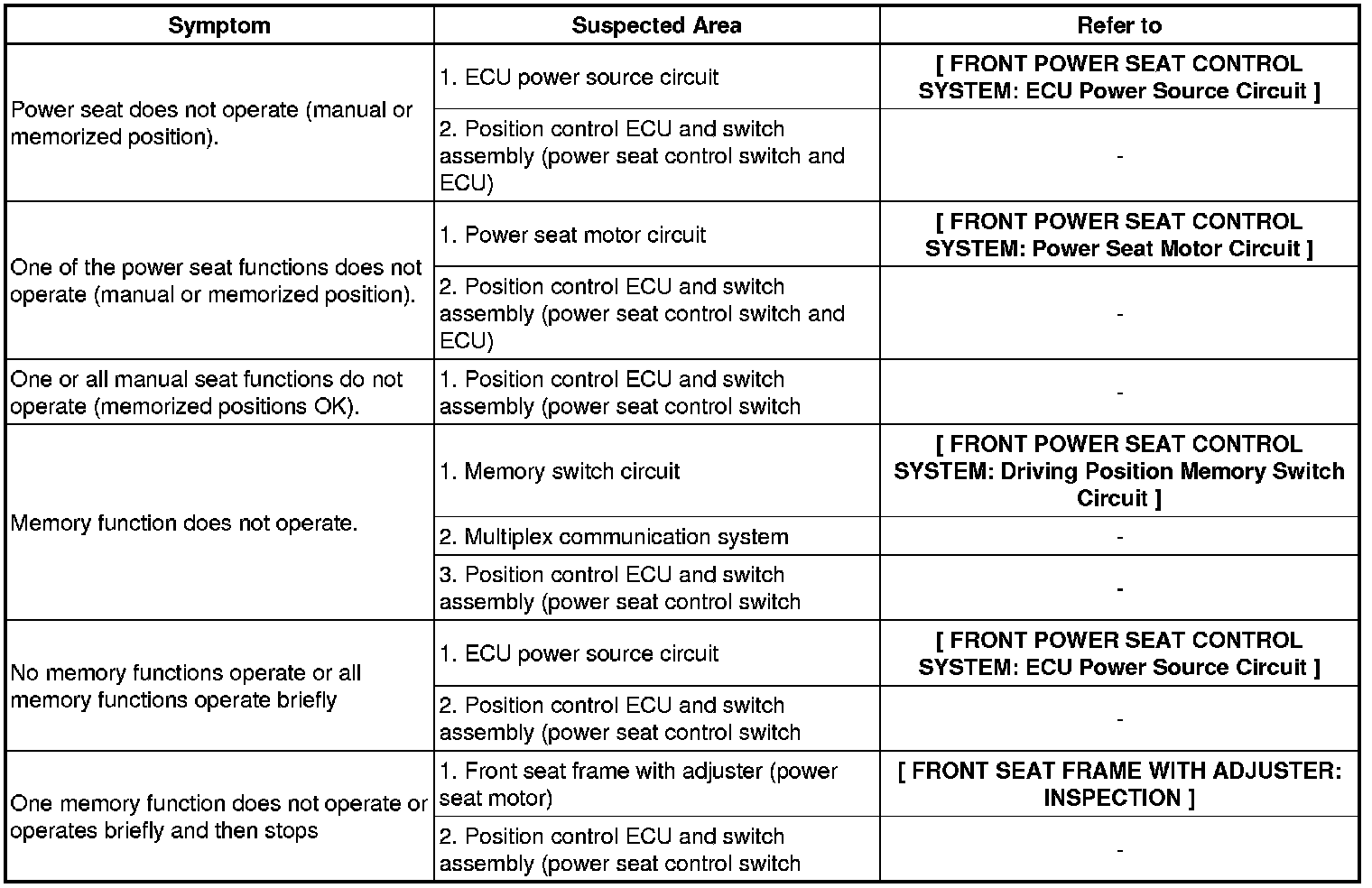

FRONT POWER SEAT CONTROL SYSTEM ( w/ MEMORY)
