Console Lamp: Testing and Inspection

LIGHTING: PERSONAL LIGHT ASSEMBLY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. ROOF CONSOLE BOX ASSEMBLY






(a) Inspect map light assembly resistance.

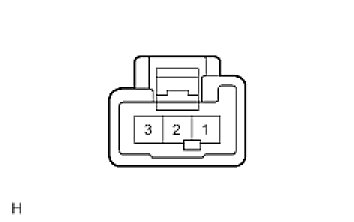

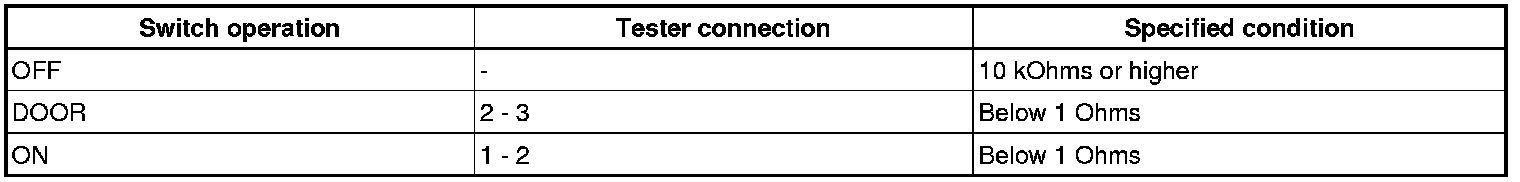

(1) Check the resistance between the terminals at each switch position as shown in the chart.
Resistance:
