Installation

NAVIGATION: NAVIGATION RECEIVER: INSTALLATION

INSTALLATION

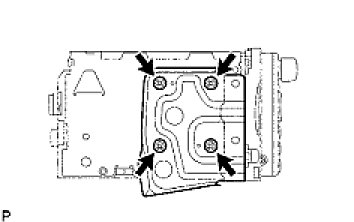

1. INSTALL NO.1 NAVIGATION BRACKET






(a) Install the No.1 navigation bracket with the 4 screws.

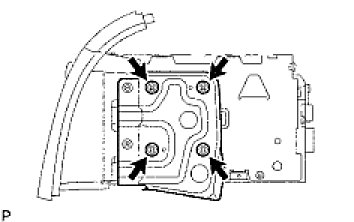

2. INSTALL NO.2 NAVIGATION BRACKET






(a) Install the No.2 navigation bracket with the 4 screws.
3. INSTALL INSTRUMENT CLUSTER FINISH PANEL UPPER






(a) Install the instrument cluster finish panel upper with the 4 screws.

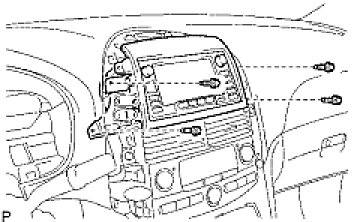

4. INSTALL NAVIGATION RECEIVER ASSEMBLY WITH BRACKET






(a) Connect the connector.
(b) Install the navigation receiver assembly with bracket with the 4 screws.
