ABS (Antilock Brake System)

BRAKE CONTROL: ANTI-LOCK BRAKE SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT:
- If a trouble code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, turn to the respective DTC Code. in the DTC chart.
- Inspect the fuse and relay before investigating the trouble areas as shown in the table below.

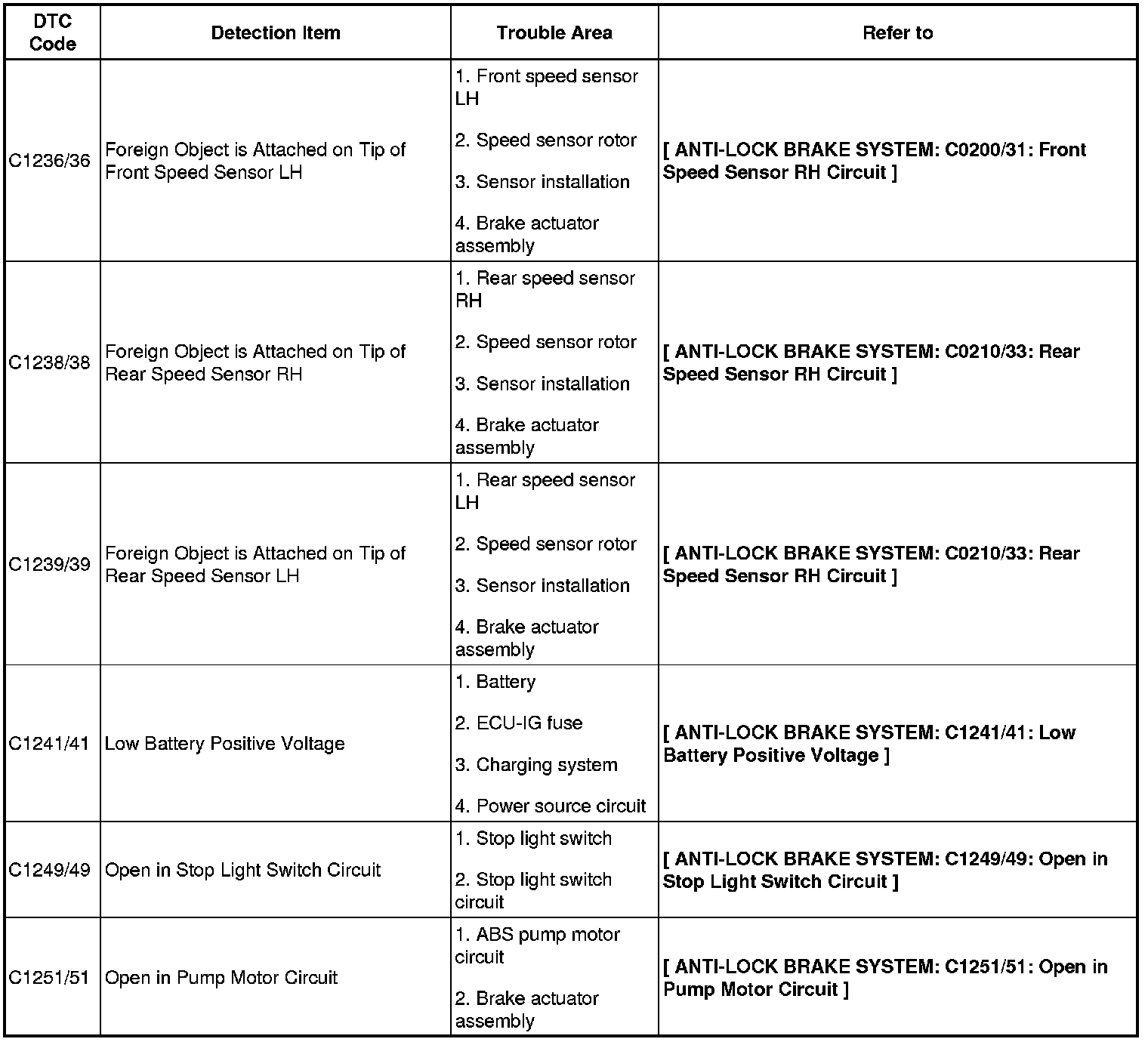

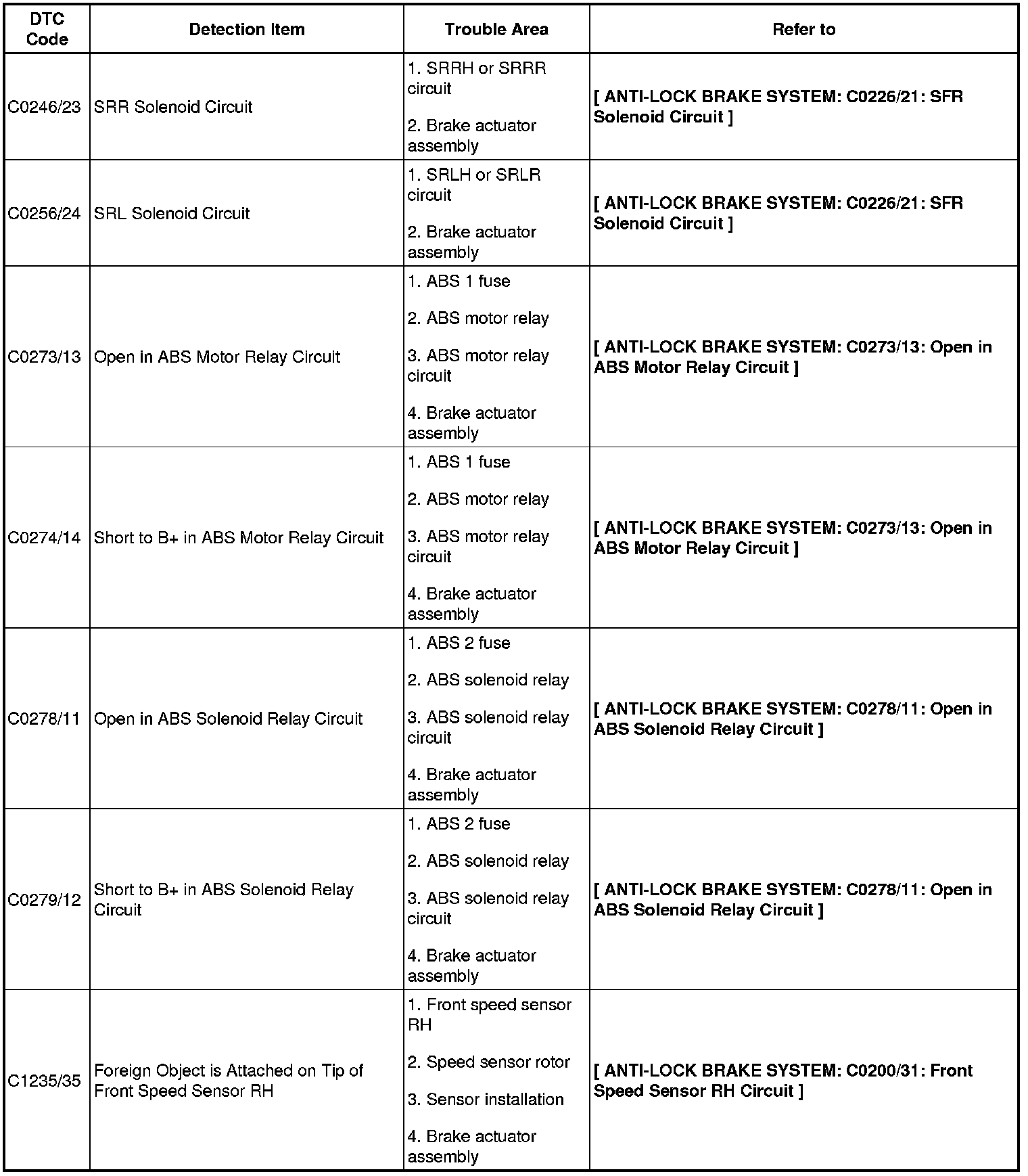

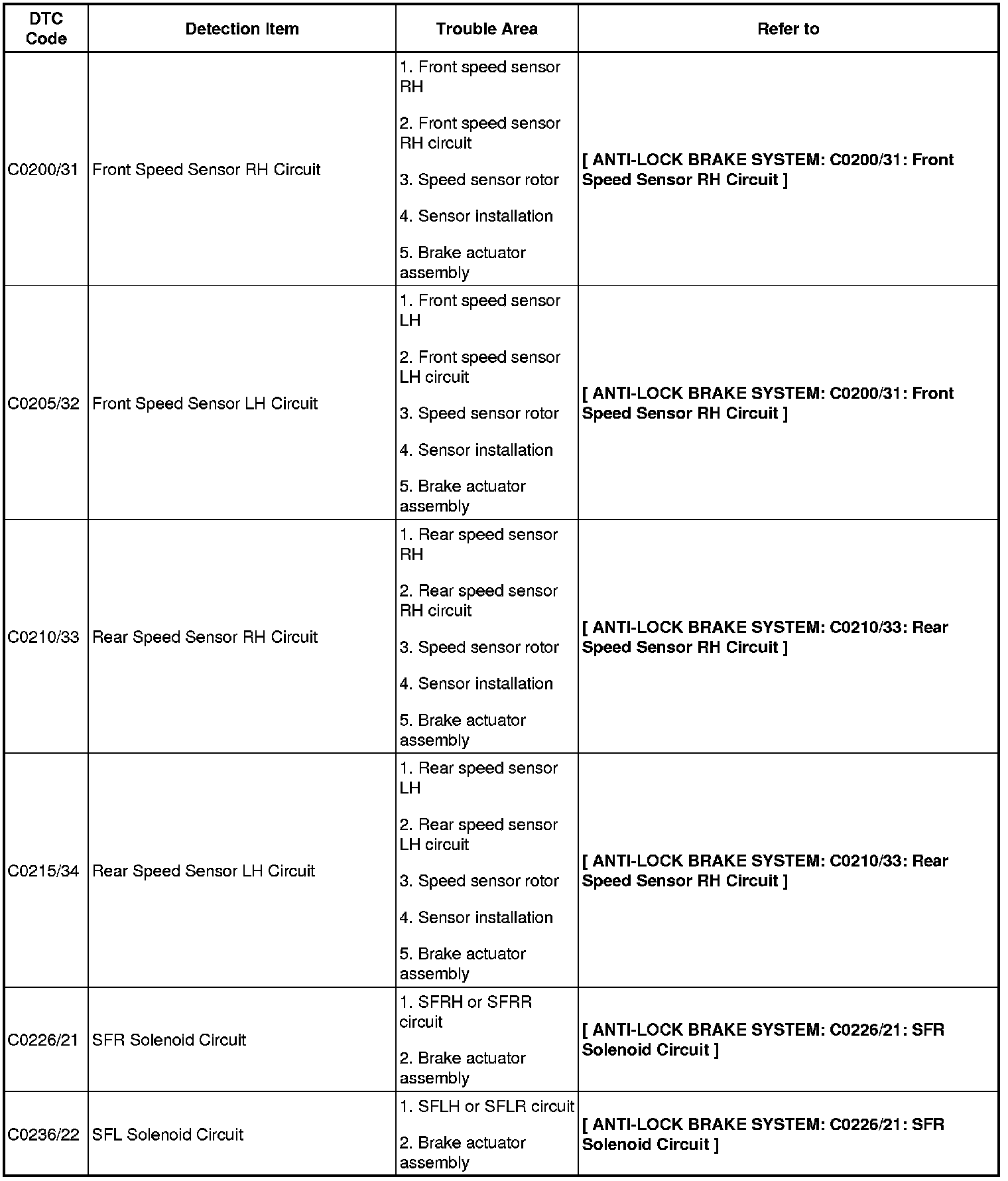

DTC chart of ABS:













Test Mode DTC of ABS:
