Rear Power Window Switch

WINDOW / GLASS: REAR POWER WINDOW SWITCH: INSPECTION

INSPECTION

1. INSPECT REAR POWER WINDOW SWITCH






(a) Check the resistance.
(1) Measure the resistance according to the value(s) in the table below.

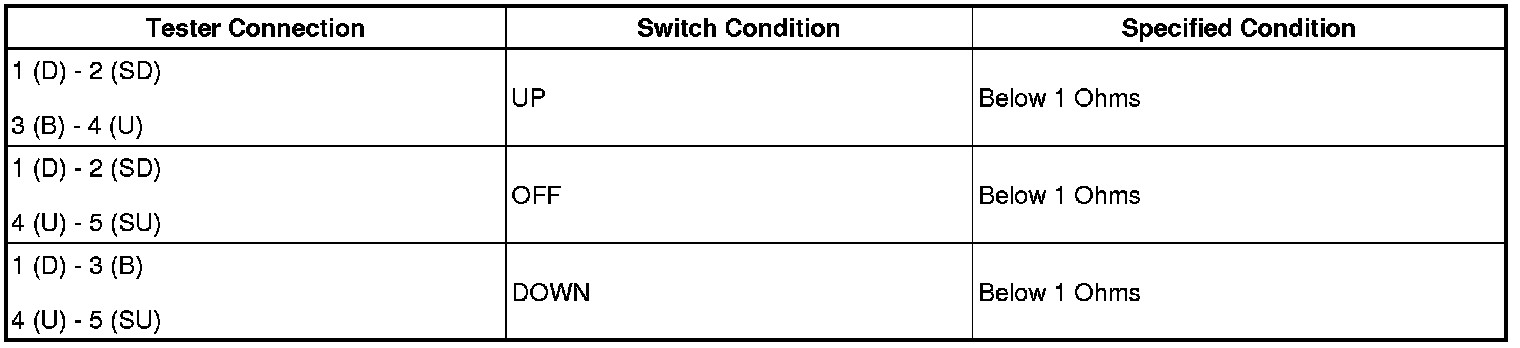

Standard Resistance:






If the result is not as specified, replace the power window switch.
