Removal

WINDOW / GLASS: FRONT PASSENGER SIDE POWER WINDOW SWITCH: REMOVAL

REMOVAL

1. REMOVE FRONT ARMREST BASE UPPER PANEL RH Disassembly

2. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY

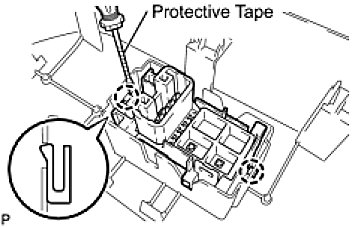

(a) Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and remove the power window regulator switch.
