Removal

AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: PARK / NEUTRAL POSITION SWITCH: REMOVAL

REMOVAL

1. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY






(a) Remove the nut and disconnect the cable.
2. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY
(a) Disconnect the switch connector.






(b) Remove the nut, spring washer and transmission control shaft lever RH.

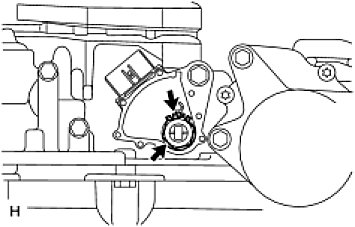

(c) Using a screwdriver, bend the tabs of the lock washer.






(d) Remove the lock nut and lock washer.






(e) Remove the bolt and switch.
