System Diagram

AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM

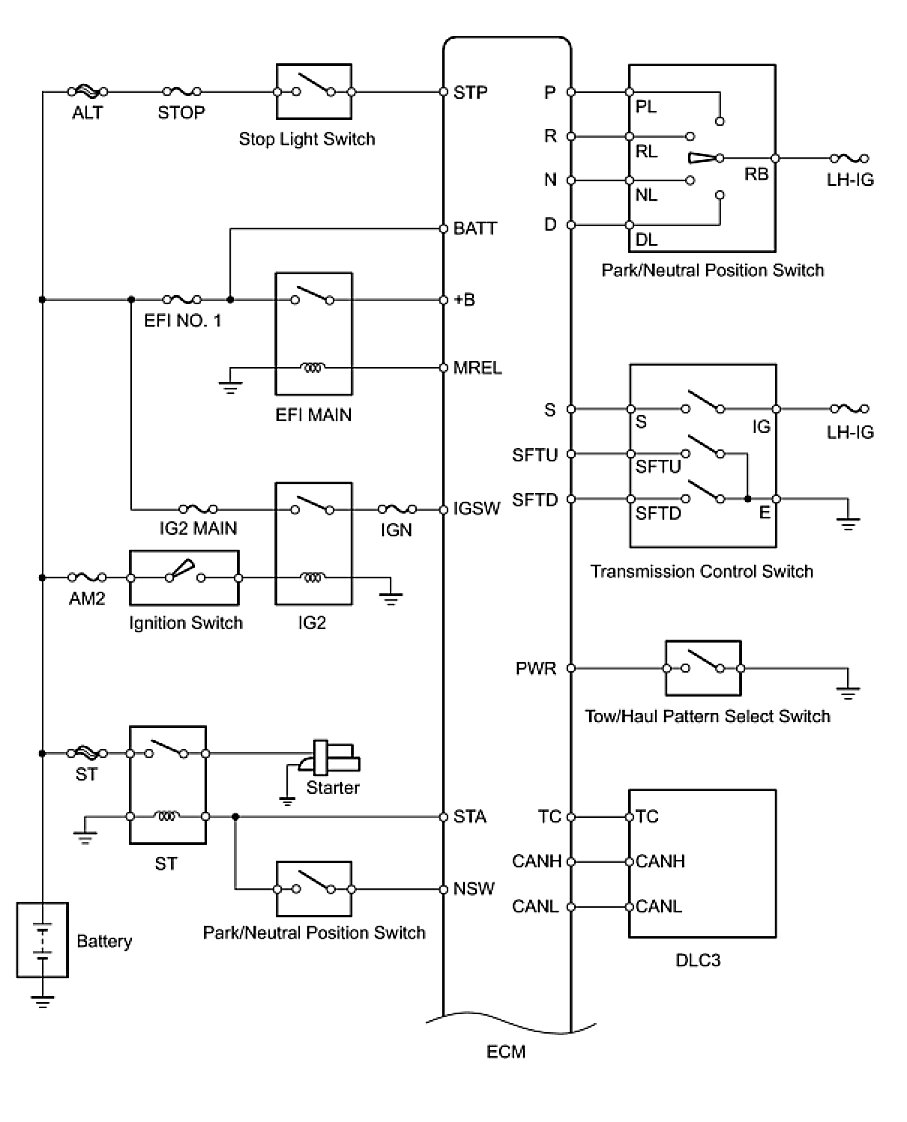

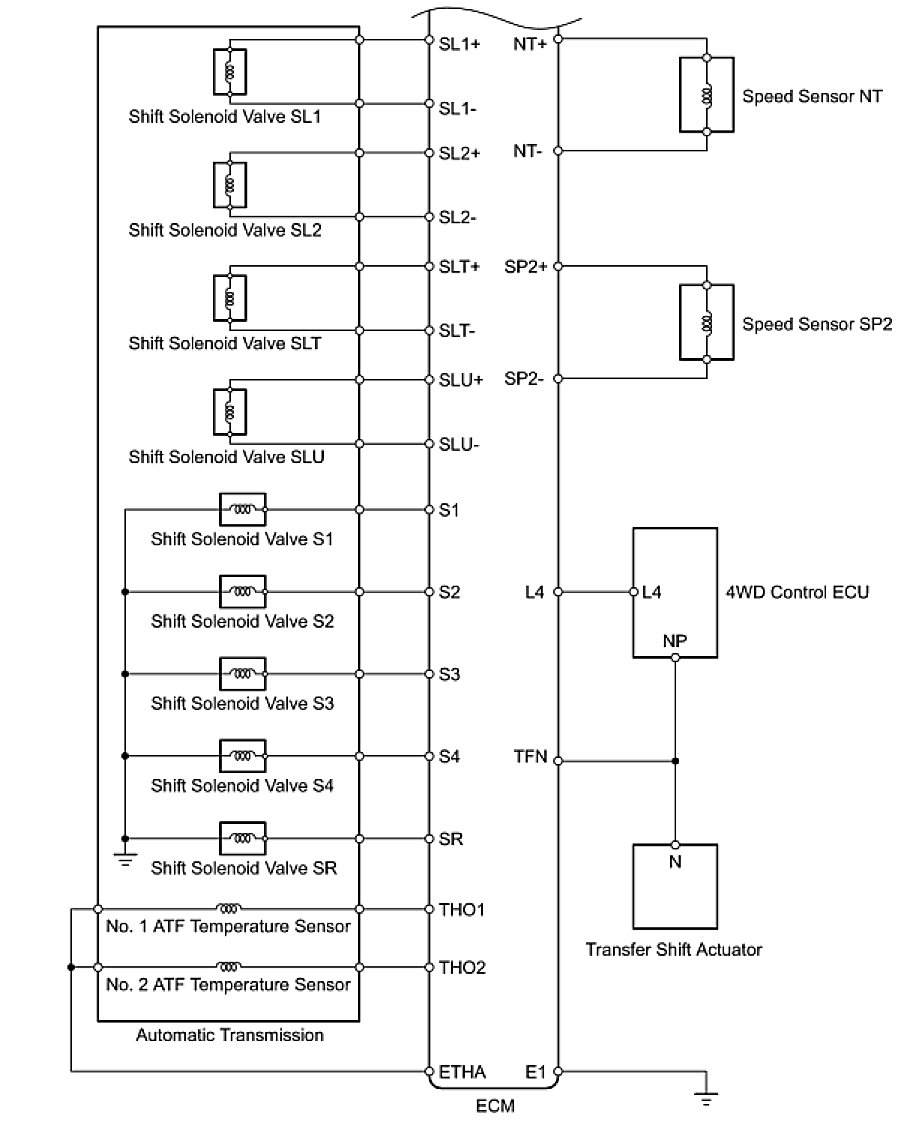

The configuration of the electronic control system in the AB60F automatic transmission is as shown in the following chart.
