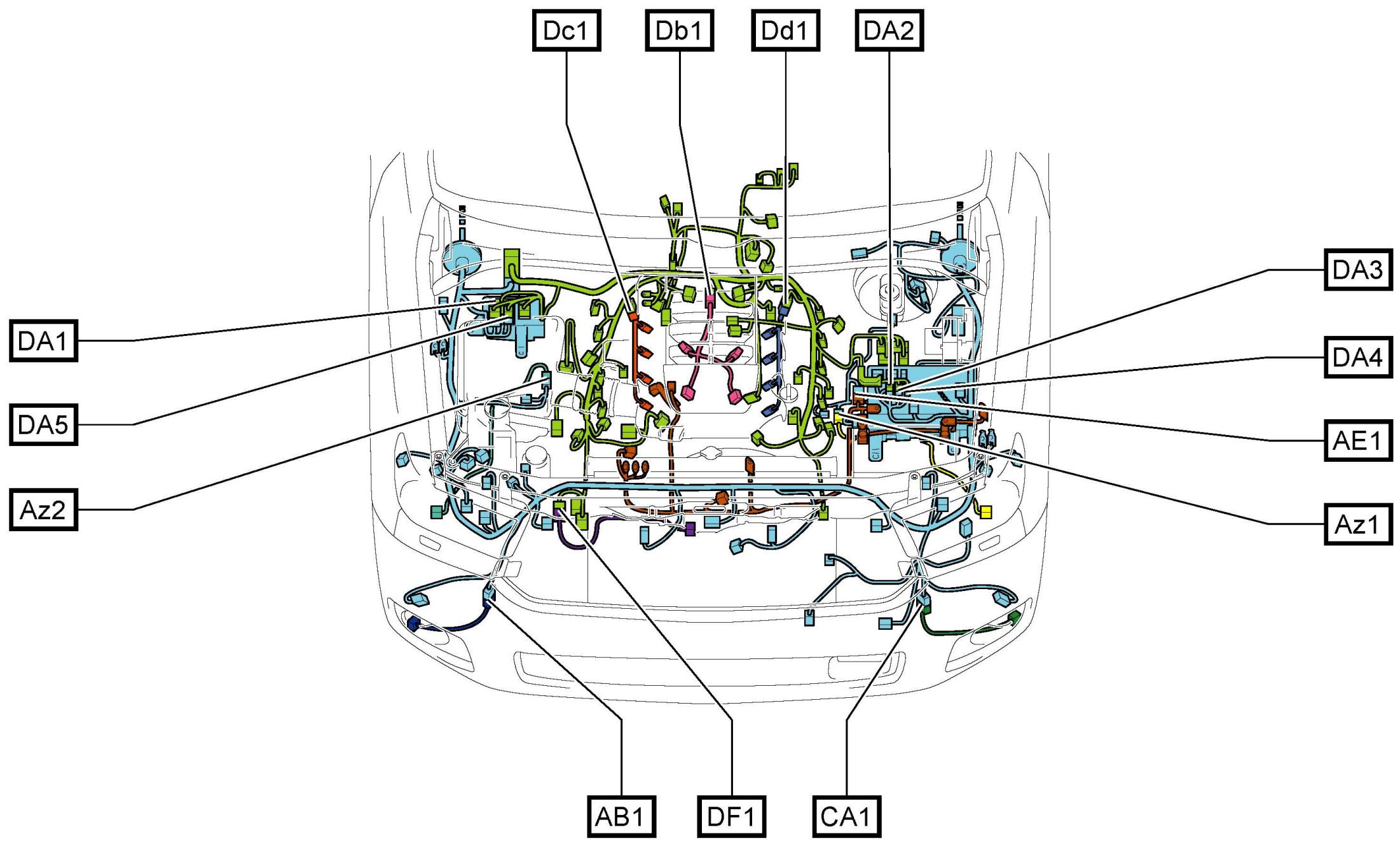

Multiple Junction Connector: Locations
Oa1-PY1:
Oa1-PY1:

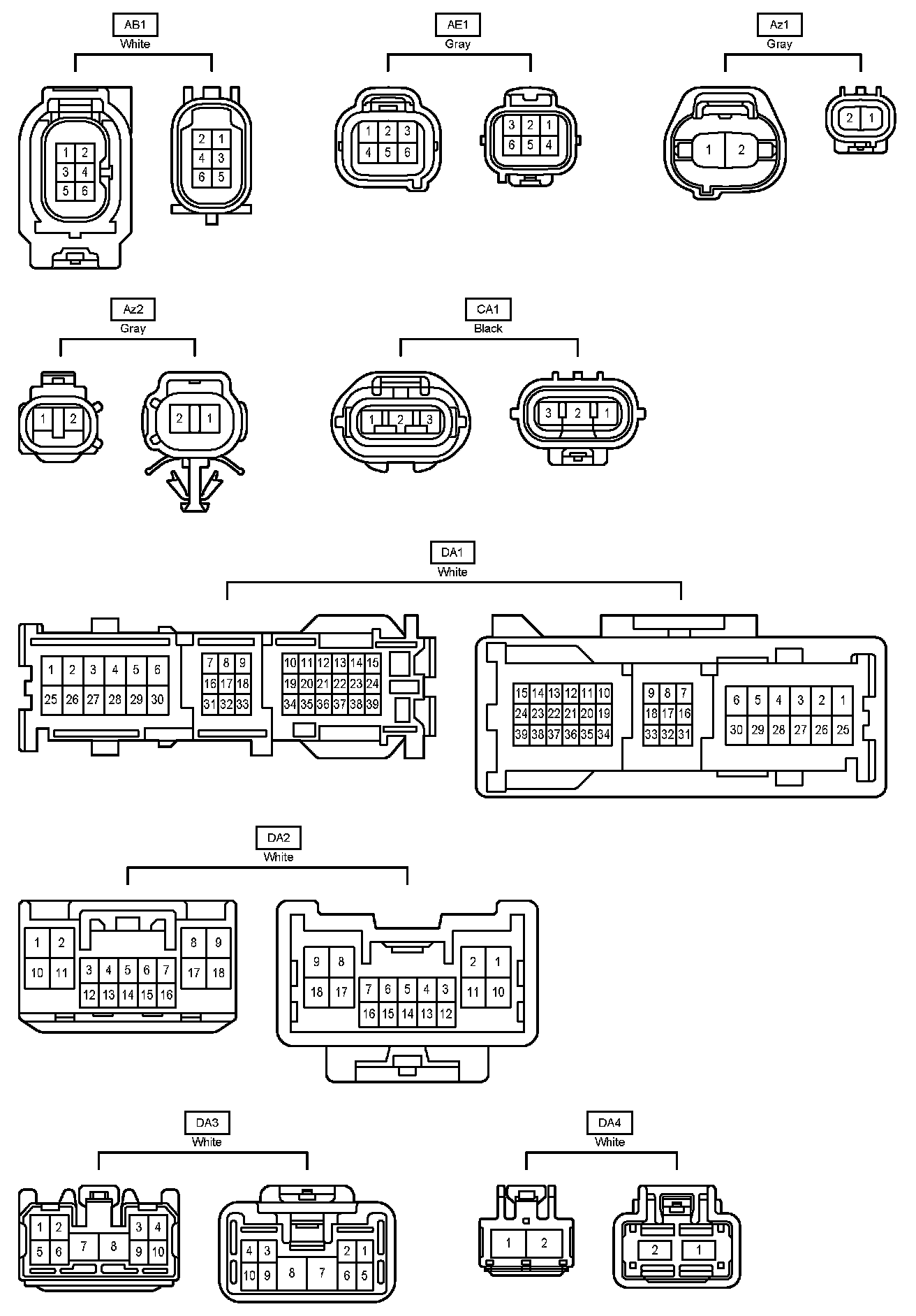

AB1-DF1:
AB1-DA4:

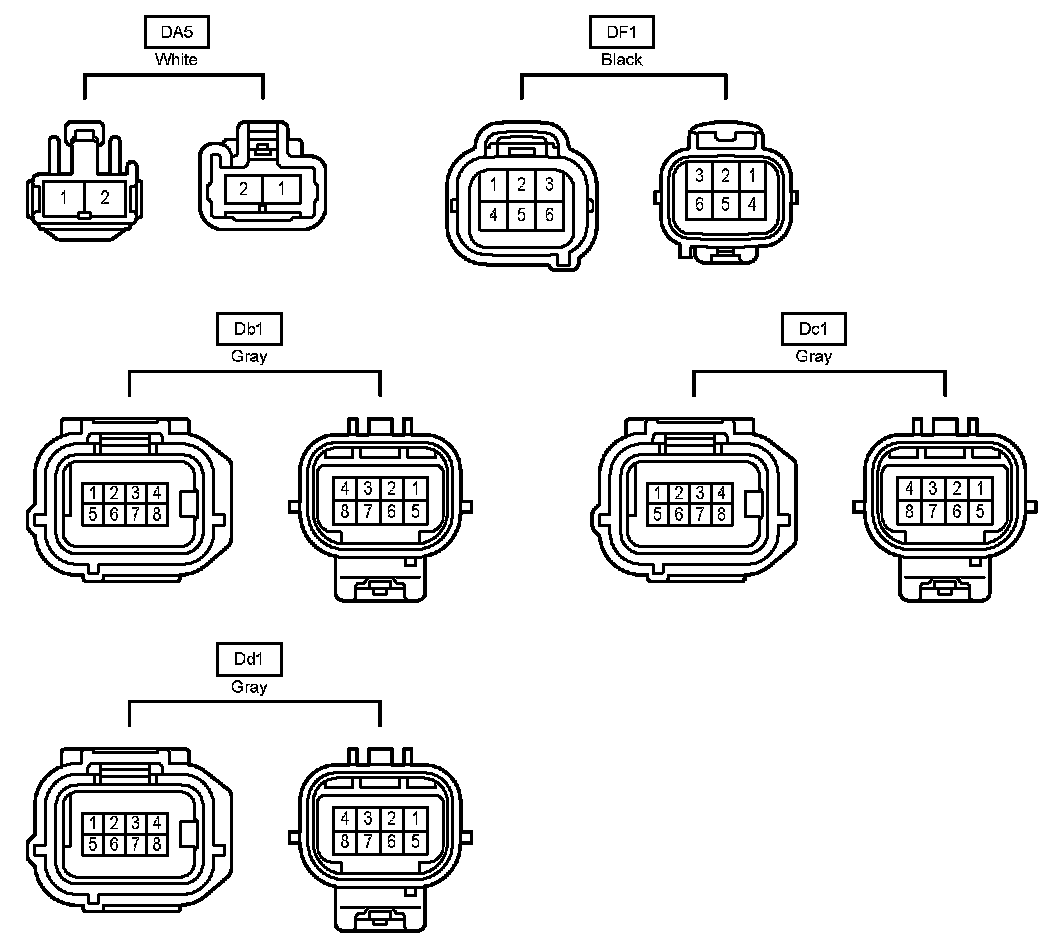

DA5-Dd1:
NO1-VO3:
NO1-OQ1:
OQ2-VO2:
VO3:
OX1-PW2:
OX1-PW2:
AH1-SH2:
AH1-AH8:
AH9-HH1:
HI1-HP1:
HP2-JH1:
LH1-MO1:
OA1-PI1:
SH1-SH2:
