Room Temperature Sensor (For Front Air Conditioning)

HEATING / AIR CONDITIONING: ROOM TEMPERATURE SENSOR (for Front Side): INSPECTION

INSPECTION

1. INSPECT ROOM TEMPERATURE SENSOR (COOLER THERMISTOR)

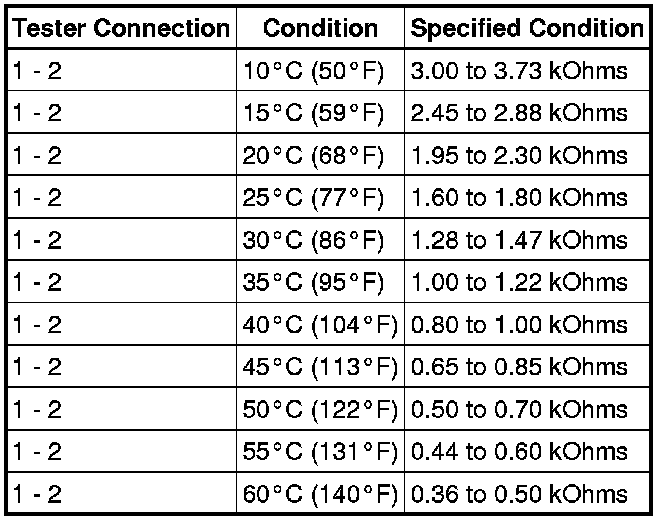

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





- Even slightly touching the sensor may change the resistance value. Be sure to hold the sensor connector.
- When measuring, the sensor temperature must be the same as the ambient temperature.

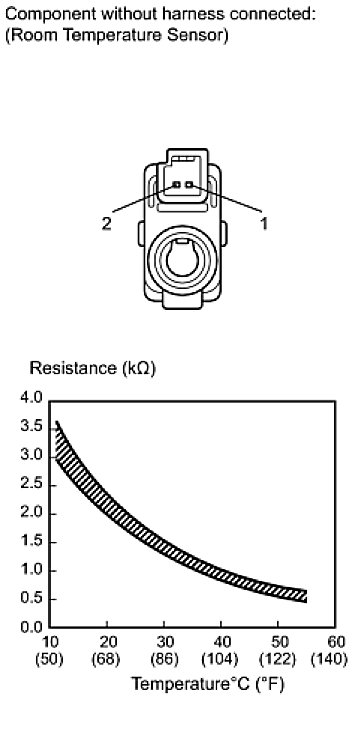

HINT: As the temperature increases, the resistance decreases (see the graph).
If the resistance is not as specified, replace the room temperature sensor.
