Removal

HEATING / AIR CONDITIONING: ROOM TEMPERATURE SENSOR (for Rear Side): REMOVAL

REMOVAL





1. REMOVE ROOM TEMPERATURE SENSOR (COOLER (DUCT SENSOR) THERMISTOR)

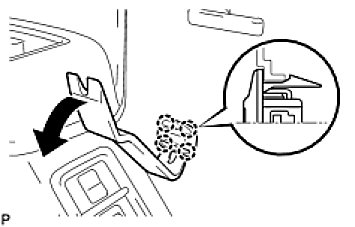

(a) Using a moulding remover, disengage the 4 claws and remove the rear room temperature sensor.
(b) Disconnect the connector.
