HEATING / AIR CONDITIONING: ROOM TEMPERATURE SENSOR (for Rear Side): INSTALLATION

INSTALLATION





1. INSTALL ROOM TEMPERATURE SENSOR (COOLER (DUCT SENSOR) THERMISTOR)
(a) Connect the connector.

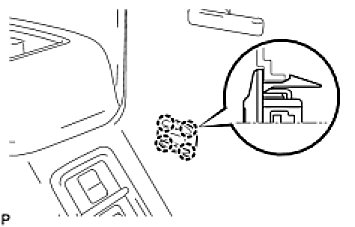

(b) Engage the 4 claws and install the rear room temperature sensor.
