HEATING / AIR CONDITIONING: ROOM TEMPERATURE SENSOR (for Front Side): INSTALLATION

INSTALLATION

1. INSTALL ROOM TEMPERATURE SENSOR (COOLER THERMISTOR)

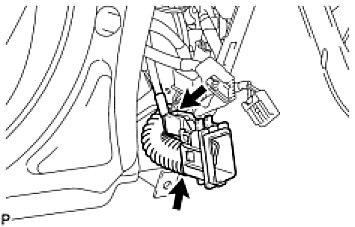

(a) Connect the connector, hose and install the room temperature sensor.
2. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH Installation

3. INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY Installation

4. INSTALL INSTRUMENT SIDE PANEL LH Installation

5. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH Installation

6. INSTALL COWL SIDE TRIM BOARD LH Installation

7. INSTALL FRONT DOOR SCUFF PLATE LH Installation
