Toyota Truck
>>
2008
>>
Sequoia 4WD V8-5.7L (3UR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, Transfer Case
Control Module, Transfer Case

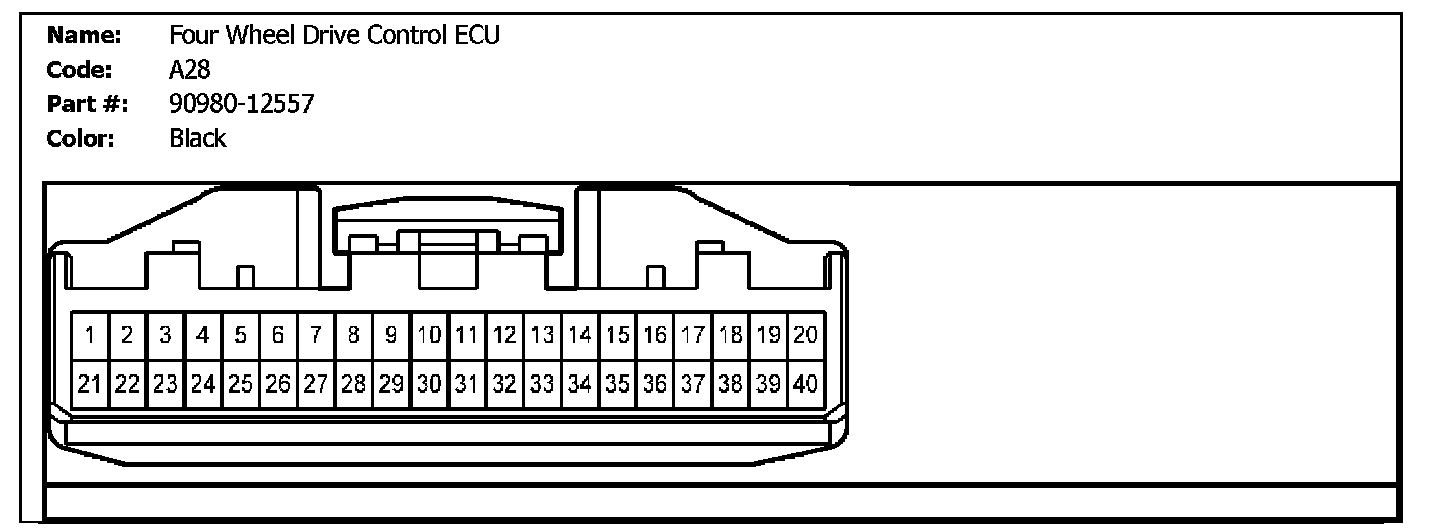

A2B (Four Wheel Drive Control ECU):

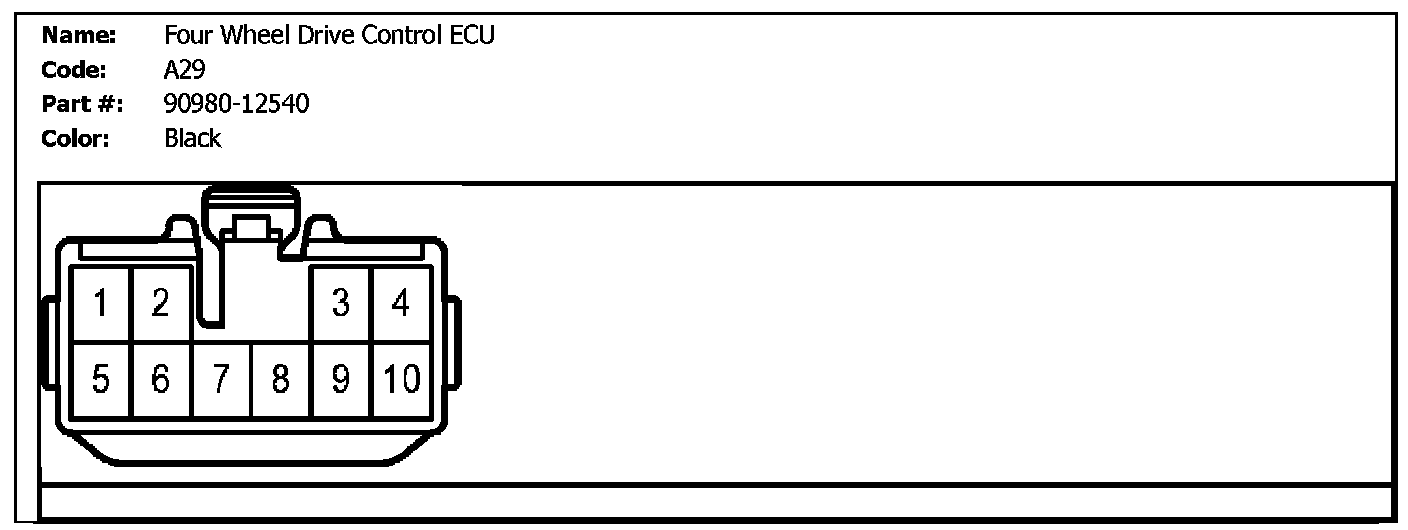

A29 (Four Wheel Drive Control ECU):
