Inspection

WINDOW / GLASS: POWER WINDOW REGULATOR MOTOR: INSPECTION

INSPECTION

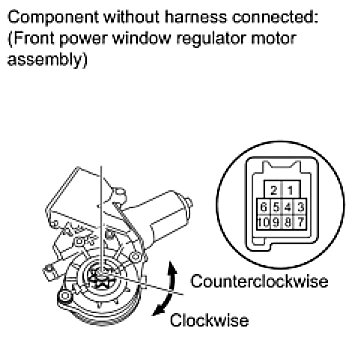

1. INSPECT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH






(a) Check the operation of the regulator motor.
- Do not apply voltage to any terminals of the motor, except terminal 2, to avoid damaging the pulse sensor inside the motor.
- Reset the power window regulator motor (initialize the pulse sensor) after installing the power window regulator motor and regulator assembly onto the door Initialization.

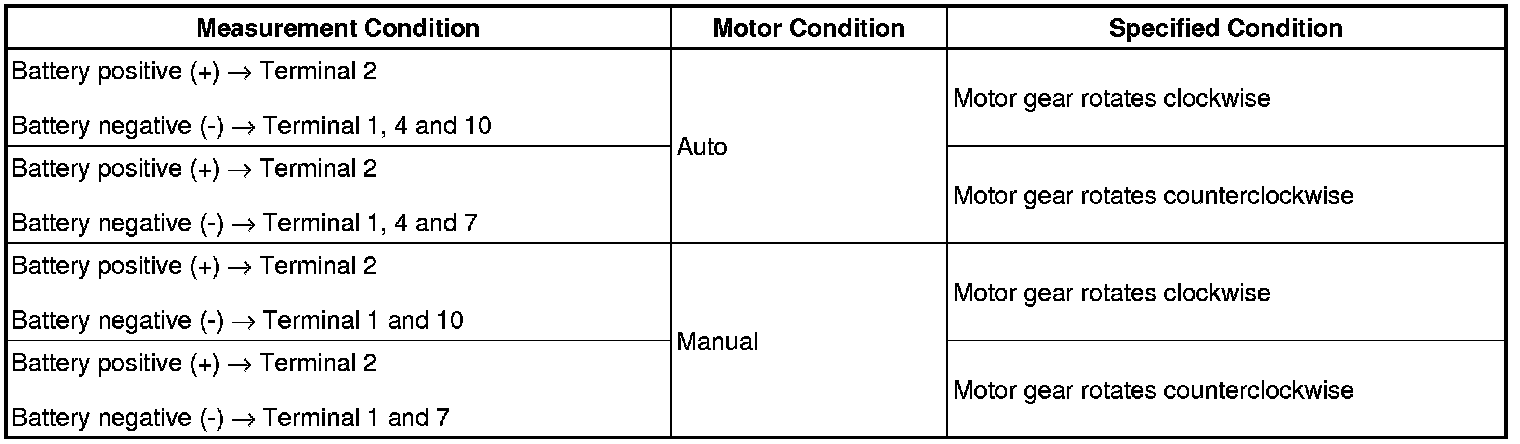

(1) Apply battery voltage to the regulator motor and check the operation of the regulator motor.
OK:






If the result is not as specified, replace the power window regulator motor.

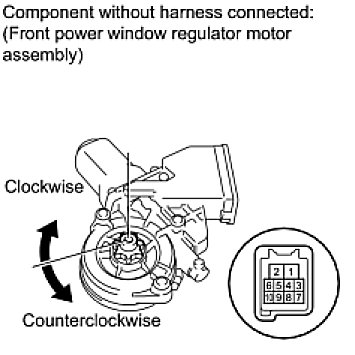

2. INSPECT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH






(a) Check the operation of the regulator motor.
- Do not apply voltage to any terminals of the motor, except terminal 2, to avoid damaging the pulse sensor inside the motor.
- Reset the power window regulator motor (initialize the pulse sensor) after installing the power window regulator motor and regulator assembly onto the door Initialization.
(1) Apply battery voltage to the regulator motor and check the operation of the regulator motor.
OK:






If the result is not as specified, replace the power window regulator motor.

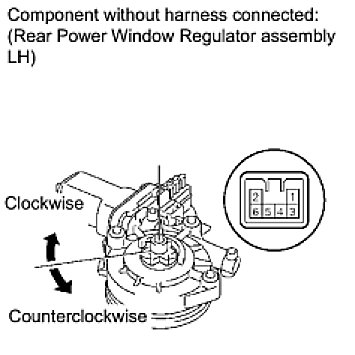

3. INSPECT REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH






(a) Check the operation of the regulator motor.

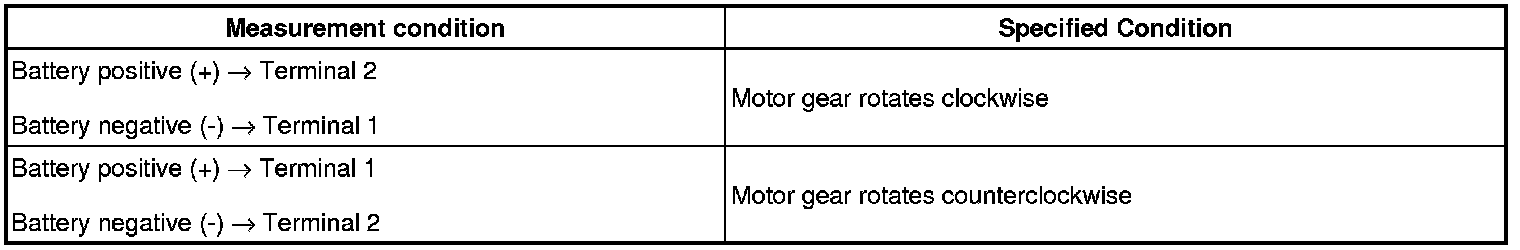

(1) Apply battery voltage to the regulator motor and check the operation of the regulator motor.
OK:






If the result is not as specified, replace the power window regulator motor.

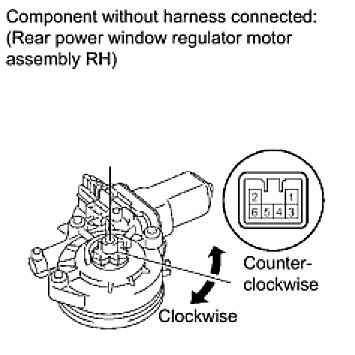

4. INSPECT REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH






(a) Check the operation of the regulator motor.
(1) Apply battery voltage to the regulator motor and check the operation of the regulator motor.
OK:






If the result is not as specified, replace the power window regulator motor.
