WINDOW / GLASS: BACK DOOR POWER WINDOW MOTOR: REMOVAL

REMOVAL

1. REMOVE BACK DOOR CENTER GARNISH Disassembly

2. REMOVE BACK DOOR SIDE GARNISH RH Disassembly

3. REMOVE BACK DOOR SIDE GARNISH LH Disassembly

4. REMOVE BACK DOOR STRAP COVER Disassembly

5. REMOVE BACK DOOR PULL STRAP Disassembly

6. REMOVE BACK DOOR TRIM BOARD ASSEMBLY Disassembly

7. REMOVE BACK DOOR SERVICE HOLE COVER Disassembly

8. REMOVE MULTIPLEX NETWORK BODY ECU (w/ Power Back Door) Disassembly

9. REMOVE NO. 2 BACK DOOR SERVICE HOLE COVER Disassembly

10. REMOVE REAR WIPER ARM HEAD CAP Removal

11. REMOVE REAR WIPER BLADE ASSEMBLY Removal

12. REMOVE REAR WIPER MOTOR ASSEMBLY Removal

13. REMOVE REAR WIPER MOTOR GROMMET Removal

14. REMOVE LINEAR WIPER STEP RH Disassembly

15. REMOVE BACK DOOR OUTSIDE MOULDING LH






(a) Disengage the 5 clips and remove the back door outside moulding.
16. REMOVE BACK DOOR OUTSIDE MOULDING RH
HINT: Use the same procedure as for the LH side.

17. REMOVE BACK DOOR GLASS OUTER WEATHERSTRIP ASSEMBLY

18. REMOVE BACK DOOR GLASS RUN Disassembly

19. REMOVE BACK DOOR GLASS Disassembly

20. REMOVE BACK DOOR POWER WINDOW REGULATOR ASSEMBLY Disassembly

21. REMOVE POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

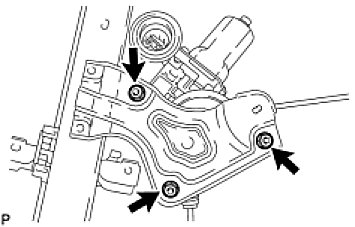

(a) Remove the 3 nuts and power window regulator motor.

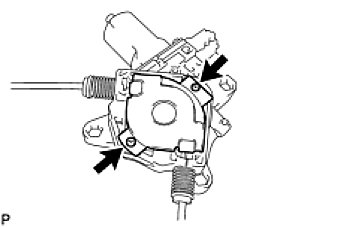

(b) Remove the 2 screws and power window regulator base plate.






(c) Using needle nose pliers, remove the drum and wire guide from the motor.
NOTE: Do not use a screwdriver, etc. when removing them.
