Home
>>
Toyota Truck
>>
2008
>>
Sequoia 2WD V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Description and Operation
>>
System Diagram
System Diagram
WINDOW / GLASS: POWER WINDOW CONTROL SYSTEM: SYSTEM DIAGRAM

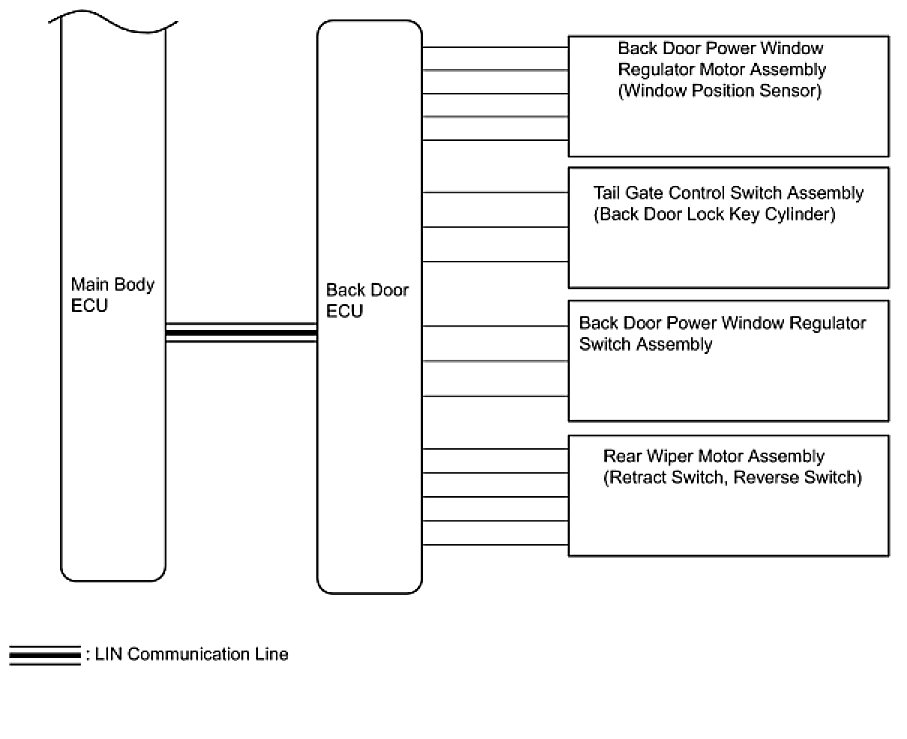

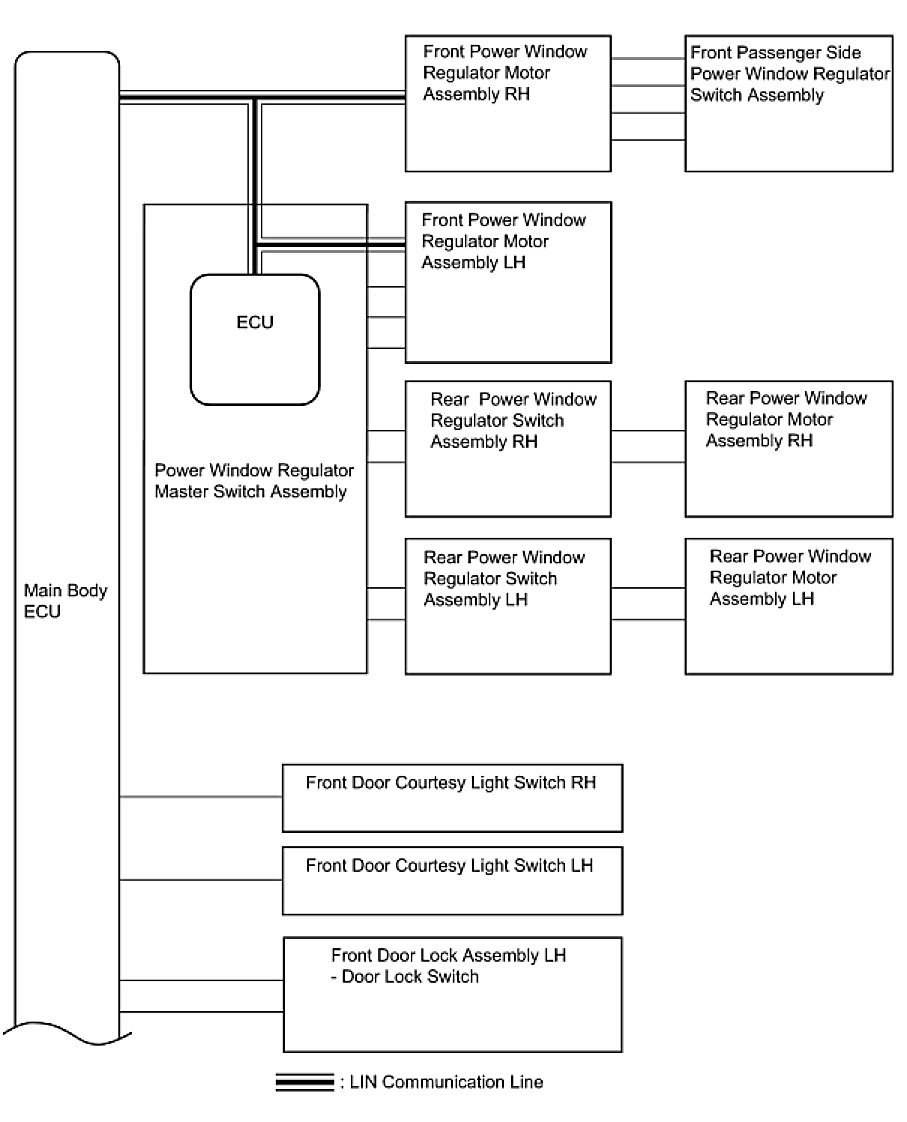

SYSTEM DIAGRAM

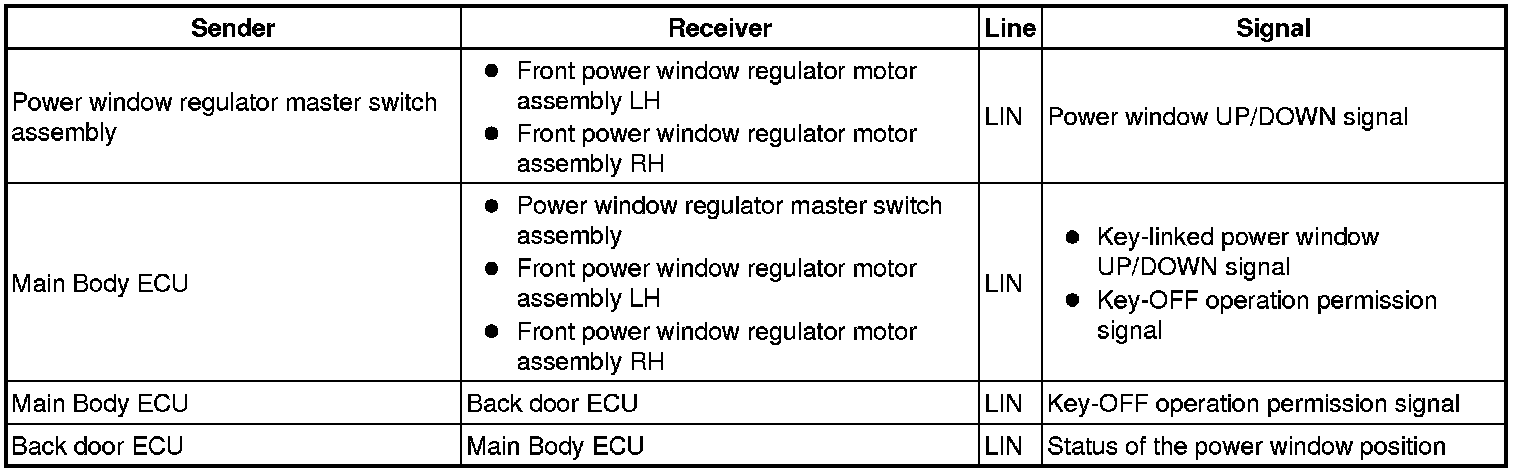

Communication Table
