Home
>>
Toyota Truck
>>
2008
>>
Sequoia 2WD V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Heated Glass Element
>>
Description and Operation
>>
Window Defogger System
>>
System Diagram
System Diagram

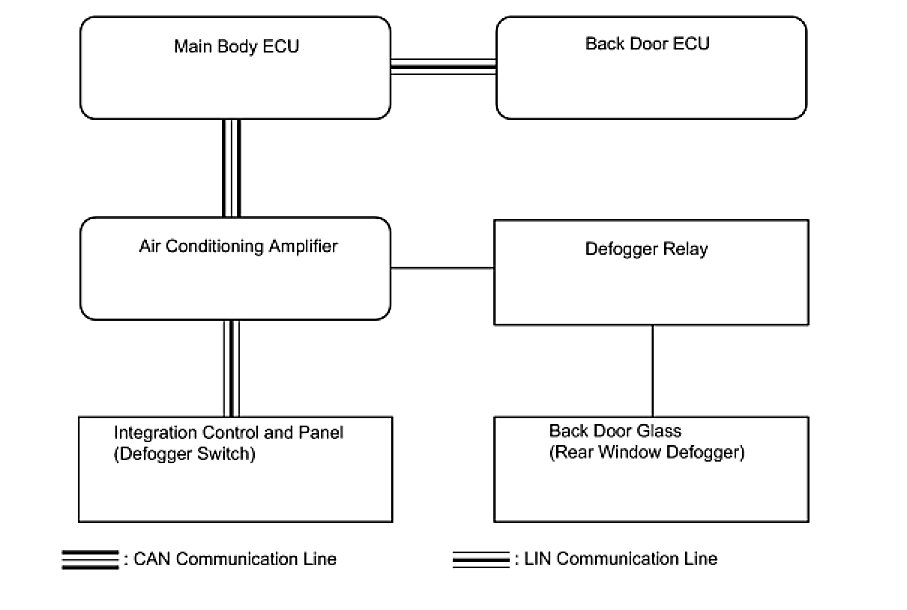

WINDOW / GLASS: WINDOW DEFOGGER SYSTEM: SYSTEM DIAGRAM
SYSTEM DIAGRAM

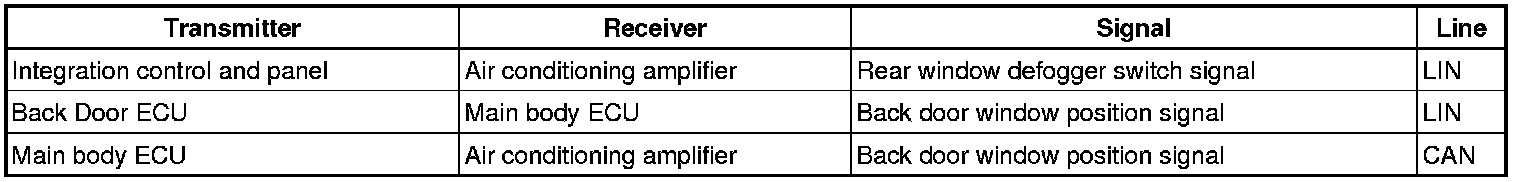

Communication table:
