Reassembly

A750E AUTOMATIC TRANSMISSION / TRANSAXLE: VALVE BODY ASSEMBLY: REASSEMBLY

REASSEMBLY

1. INSTALL SHIFT SOLENOID VALVE S2

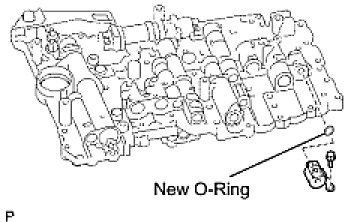

(a) Coat a new O-ring with ATF and install it to the solenoid valve.
(b) Install the solenoid valve with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)






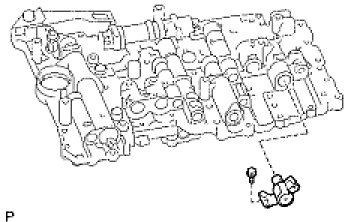

2. INSTALL SHIFT SOLENOID VALVE S1
(a) Install the solenoid valve with the bolt.
Torque: 6.4 Nm (65 kgf-cm, 57 in-lbf)






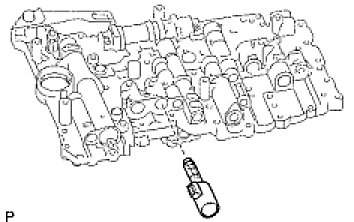

3. INSTALL SHIFT SOLENOID VALVE SL1
4. INSTALL SHIFT SOLENOID VALVE SLT






(a) Install the solenoid valve.
(b) Install the 2 straight pins and solenoid lock plate with the bolt.
Torque: 6.4 Nm (65 kgf-cm, 57 in-lbf)






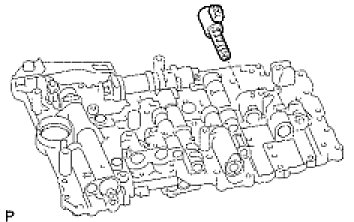

5. INSTALL SHIFT SOLENOID VALVE SL2
6. INSTALL SHIFT SOLENOID VALVE SLU






(a) Install the solenoid valve.

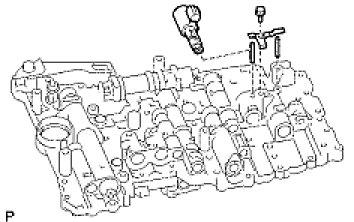

(b) Install 2 straight pins and solenoid lock plate with the bolt.
Torque: 6.4 Nm (65 kgf-cm, 57 in-lbf)

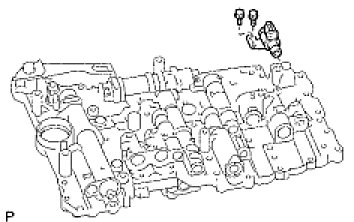

7. INSTALL SHIFT SOLENOID VALVE SR






(a) Install the solenoid valve with the 2 bolts.
Torque: 6.4 Nm (65 kgf-cm, 57 in-lbf)
