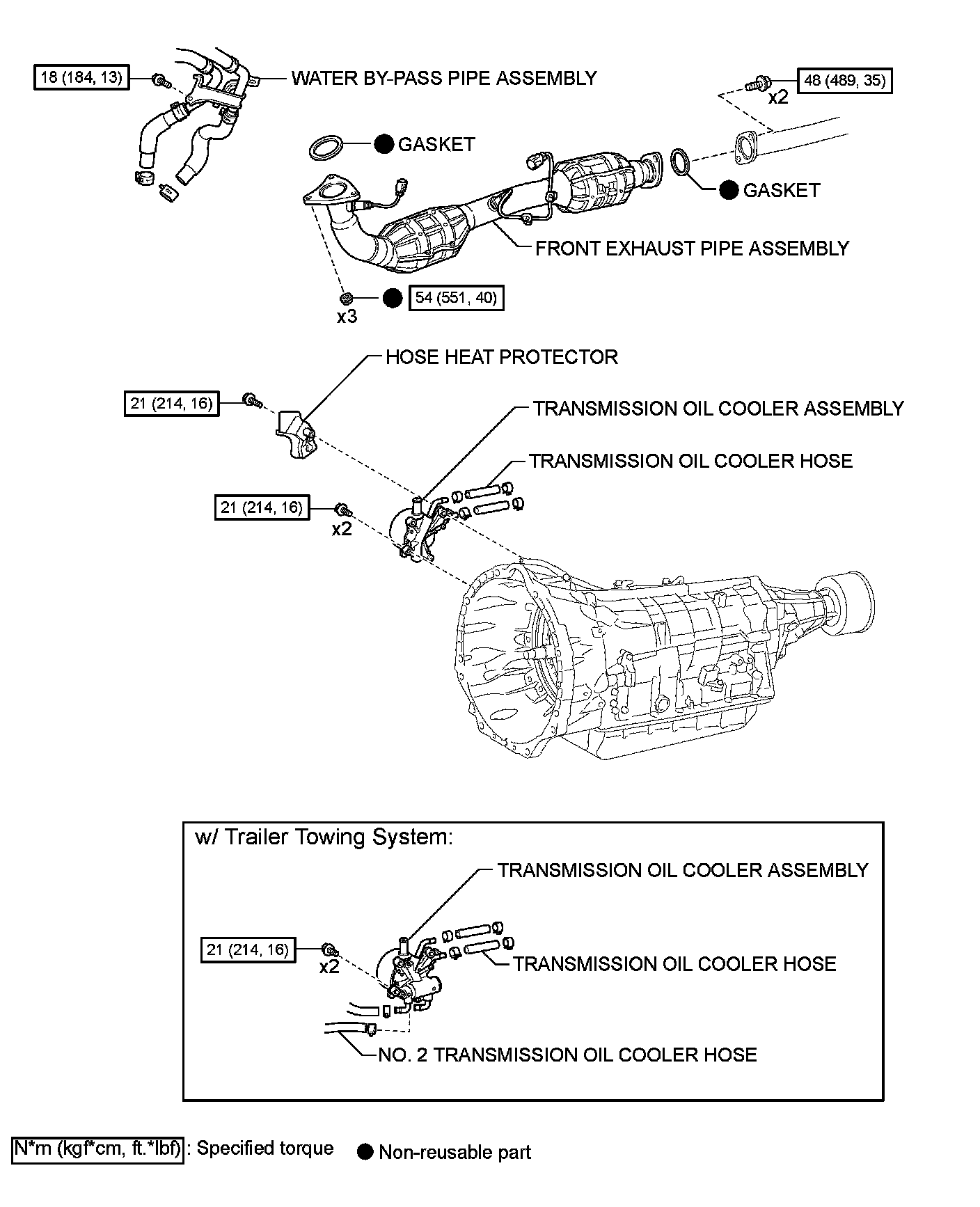

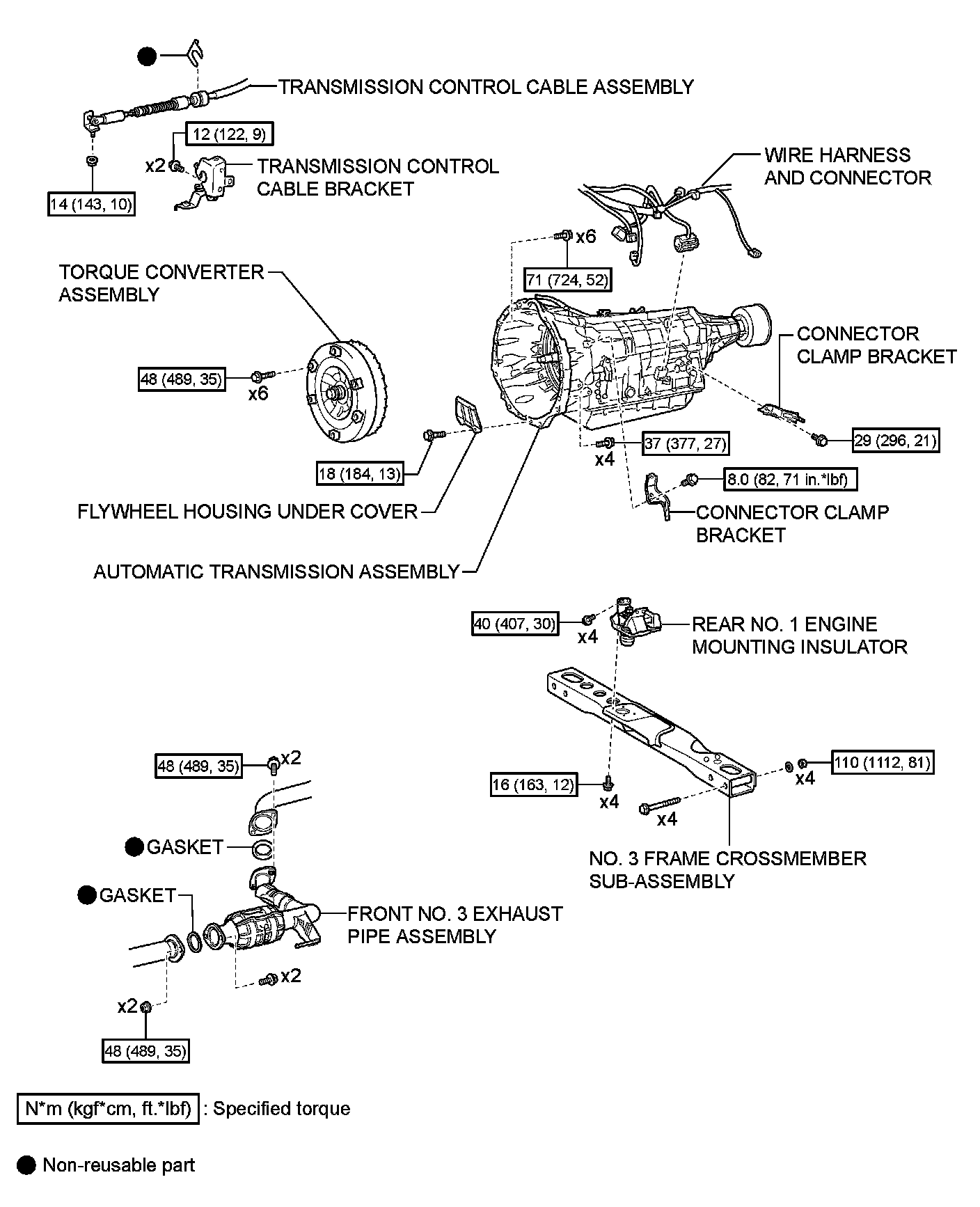

A750E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION ASSEMBLY: COMPONENTS
COMPONENTS
ILLUSTRATION
