Charging System: Description and Operation
2UZ-FE BATTERY / CHARGING:
CHARGING SYSTEM

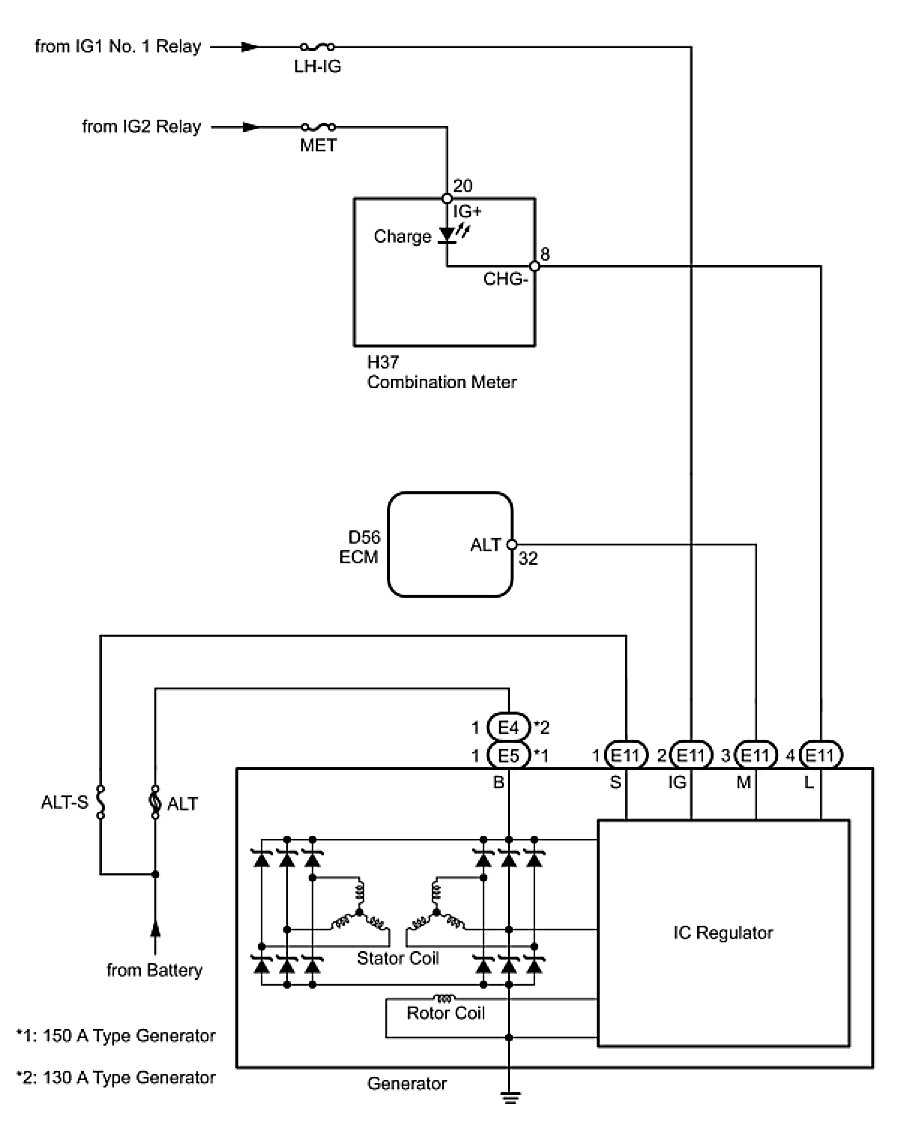

: SYSTEM DIAGRAM
SYSTEM DIAGRAM
