Service Data








SPECIFICATIONS: DRIVE SHAFT / PROPELLER SHAFT: SERVICE DATA

SERVICE DATA

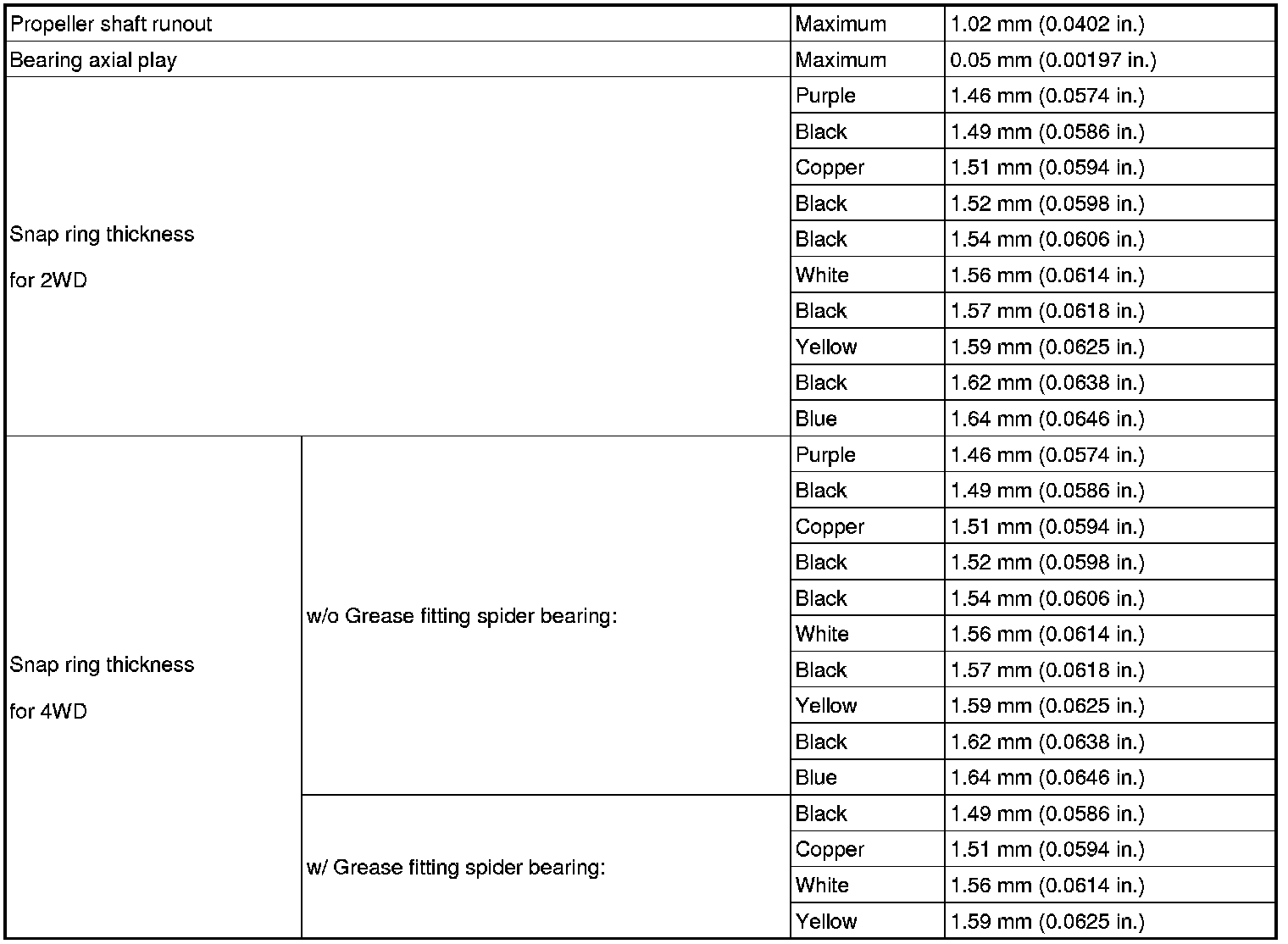

Front Drive Shaft





Rear Drive Shaft

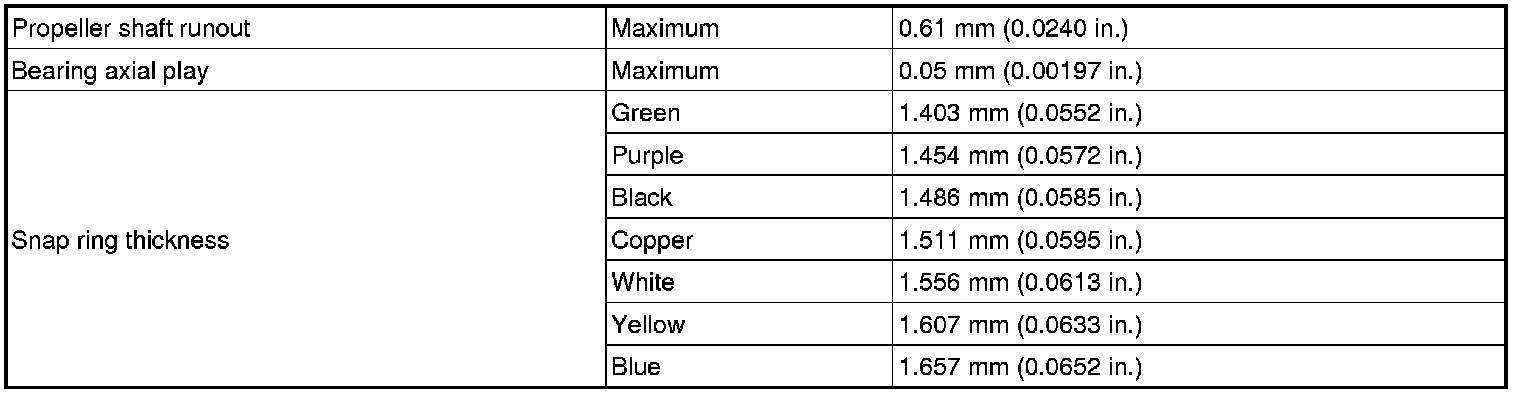

Front Propeller Shaft





Rear Propeller Shaft
