Wiper Relay: Testing and Inspection

WIPER / WASHER: RELAY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT HEADLIGHT CLEANER CONTROL RELAY

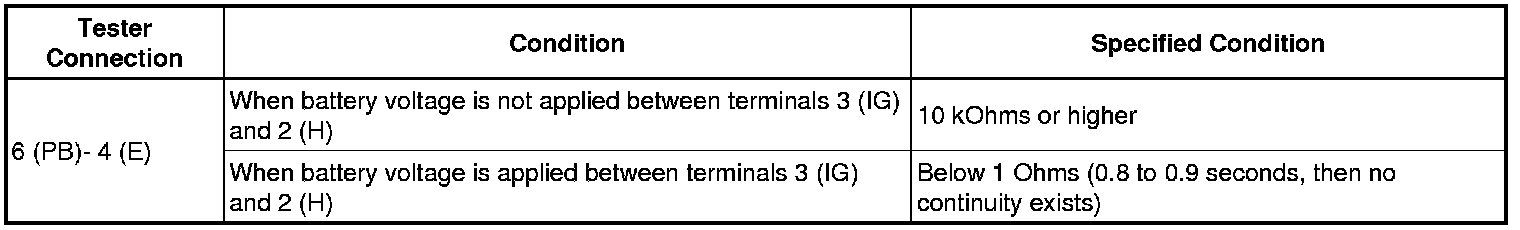

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the headlight cleaner control relay.
