Removal

PARK ASSIST / MONITORING: CLEARANCE WARNING ECU: REMOVAL

REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE RH Removal

2. REMOVE COWL SIDE TRIM BOARD RH Removal

3. REMOVE INSTRUMENT SIDE PANEL RH Removal

4. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal

5. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY RH Removal

6. REMOVE NO. 1 ECU INTEGRATION BRACKET

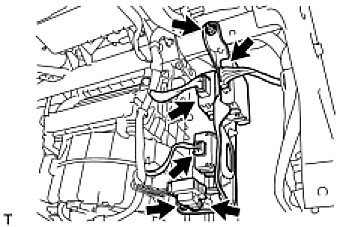

(a) Disconnect the 3 connectors and harness clamp.
(b) Remove the bolt, nut and the No. 1 ECU integration bracket.
7. REMOVE CLEARANCE WARNING ECU ASSEMBLY

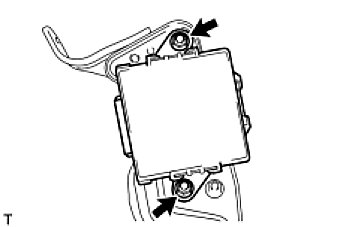

(a) Remove the 2 nuts and clearance warning ECU.
