Installation

2UZ-FE FUEL: FUEL PUMP ECU: INSTALLATION

INSTALLATION

1. INSTALL FUEL PUMP CONTROL ECU ASSEMBLY

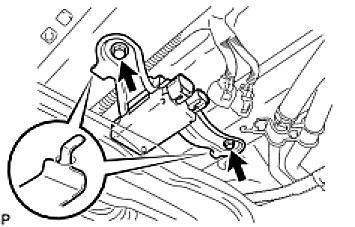

(a) Install the fuel pump control ECU assembly with the 2 nuts.
Torque: 20 Nm (199 kgf-cm, 14 ft-lbf)
NOTE: Do not use the fuel pump control ECU assembly if it has been subjected to physical shocks such as being dropped, etc.

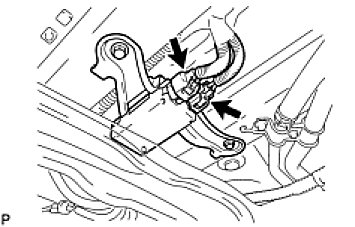

(b) Connect the 2 fuel pump control ECU connectors.
