Ignition System: Description and Operation
2UZ-FE ENGINE CONTROL:
IGNITION SYSTEM

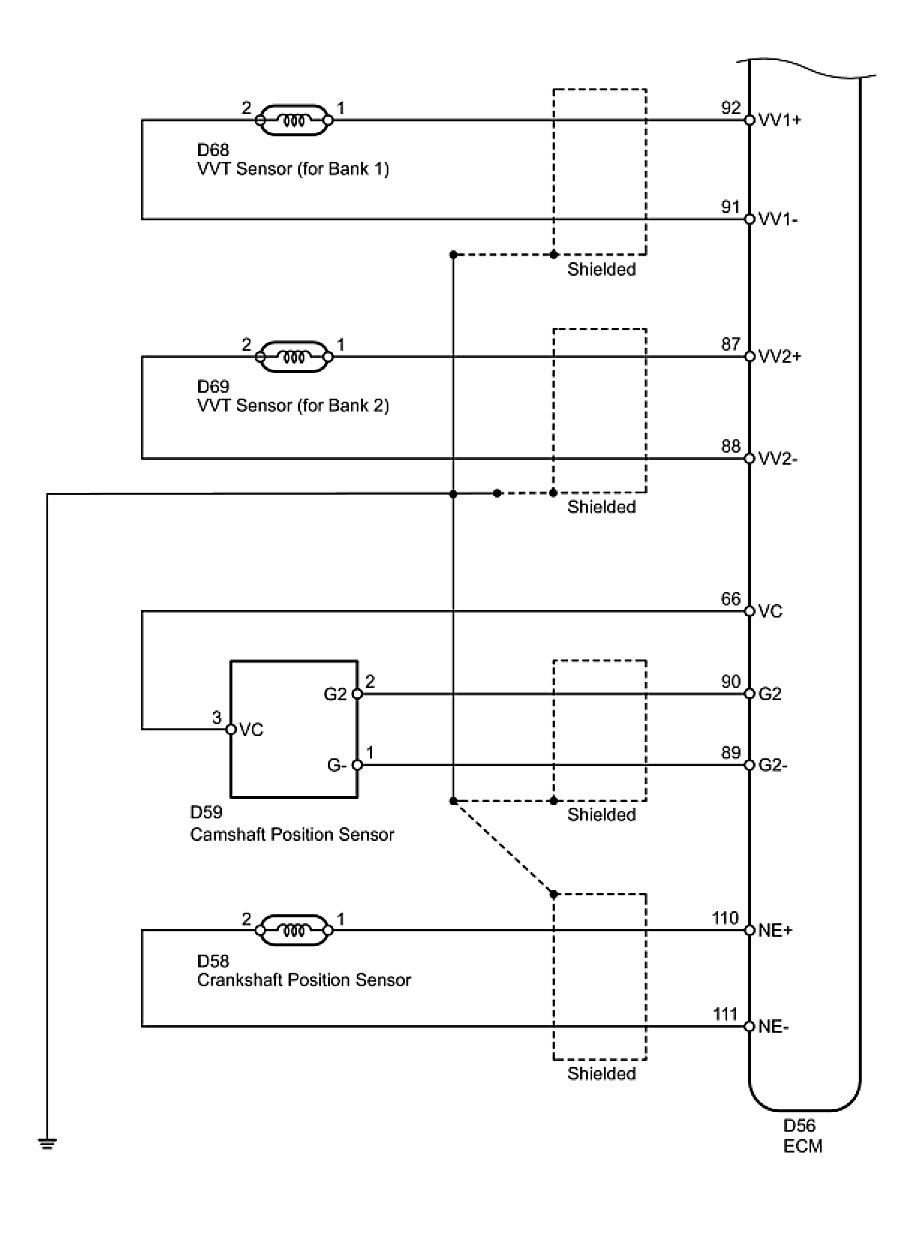

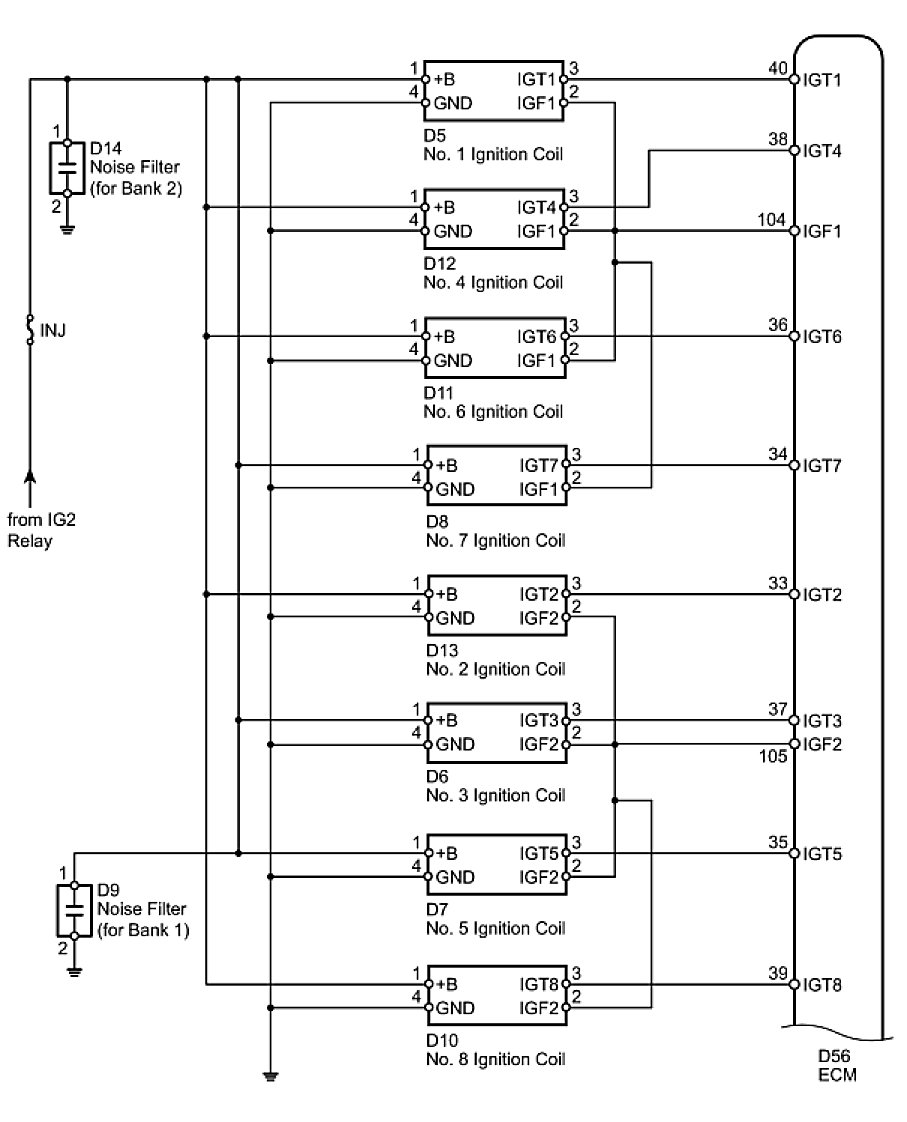

: SYSTEM DIAGRAM
SYSTEM DIAGRAM
