Installation

2UZ-FE EMISSION CONTROL: PURGE VALVE: INSTALLATION

INSTALLATION

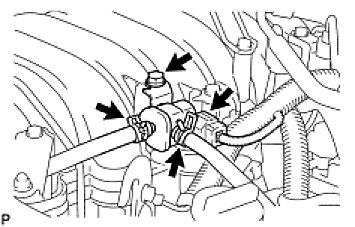

1. INSTALL PURGE VSV
(a) Install the purge VSV with the bolt.
Torque: 18 Nm (184 kgf-cm, 13 ft-lbf)
(b) Connect the 2 purge line hoses.
(c) Connect the purge VSV connector.
