Removal

2UZ-FE EMISSION CONTROL: AIR INJECTION DRIVER: REMOVAL

REMOVAL

1. REMOVE AIR INJECTION CONTROL DRIVER ASSEMBLY

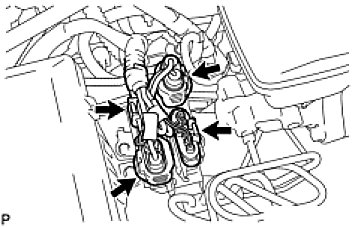

(a) Disconnect the 4 air injection control driver assembly connectors.

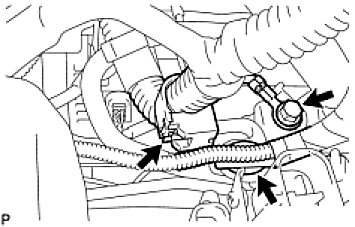

(b) Remove the bolt.
(c) Disconnect the 2 wire harness clamps.

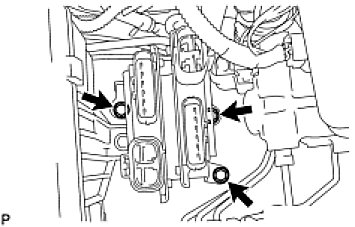

(d) Remove the 3 bolts and air injection control driver assembly.
