CAN Communication System
CAN Communication System

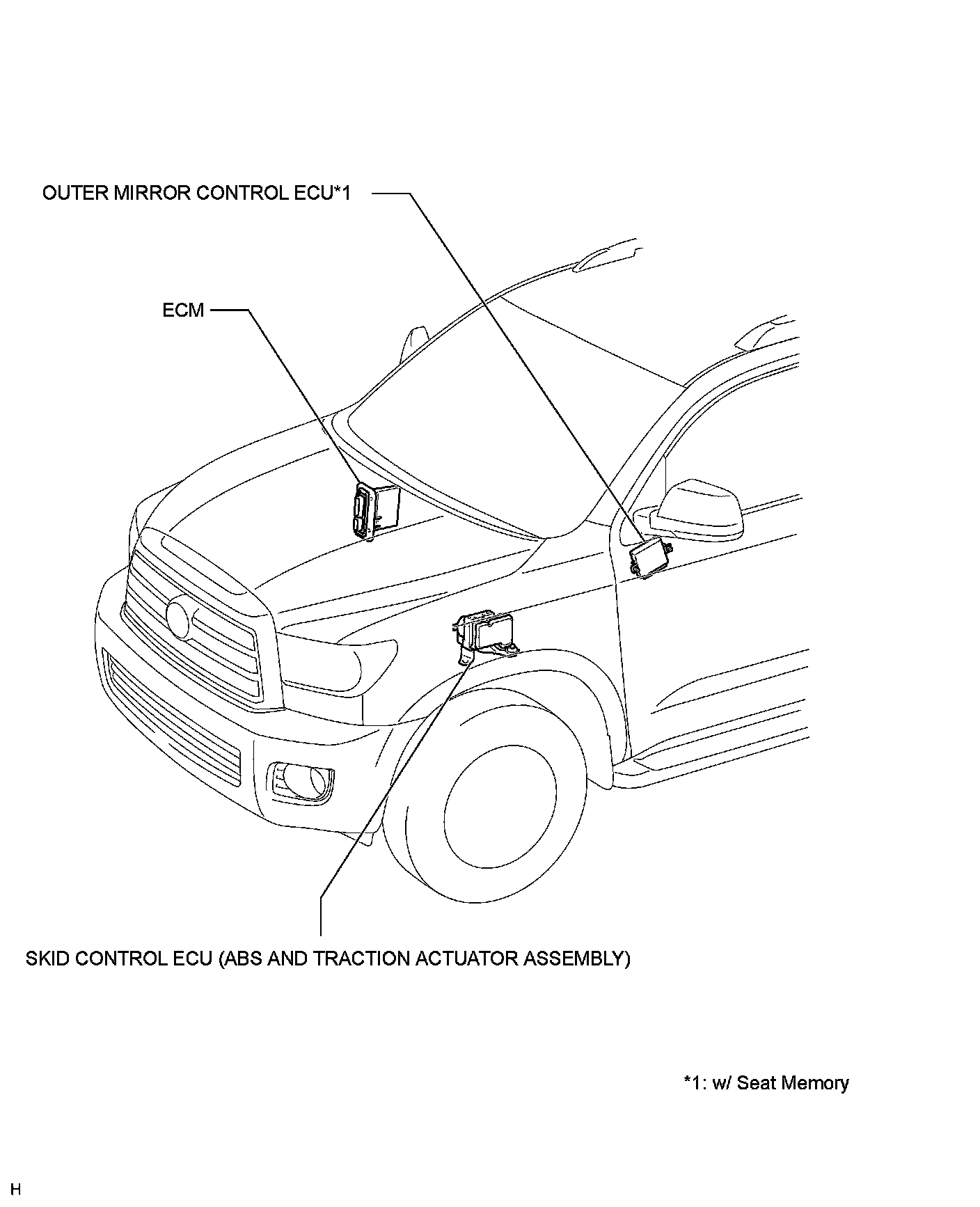

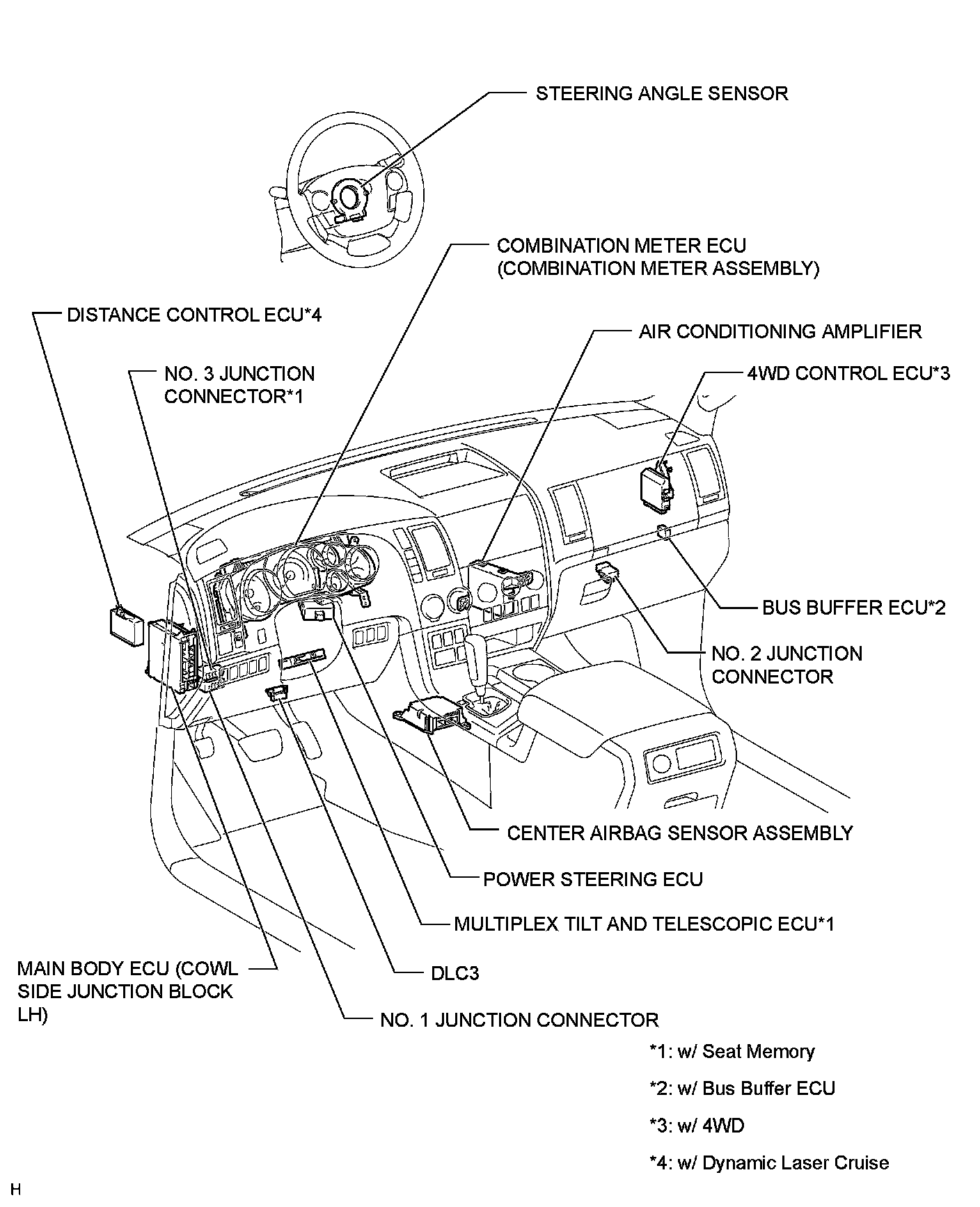

NETWORKING: CAN COMMUNICATION SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
