Removal

POWER OUTLETS (INT): REAR POWER OUTLET SOCKET: REMOVAL

REMOVAL

1. REMOVE NO. 2 DECK BOARD SUB-ASSEMBLY Removal

2. REMOVE LUGGAGE COMPARTMENT TRIM BOX Removal

3. REMOVE ROPE HOOK ASSEMBLY Removal

4. REMOVE NO. 1 DECK BOARD SUB-ASSEMBLY Removal

5. REMOVE DECK BOARD REINFORCEMENT SUB-ASSEMBLY Removal

6. REMOVE DECK BOARD BRACKET Removal

7. REMOVE REAR NO. 2 SEAT ASSEMBLY RH (for Manual Seat)
(a) Remove the rear No. 2 seat assembly RH Removal.
8. REMOVE REAR NO. 2 SEAT ASSEMBLY RH (for Power Seat)
(a) Remove the rear No. 2 seat assembly RH Removal.
9. REMOVE REAR SEAT CUSHION HINGE LOWER COVER RH Removal

10. REMOVE REAR FLOOR STEP NO. 1 COVER Removal

11. REMOVE REAR FLOOR STEP NO. 2 COVER Removal

12. REMOVE REAR DOOR SCUFF PLATE RH Removal

13. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH Removal

14. REMOVE ROPE HOOK ASSEMBLY Removal

15. REMOVE REAR FLOOR MAT SUPPORT PLATE Removal

16. REMOVE QUARTER TRIM PANEL ASSEMBLY RH Removal

17. REMOVE QUARTER TRIM PANEL ASSEMBLY RH (for Power Seat) Removal

18. REMOVE POWER OUTLET SOCKET ASSEMBLY

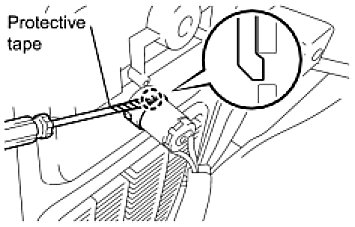

(a) Using a screwdriver with its tip wrapped in protective tape, disengage the claws and remove the power outlet socket assembly.
19. REMOVE POWER OUTLET SOCKET COVER






(a) Disengage the 2 claws and remove the power outlet socket cover.
