POWER OUTLETS (INT): POWER OUTLET SOCKET: REMOVAL

REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY Removal

2. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY Removal

3. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY Removal

4. REMOVE CENTER LOWER INSTRUMENT PANEL FINISH PANEL Removal

5. REMOVE POWER OUTLET SOCKET ASSEMBLY

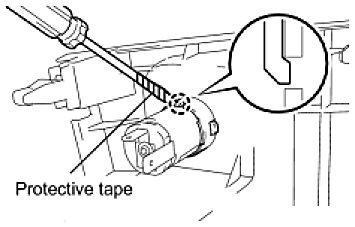

(a) Using a screwdriver with its tip wrapped in protective tape, disengage the claw and remove the power outlet socket assembly.
6. REMOVE POWER OUTLET SOCKET COVER






(a) Disengage the 2 claws and remove the power outlet socket cover.
