Toyota Truck
>>
2008
>>
Sequoia 2WD V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Service and Repair
>>
Components
Components

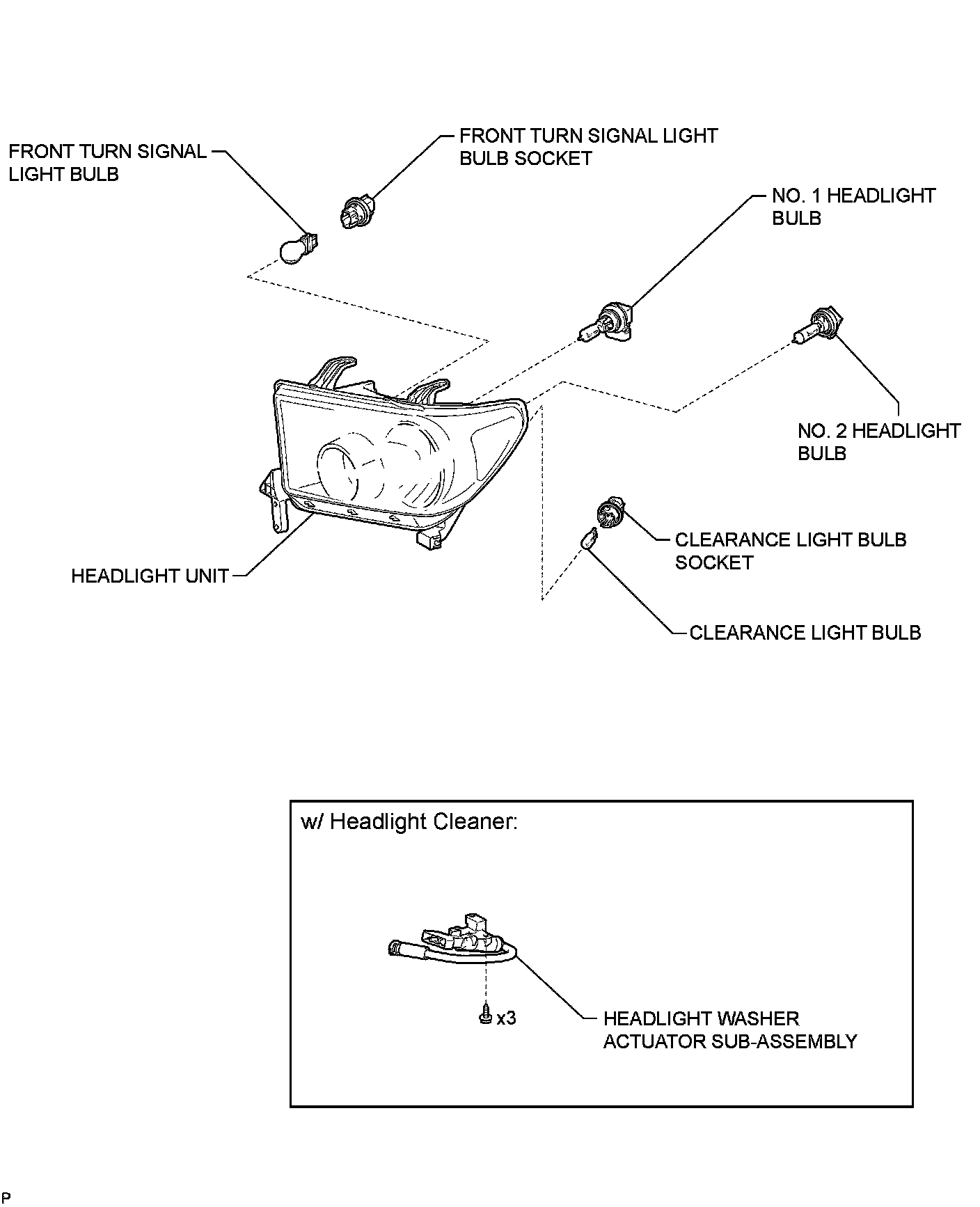

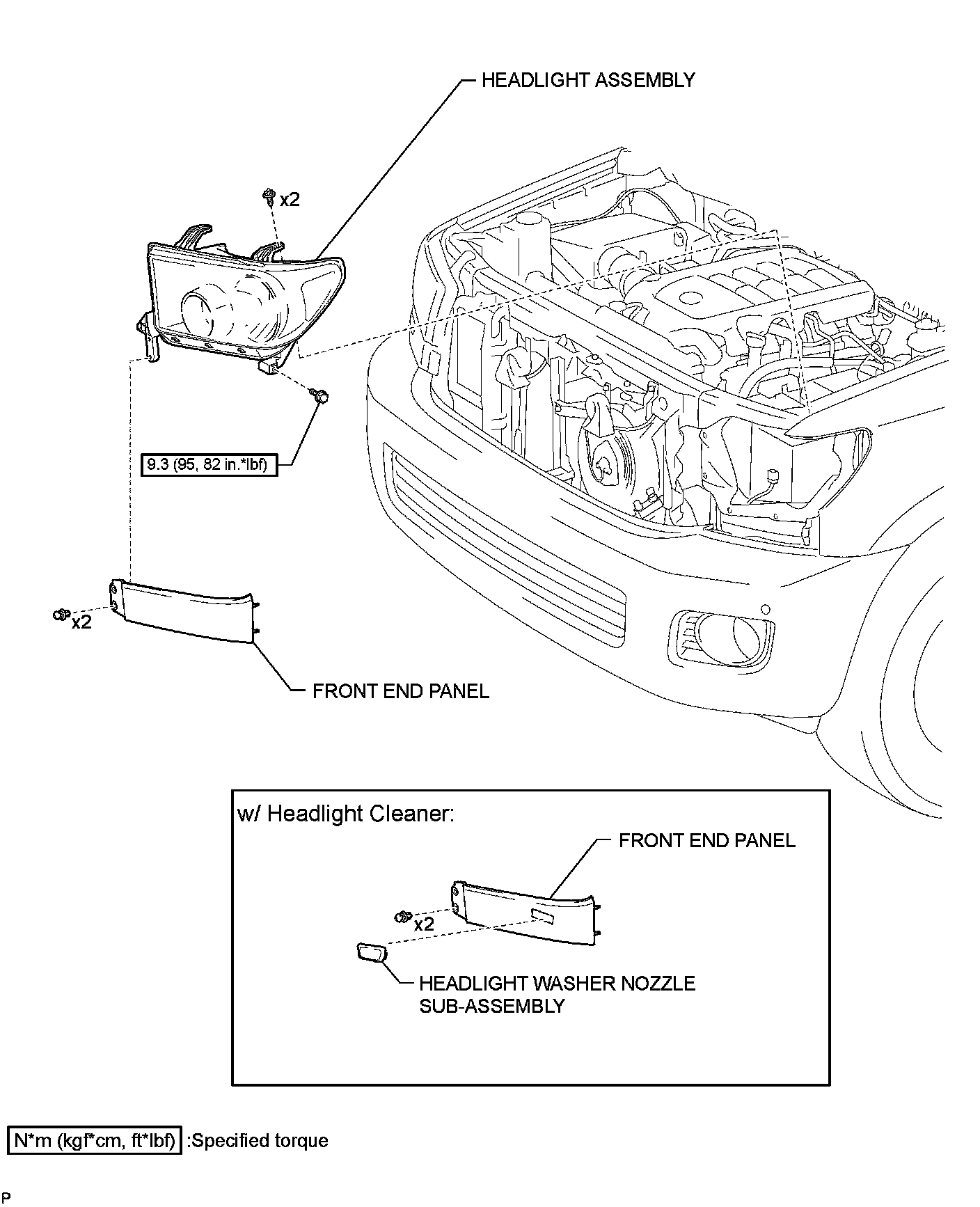

LIGHTING (EXT): HEADLIGHT ASSEMBLY: COMPONENTS
COMPONENTS
ILLUSTRATION
