Installation

LIGHTING (EXT): AUTOMATIC LIGHT CONTROL SENSOR: INSTALLATION

INSTALLATION

1. INSTALL AUTOMATIC LIGHT CONTROL SENSOR

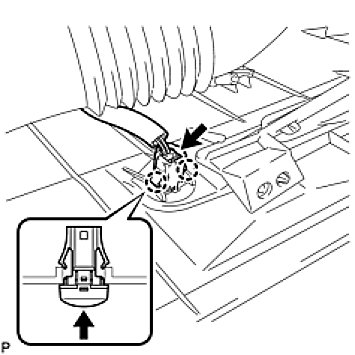

(a) Engage the 2 claws and install the automatic light control sensor.
(b) Connect the connector.
2. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY (for 8 Speakers)
(a) Install the instrument panel sub-assembly Installation.
3. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY (for 14 Speakers)
(a) Install the instrument panel sub-assembly Installation.
